Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer

Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
Class 5 Trailer Tow Hitch For 96-24 Chevy Express GMC Savana Van 1500 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer
0 reviews - Write a review
$314.86
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 45507 58102
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

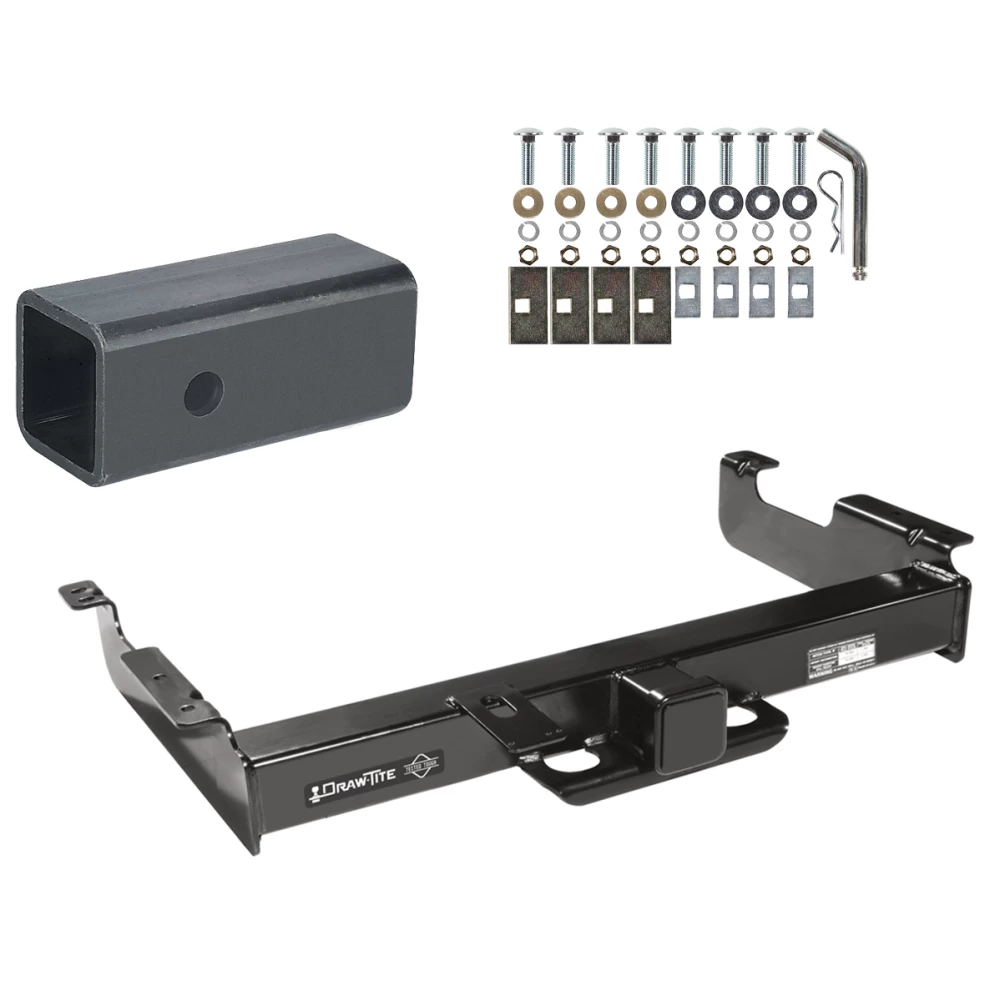

Includes Everything Pictured:
Custom Fit Trailer Hitch
2-1/2" to 2" Reducer Bushing
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1996 - 2014     Chevrolet, Express 1500, All Styles
1996 - 2024     Chevrolet, Express 2500, All Styles
1996 - 2024     Chevrolet, Express 3500, All Styles
1996 - 2014     GMC, Savana 1500, All Styles
1996 - 2024     GMC, Savana 2500, All Styles
1996 - 2024    GMC, Savana 3500, All Styles

Trailer Hitch Specs:
Part Number 45507
Brand Draw-Tite
Finish Black Powdercoat
Class 5
Receiver size opening 2-1/2"
Max gross trailer weight 12,000 lbs
Max GTW w/ weight distribution 14,000 lbs
Max Tongue Weight 1,200/1,700 lbs
Warranty Lifetime
Installation Instructions
Reducer Bushing Specs:
Reduces 2-1/2" Titan receiver opening to 2"
Allows hitch mounted accessories to be used with Titan receivers

Part Number 58102
Brand Draw-Tite
Finish Black Powdercoat
Receiver size opening Reduces 2-1/2" to 2"
Warranty 1 Year

Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 96 97 98 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024

Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 12,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 14,000 lbs.
Hitch Class V
Material Steel
Maximum Tongue Weight 1,200 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,700 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2.5 in.
Receiver Type Square Tube
