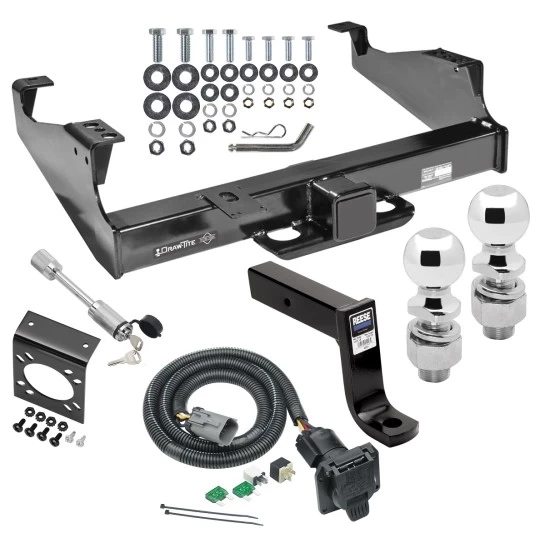

Class 5 Trailer Tow Hitch For 99-01 F-350 F-450 F-550 Super Duty Cab & Chassis w/ 7-Way Wiring 2-5/16" and 2" Balls 7-3/4" Drop Mount and Towing Lock and Bracket For Models w/ Factory 4-Flat
Model: 45516 118243 20212 45291 63836 63830 63252Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Electrical Mount Bracket
7-3/4" Drop Ball Mount
2-5/16" and 2" Chrome Ball
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
1999 - 2001 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
1999 - 2001 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
1999 - 2001 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames
Trailer Hitch Specs:
Wiring Kit Specs:
Part Number | 118243 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
7-Way Mounting Bracket
Part Number | 20212 |
Fits | 7 Flat Connectors |
Brand | Tow Ready |
Mounting Bracket for 7-Way Flat Pin Connectors, Includes Screws and Nuts
|
|
Warranty | 1 Year |
Ball Mount Specs:
Part Number | 45291 |
Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 10-1/2" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity in Rise Position | 13,000 lb Gross Towing Weight 1,300 lb Tongue Weight |
Drop | 7-3/4" From inside top of hitch opening |
Towing Capacity in Drop Position | 13,000 lb Gross Towing Weight 1,300 lb Tongue Weight |
Ball Hole Diameter | 1-1/4" |
Pin Hole Diameter | 5/8" |
Warranty | Limited Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip sold seperately)
Hitch Ball Specs:
Part Number | 63836 |
Brand | Draw-Tite |
Size | 2-5/16" x 1-1/4" x 2-3/4" |
Towing Capacity | 14,000 lbs. GTW |
Material | Chrome |
Torque | torgue to 450 ft. lbs |
Ball Hole Diameter | 1-1/4" |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63830 |
Brand | Draw-Tite |
Size | 2" x 1-1/4" x 2-3/4" |
Towing Capacity | 8,000 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 450 ft. lbs |
Ball Hole Diameter | 1-1/4" |
Warranty | Lifetime |
Dogbone Style Towing Lock Specs:
Part Number | 63252 |
Fits | 2-1/2" Receivers, 3-1/2" Span |
Brand | Draw-Tite |
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 1999 2000 2001
$598 12 $966.42 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$966.42 $598 12
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 45516 118243 20212 45291 63836 63830 63252
- Includes: Titan Class 5 Trailer Tow Hitch, Tow Custom Harness, Mounting Bracket, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock
Compatibility Chart
Year Range | Make | Model | Style |
---|
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | Yes |
Gross Towing Weight | 12,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 14,000 lbs. |
Hitch Class | V |
Material | Steel |
Maximum Tongue Weight | 1,200 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 1,700 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2.5 in. |
Receiver Type | Square Tube |
