Class 5 Trailer Tow Hitch For 99-24 F-350 F-450 F-550 Super Duty Cab & Chassis w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock

Class 5 Trailer Tow Hitch For 99‑24 F‑350 F‑450 F‑550 Super Duty Cab & Chassis w/ 1‑7/8" 2" 2‑5/16" Tri‑Tow‑Ball Mount and Towing Lock

Model: 45516 45325 63252

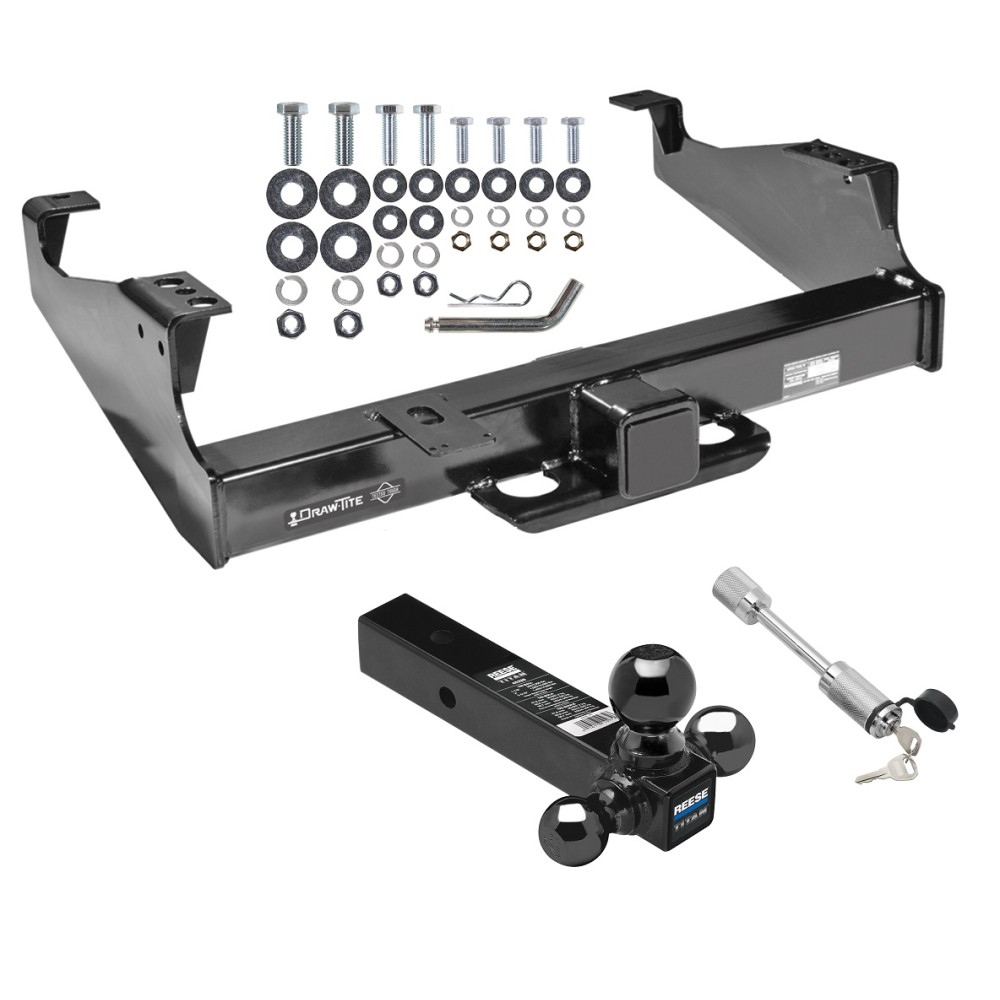

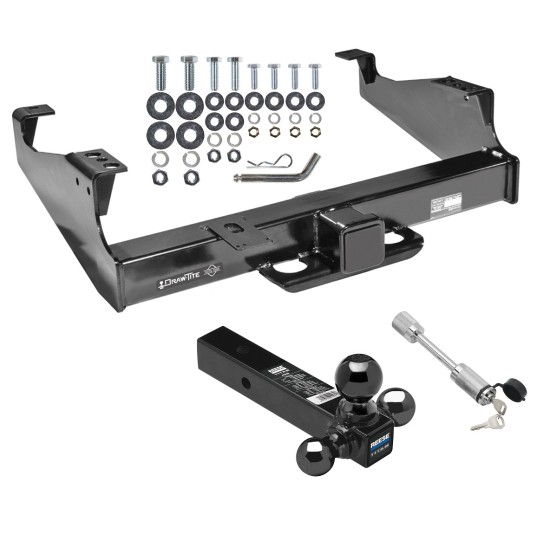

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions

This Hitch Fits The Following Vehicles:

1999 - 2000 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames
1999 - 2024 Ford, F-450 Super Duty, Cab & Chassis, w/34" Wide Frames
1999 - 2024 Ford, F-550 Super Duty, Cab & Chassis, w/34" Wide Frames

Trailer Hitch Specs:

Part Number	45516
Brand	Draw-Tite
Finish	Black Powdercoat
Class	5
Receiver size opening	2-1/2"
Max gross trailer weight	12,000 lbs
Max GTW w/ weight distribution	14,000 lbs
Max Tongue Weight	1,200/1,700 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	45325
Brand	Reese
Fits	2-1/2" x 2-1/2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8-3/4" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	10,000 Lb. capacity
2 5/16 In. ball	14,000 Lb. capacity
Warranty	Lifetime

Dogbone Style Towing Lock Specs:

Part Number	63252
Fits	2-1/2" Receivers, 3-1/2" Span
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024

See Full Description

$451 ⁴¹ $719.66 37% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$719.66 $451 ⁴¹

Pay in 4 interest-free installments of $112.75 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $112.75 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 45516 45325 63252
Includes: Titan Class 5 Trailer Tow Hitch, Titan Tri-Ball Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Lock

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	Yes
Gross Towing Weight	12,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	14,000 lbs.
Hitch Class	V
Material	Steel
Maximum Tongue Weight	1,200 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,700 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2.5 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	45516
Brand	Draw-Tite
Finish	Black Powdercoat
Class	5
Receiver size opening	2-1/2"
Max gross trailer weight	12,000 lbs
Max GTW w/ weight distribution	14,000 lbs
Max Tongue Weight	1,200/1,700 lbs
Warranty	Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:

Part Number	45325
Brand	Reese
Fits	2-1/2" x 2-1/2" Trailer Hitch Receiver
Finish	Black Powdercoat Balls and hook are chromed
Length	8-3/4" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball	2,000 Lb. capacity
2 In. ball	10,000 Lb. capacity
2 5/16 In. ball	14,000 Lb. capacity
Warranty	Lifetime

Dogbone Style Towing Lock Specs:

Part Number	63252
Fits	2-1/2" Receivers, 3-1/2" Span
Brand	Draw-Tite
Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap
Warranty	1 Year

Questions or Comments? Call 702-374-8999

Tags: 45516 , 45325 , 63252 , Draw-Tite , Trailer , Tow , Hitch , 99-24 , F-350 , F-450 , F-550 , Super , Duty , Cab , & , Chassis , 1-7/8" , 2" , 2-5/16" , Tri-Tow-Ball , Mount , and , Towing , Lock , 99 , 00 , 01 , 02 , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 10 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , 18 , 19 , 20 , 21 , 22 , 23 , 24 , 1999 , 2000 , 2001 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009 , 2010 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023 , 2024

Get Expert Help

Class 5 Trailer Tow Hitch For 99-24 F-350 F-450 F-550 Super Duty Cab & Chassis w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock Install Notes

Installation Instructions for Ford F350/450/550

Part Numbers:

45516
45716

Tools Required:

Drill Bits: 1/2", 5/8", 3/4"
Wrenches/Sockets: 15/16", 1-1/8"
Ratchet
Torque Wrench
Clamps

Specifications:

Weight Carrying Capacity: 12,000 lbs (5,443 kg) trailer weight, 1,200 lbs (544 kg) tongue weight.
Weight Distributing Capacity: 14,000 lbs (6,350 kg) trailer weight, 1,700 lbs (771 kg) tongue weight.

Step-by-Step Instructions:

Clamp Hitch into Position:
- Raise the hitch into position, aligning rivet clearance holes in the bracket with rivet heads in the bottom of the frame.
- Ensure the hitch is flat against the frame and clamp it securely.
Drill Rear Attachment Holes:
- Use the hitch as a template to drill two 3/4" holes in the frame (one per side).
Install 3/4" Fasteners:
- Loosely install 3/4" hex bolts, flat washers, lock washers, and hex nuts through the frame and hitch.
Drill Forward Attachment Holes:
- Use the hitch as a template to drill two 5/8" holes in the frame (one per side).
Install 5/8" Fasteners:
- Loosely install 5/8" hex bolts, flat washers, lock washers, and hex nuts through the frame and hitch.
Tighten Fasteners:
- Tighten all 5/8"-11 Grade 5 fasteners to 110 lb-ft (136 N*m).
- Tighten all 3/4"-10 Grade 5 fasteners to 200 lb-ft (271 N*m).
Drill Side Attachment Holes:
- Use the hitch as a template to drill four 1/2" holes into the plates extending below the frame.
Install 1/2" Fasteners:
- Loosely install 1/2" hex bolts, flat washers, lock washers, and hex nuts through the frame plates and hitch.
- Tighten all 1/2"-13 Grade 5 fasteners to 70 lb-ft (95 N*m).

Hardware List:

(4) Hex Bolt 1/2"-13 x 1.50" Grade 5
(4) Flat Washer 1/2"
(4) Lock Washer 1/2"
(4) Hex Nut 1/2"-13
(2) Hex Bolt 5/8"-11 x 2.00" Grade 5
(4) Flat Washer 5/8"
(2) Lock Washer 5/8"
(2) Hex Nut 5/8"-11
(2) Hex Bolt 3/4"-10 x 2.00" Grade 5
(4) Flat Washer 3/4"
(2) Lock Washer 3/4"
(2) Hex Nut 3/4"-10

Safety Notes:

Regularly inspect all fasteners and the hitch to ensure proper attachment.
Replace any damaged hitch or fasteners immediately.
Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
Always wear safety glasses when working beneath the vehicle.
Do not cut attachment holes with a torch.

Compliance:

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

Additional Notes:

Installation time for professional installers is approximately 60 minutes.
For detailed photo instructions, visit the manufacturer's website or scan the QR code provided in the manual.
