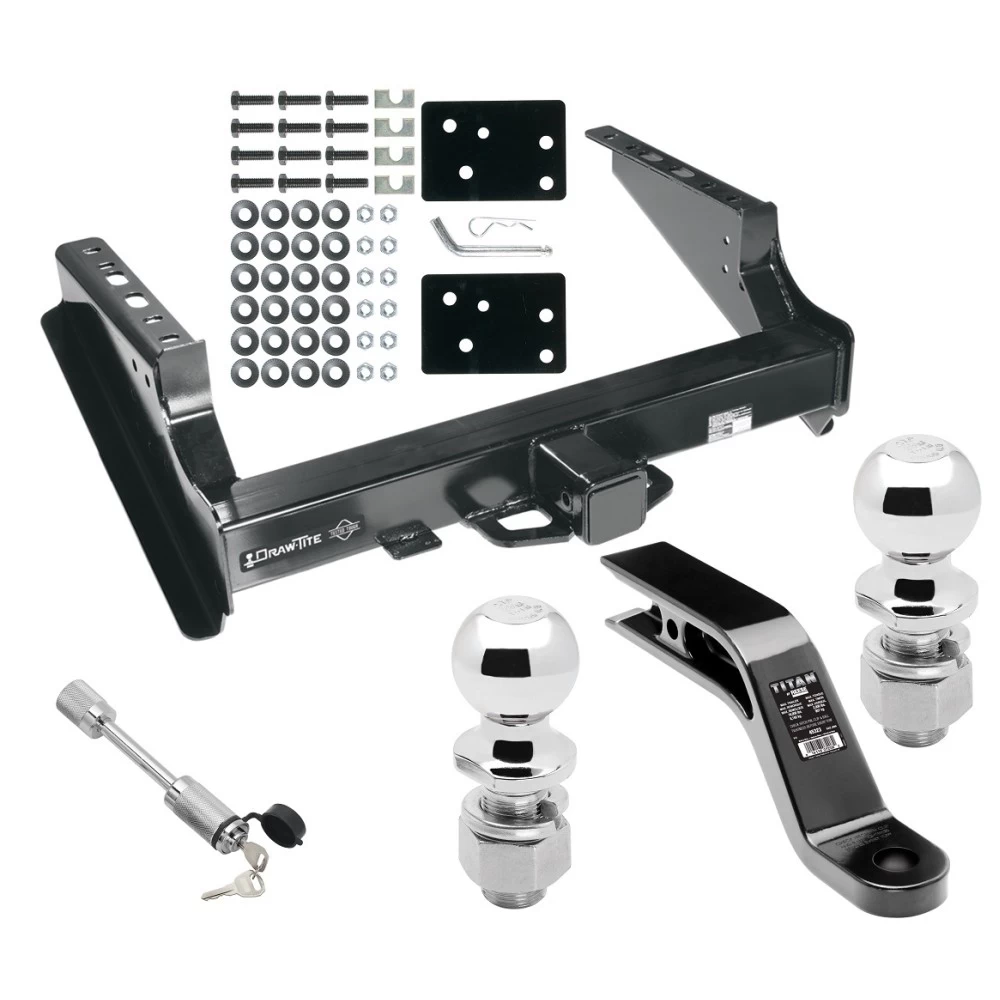

Class 5 Trailer Tow Hitch For 99-22 Ford F250 F350 08-22 F450 Super Duty Except Cab & Chassis w/ 2-5/16" and 2" Ball 10" Long 5" Drop Draw Bar and Towing Lock
- Stock: In Stock
- Brand: Draw-Tite
- Model: 45508 45323 63840 63830 63252
Verify Product Fitment
Custom Fit Trailer Hitch
5" Drop Ball Mount
2-5/16" and 2" Chrome Ball
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
1999 - 2022 Ford, F-250 Super Duty, Except Cab & Chassis
1999 - 2022 Ford, F-350 Super Duty, Except Cab & Chassis
2008 - 2022 Ford, F-450 Super Duty, Except Cab & Chassis
Trailer Hitch Specs:
| Part Number | 45508 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,000/2,500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Part Number | 45323 |
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 10" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 18,000 lb Gross Towing Weight 2,000 lb Tongue Weight |
| Drop | 5" From inside top of hitch opening |
| Towing Capacity in Drop Position | 18,000 lb Gross Towing Weight 2,000 lb Tongue Weight |
| Rise | 3-1/2" from top of inside of hitch opening |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Limited Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip sold seperately)
Hitch Ball Specs:
| Part Number | 63840 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 20,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63830 |
| Brand | Draw-Tite |
| Size | 2" x 1-1/4" x 2-3/4" |
| Towing Capacity | 8,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
Dogbone Style Towing Lock Specs:
| Part Number | 63252 |
| Fits | 2-1/2" Receivers, 3-1/2" Span |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
Compatibility Chart:
| Year Range | Make | Model | Style |
|---|
