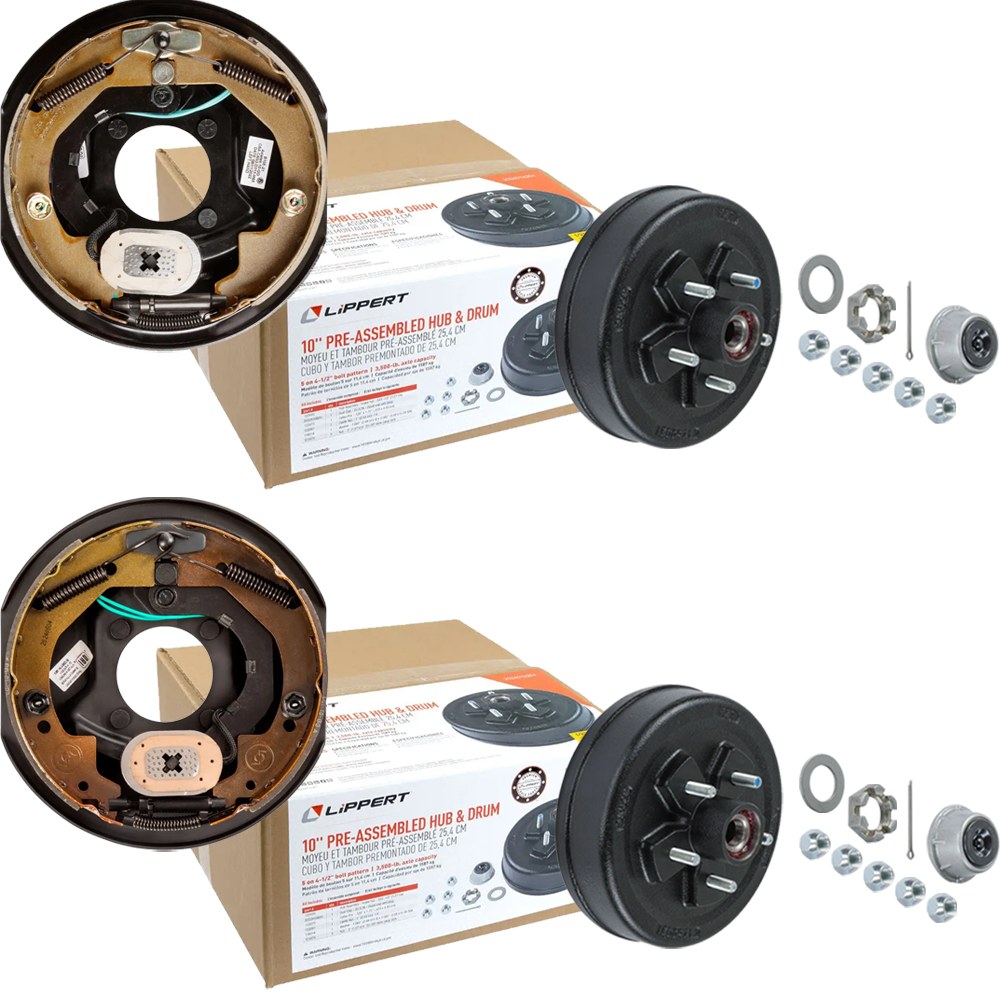

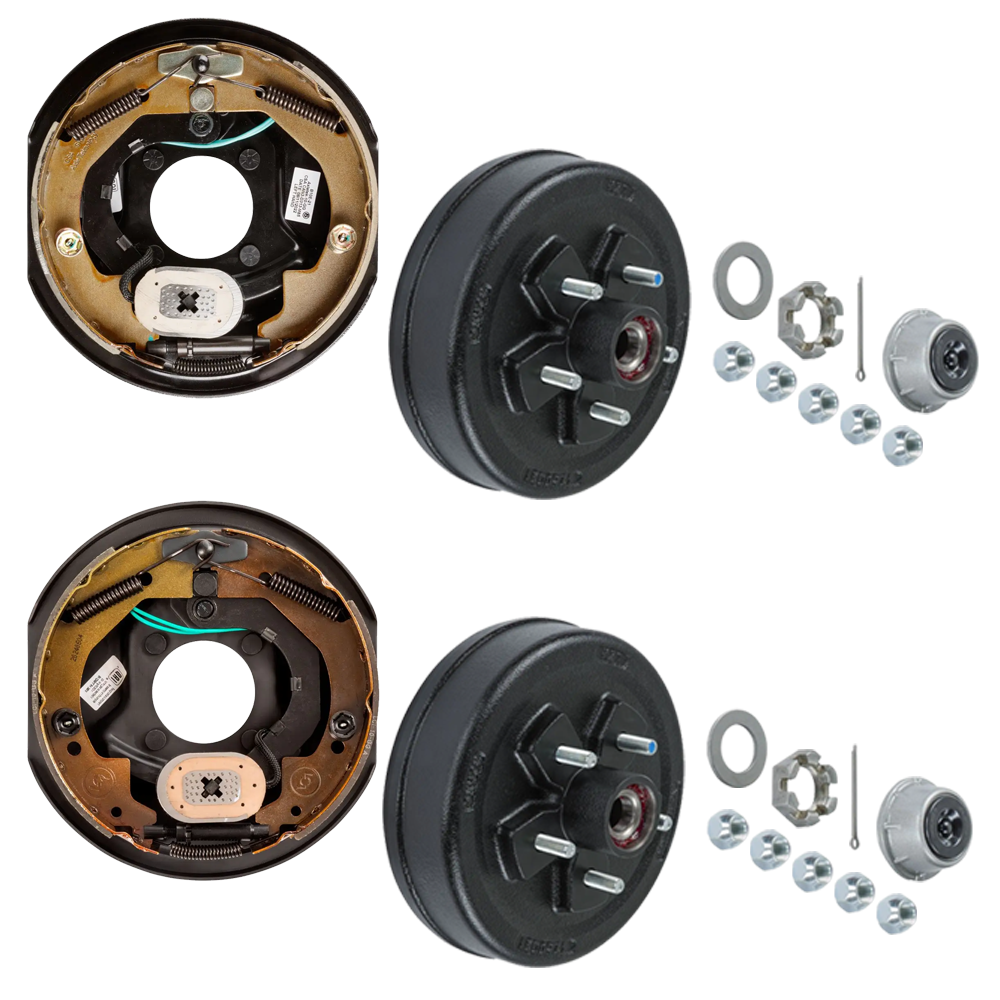

Complete Lippert 3,500-lb Hub & Electric Brake Assembly Pair (10” x 2-1/4”) – 5 on 4.5” Bolt Pattern (Left + Right)
Model: LP1HBAComplete Lippert 3,500-lb Hub & Electric Brake Assembly Pair
This convenient bundle provides everything you need for your 3,500-lb axle setup, including two pre-greased hub assemblies (with a total of two brake hub assemblies, two dust caps with plugs, two cotter pins, two castle spindle nuts, two round spindle washers, and ten lug nuts across both hubs) along with both left and right 10" x 2.25" Lippert electric brake assemblies. Benefit from reliable stopping power, easy installation, and high-quality components backed by Lippert’s longstanding reputation for excellence.
Bundle Contents:
- QTY (2): Complete Pre-Greased Hub Assembly with Lug Nuts – 3,500-lb. Axles, 1/2" Stud
- Each hub kit includes:
- (1) Brake hub assembly
- (1) Dust cap with plug
- (1) 1.75" cotter pin
- (1) 1" 6-slot castle spindle nut
- (1) Round spindle washer (1.03" ID, 1.68" OD)
- (5) 60° cone trailer lug nuts
- Altogether, for 2 hub kits, you receive (2) brake hub assemblies, (2) dust caps with plugs, (2) cotter pins, (2) castle nuts, (2) round spindle washers, and (10) lug nuts
- Pre-greased for a quicker, hassle-free install
- Universal application; compatible with competitor axles
- Built on Lippert’s decades-long reputation for quality
- Each hub kit includes:

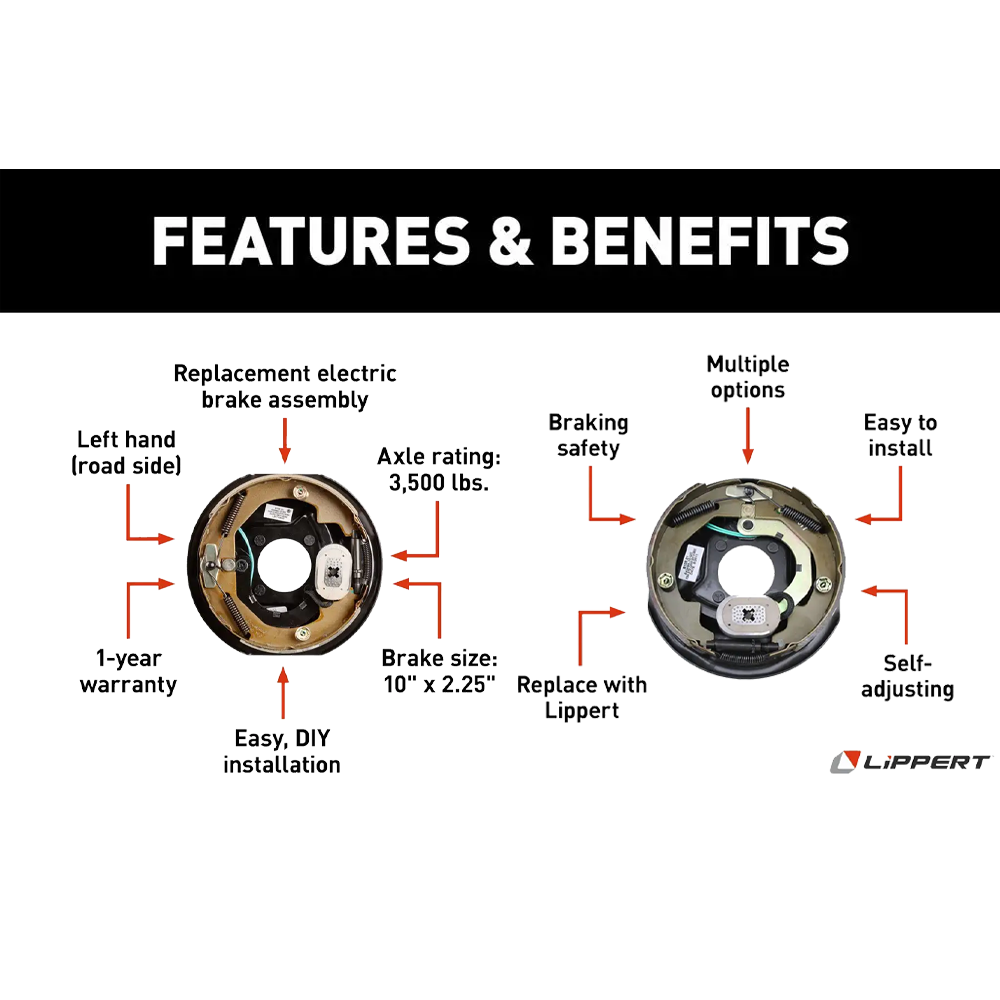

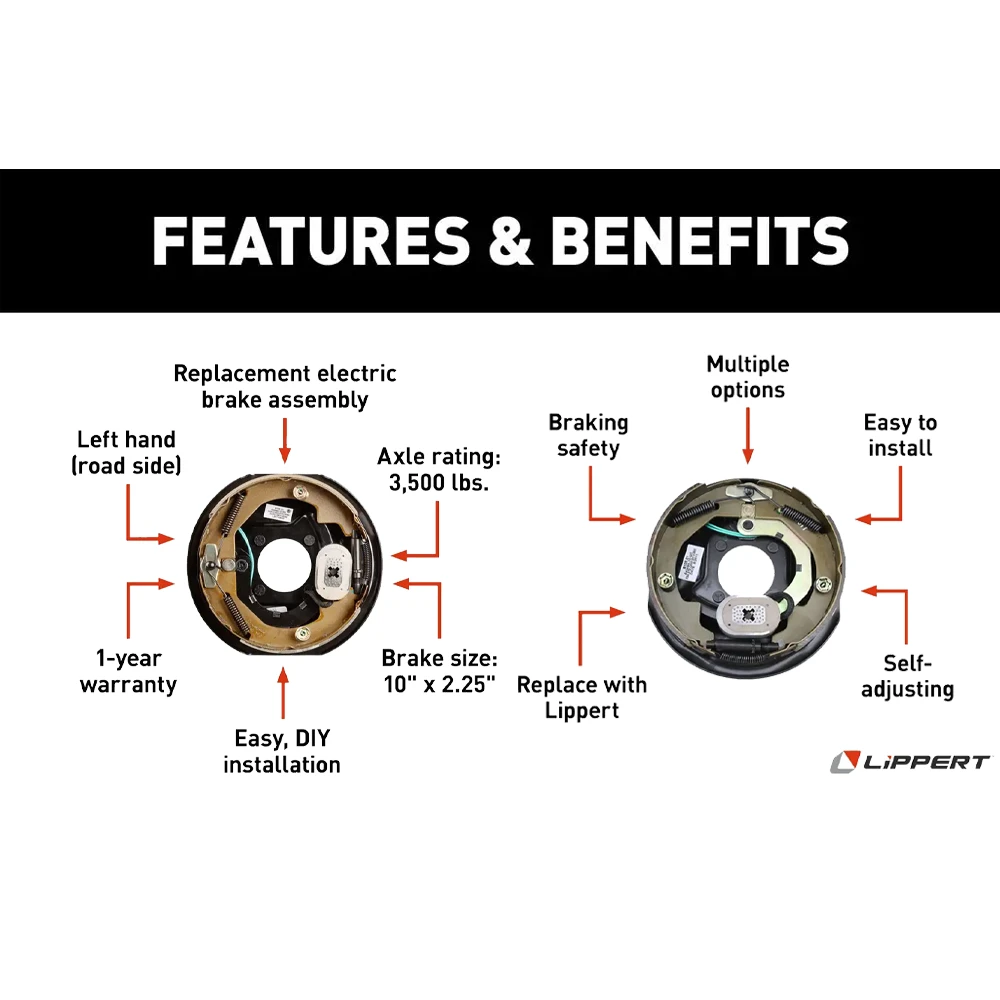

- QTY (1): Lippert Electric Brake Assembly – 10" x 2.25", 3,500 lbs. (Left)
- Genuine Lippert replacement assembly
- Left hand (road side)
- Manual adjust design for greater control
- Brake size: 10" x 2.25", axle rating: 3,500 lbs.
- 1-year warranty
- Dexter Compatible Part Number: K23-026-00|023-026-00
- QTY (1): Lippert Electric Brake Assembly – 10" x 2.25", 3,500 lbs. (Right)
- Genuine Lippert replacement assembly
- Right hand (curb side)
- Manual adjust design for greater control
- Brake size: 10" x 2.25", axle rating: 3,500 lbs.
- 1-year warranty
- Dexter Compatible Part Number: K23-027-00|023-027-00
Always verify compatibility with your trailer’s existing components. Regularly inspect and maintain your brakes and hubs to ensure safe, reliable towing. Worn-out parts can lead to axle failure and compromise overall performance.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Axle Capacity | 3,500 lbs |
| Drum Brake Type | Electric Drum Brake |
| Brake Drum Dimensions | 10" x 2.25" |
| Drum Bolt Pattern | 4-Bolt |
| Hub Bolt Pattern | 5 on 4.5" |
| Hub Type | Hub With Integrated Drum Assembly |
| Stud Size | 1/2" |
| Adjustment | Manual |
| Drum Location | Left & Right |
| Wheel Size Compatibility | 12", 13", 14", 14-1/2", 15" |
$279 99 $305.80 8% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$305.80 $279 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP1HBA
- Includes: Left Electric Brake Assembly, Right Electric Brake Assembly, Pre-Greased Hub Assembly (x2)
Description
