Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3

Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
Complete Tow Package For 13-17 Buick Enclave Chevy Traverse GMC Acadia w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver Class 3
$268.16
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 75528 118271 20212 23 63845

Applies to this product only

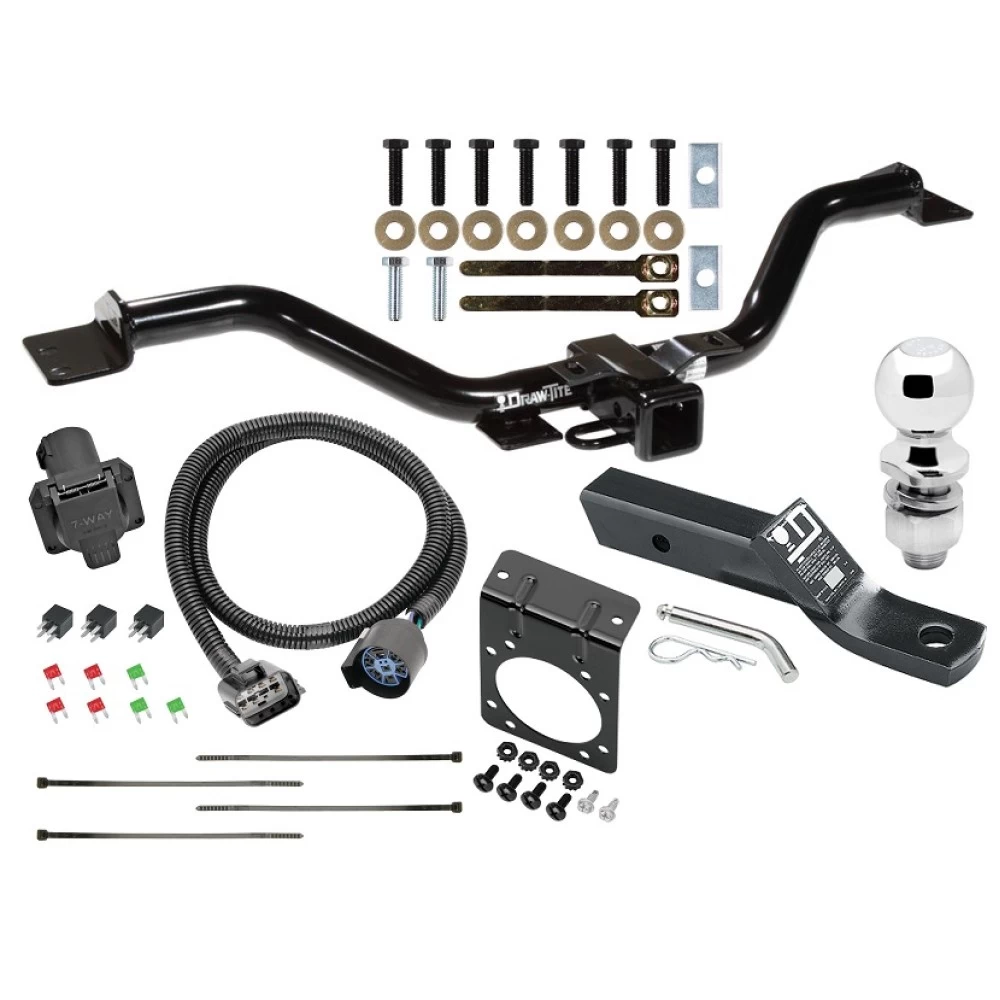

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tow Harness Wiring Package (7-Way)
2" Chrome Ball
2" Drop Ball-Mount w/ Pin/Clip

Mounting Bracket for 7-Way Connectors
Installation Hardware
Installation Instructions


Fits The Following Vehicles

2013 - 2017 Buick Enclave All Styles
2013 - 2016 GMC Acadia All Styles
2013 - 2017 Chevrolet Traverse All Styles
2018 - 2018 Chevrolet Traverse Limited All Styles

Trailer Hitch Specs:
Part Number 75528
Brand Draw-Tite
Finish Black Powdercoat
Class 3
Receiver size opening 2"
Max gross trailer weight 5,000 lbs
Max GTW w/ weight distribution 7,500 lbs
Max Tongue Weight 750/750 lbs
Warranty Lifetime
Installation Instructions



Wiring Kit Specs:
Part Number 118271
Brand Tekonsha
Warranty 1 Year
Installation Instructions

7-Way Mounting Bracket
Part Number 118138
Fits 7 Flat Connectors
Brand Tow Ready
Mounting Bracket for 7-Way Flat Pin Connectors, Includes Screws and Nuts
  • Includes screws and nuts
  • Mounts electrical connector to attachment bracket
Warranty 1 Year

Ball Mount Specs:
Fits 2" x 2" Trailer Hitch Receiver
Brand Draw-Tite
Finish Black Powdercoat
Length 9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity 7,500 lb Gross Towing Weight
750 lb Tongue Weight
Drop 2" From inside top of hitch opening
Rise 3/4" from top of inside of hitch opening
Warranty Lifetime

2" Hitch Ball Specs:



Part Number 63845
Brand Draw-Tite
Size 2" x 1" x 2-1/8"
Towing Capacity 7,500 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 250 ft. lbs
Ball Hole Diameter 1"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wide range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with with trailers that have electric brakes. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 13 14 15 16 17 18 2013 2014 2015 2016 2017 2018
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 7,500 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 750 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 750 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Round Tube
