Complete Tow Package For 15-20 Ford F-150 w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver
Complete Tow Package For 15-20 Ford F-150 w/ 7-Way RV Wiring Harness Kit 2" Ball and Mount Bracket 2" Receiver
$308.27
- Stock: Pre-Order
- Brand: Draw-Tite
- Model: 75938 118283 20212 23 63845

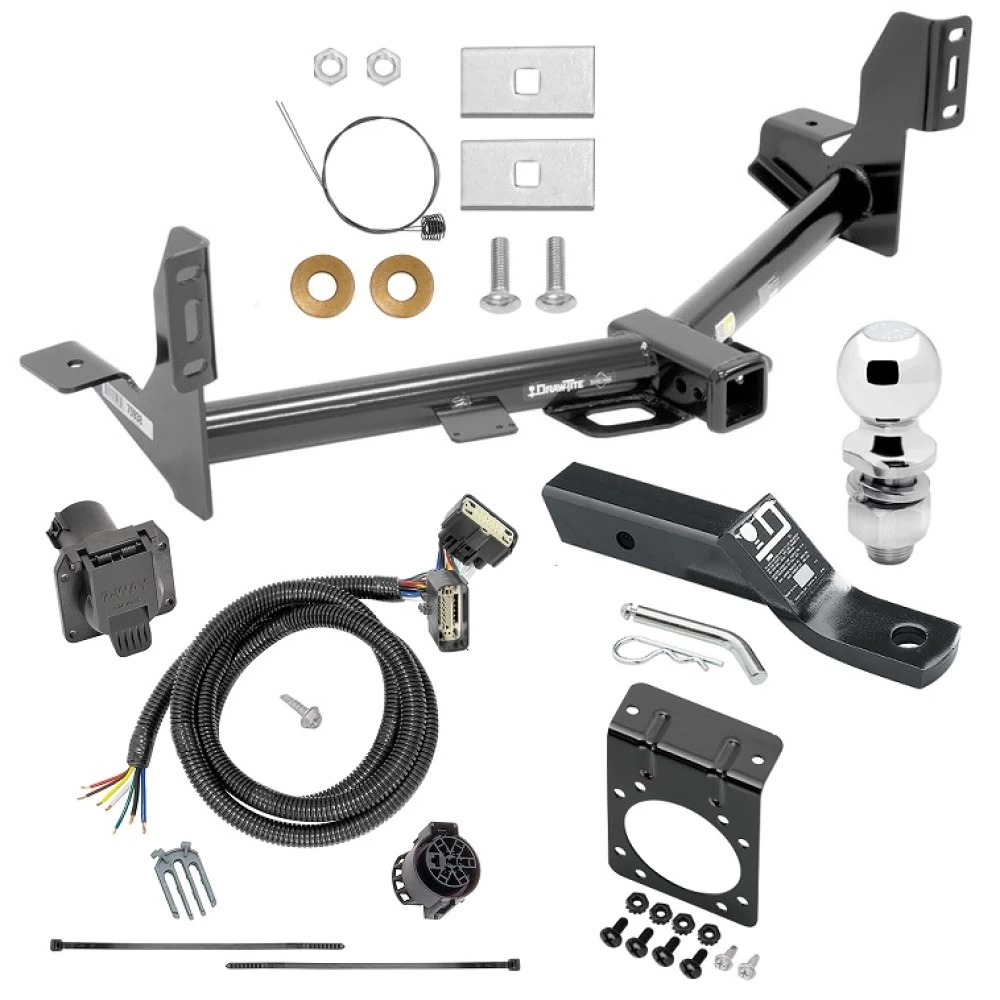

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tow Harness Wiring Package (7-Way)
2" Chrome Ball
2" Drop Ball-Mount w/ Pin/Clip
Mounting Bracket for 7-Way Connectors

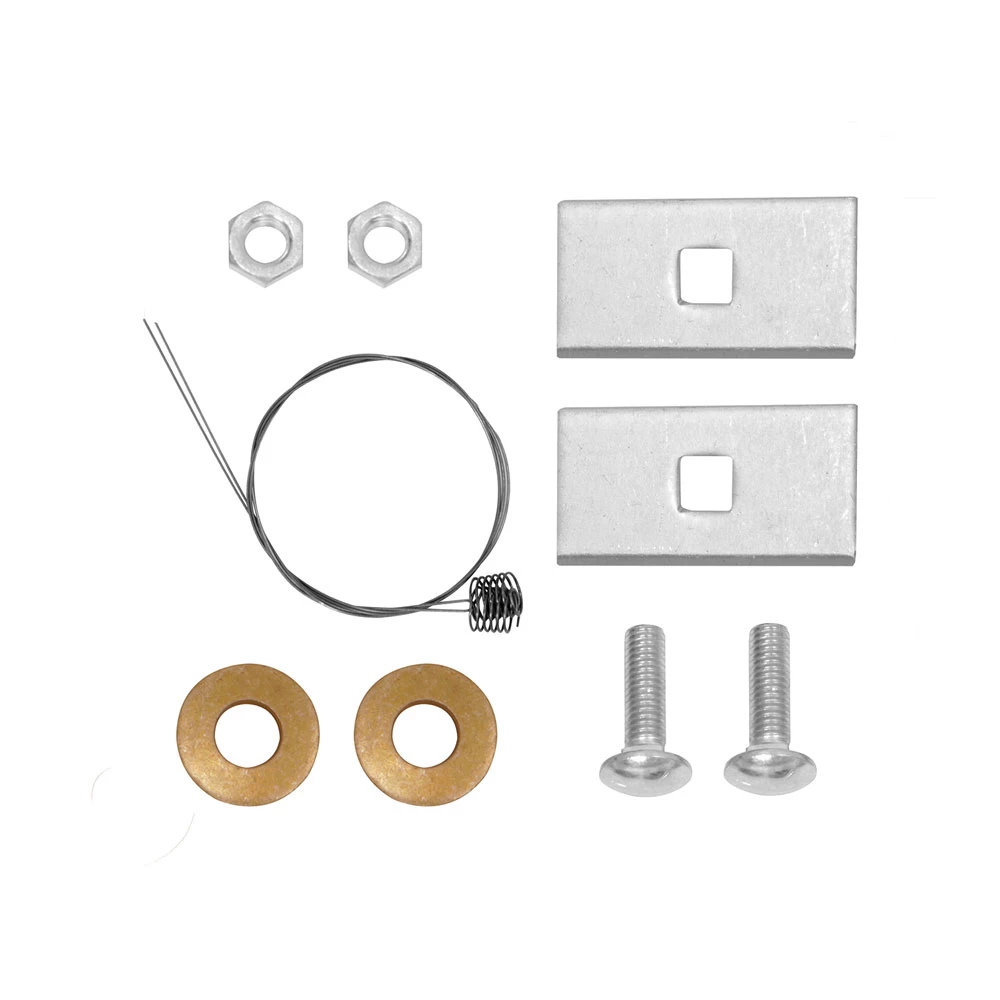

Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2020 Ford, F-150, All Styles
2017 - 2020 Ford, F-150 Raptor, All Styles
Trailer Hitch Specs:

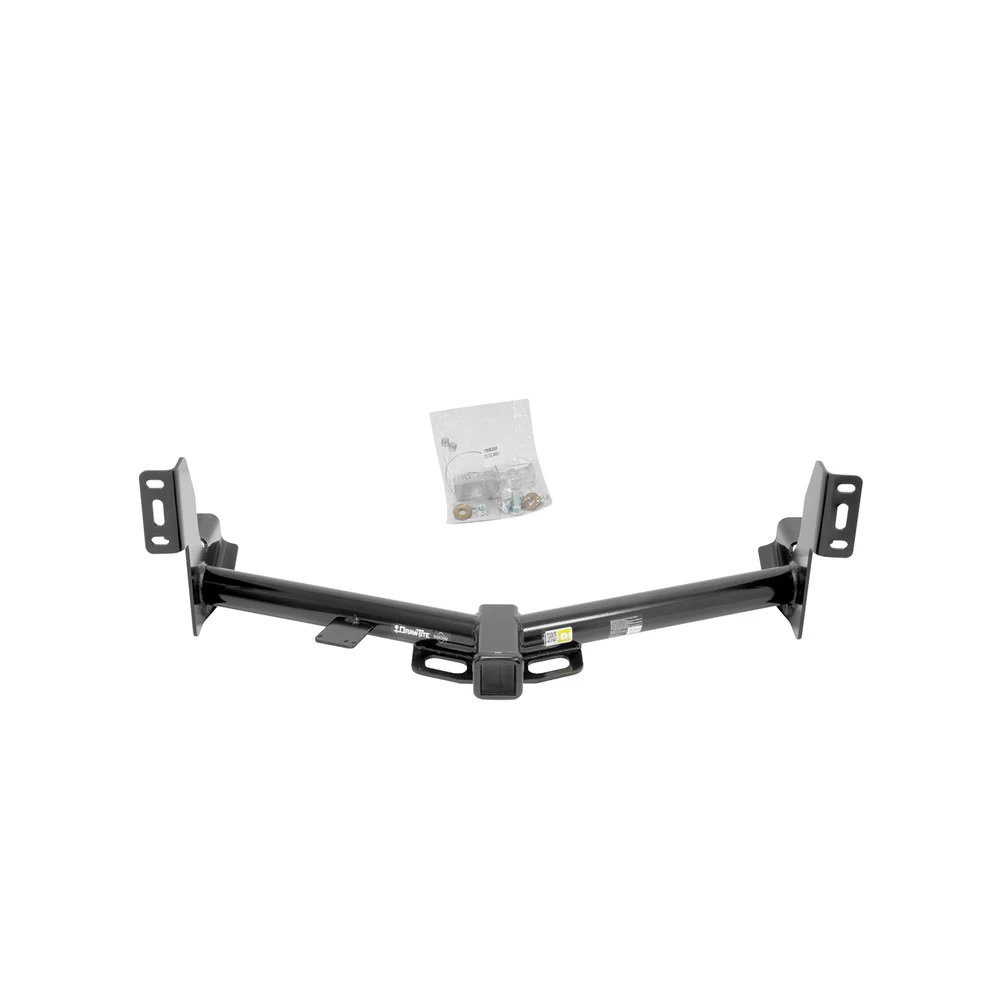

Custom Fit Trailer Hitch
Tow Harness Wiring Package (7-Way)
2" Chrome Ball
2" Drop Ball-Mount w/ Pin/Clip
Mounting Bracket for 7-Way Connectors
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2020 Ford, F-150, All Styles
2017 - 2020 Ford, F-150 Raptor, All Styles
Trailer Hitch Specs:
| Part Number | 75938 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 4 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 900/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

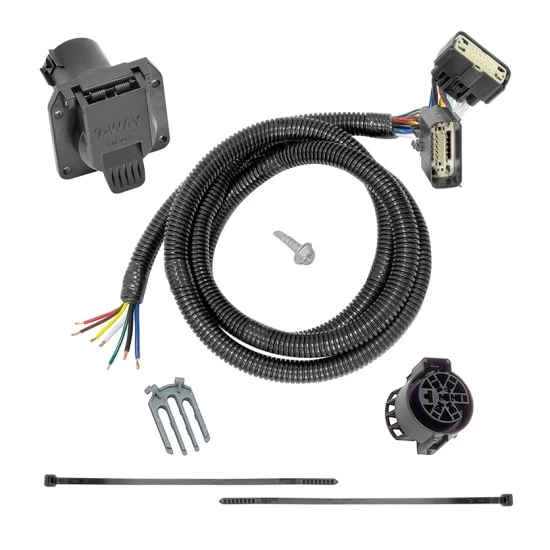

Wiring Kit Specs:
| Part Number | 118283 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
7-Way Mounting Bracket
| Part Number | 118138 |
| Fits | 7 Flat Connectors |
| Brand | Tow Ready |
|
Mounting Bracket for 7-Way Flat Pin Connectors, Includes Screws and Nuts
|
|
| Warranty | 1 Year |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
2" Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wide range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with with trailers that have electric brakes. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 15 16 17 18 19 20 2015 2016 2017 2018 2019 2020
