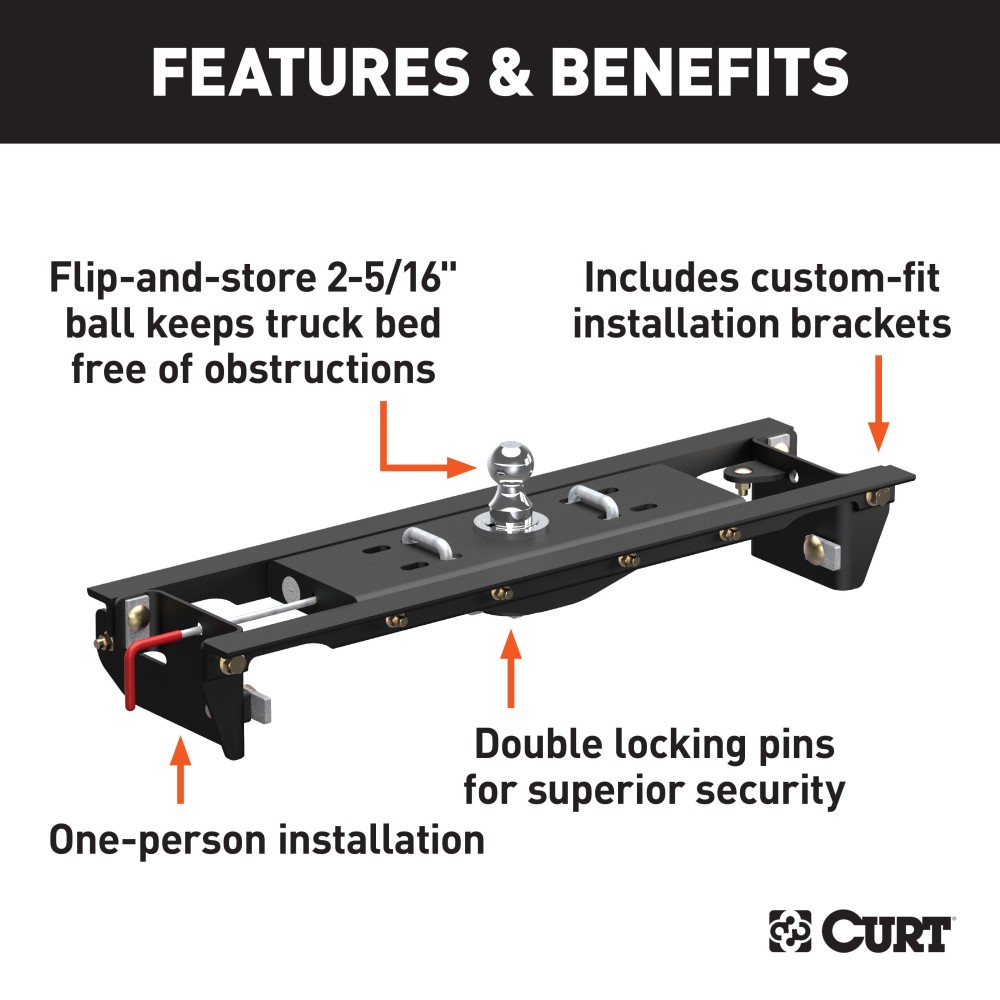

CURT 60683 Double Lock EZr Gooseneck Hitch, 2-5/16-In. Flip-Over Ball 30K (QTY 1)

Manufactured by: Curt

They've made the truck said to turn the world under its tires and the trailer that moves mountains in a day But what about the hitch powerful enough to connect the two? The CURT Double Lock EZr gooseneck hitch boasts easier installation, easier operation and 30,000 lbs of towing capacity to make towing that oversize gooseneck trailer look easy.

To make things even easier, this gooseneck hitch kit includes both the under-bed gooseneck hitch and the vehicle-specific installation brackets The combined kit makes it simple to get your truck ready for towing by eliminating the need to purchase two different parts It includes the #60619 gooseneck hitch and the #60645 installation brackets to fit certain years of the Ford F250 or F350 Super Duty (for a complete listing of compatibility, see the CURT fitment guide).

Installation of the Double Lock EZr requires only one person, using retainer clips to keep bolts secure and the center section fully supported while mounting it into place It also uses our patented center locator to eliminate meticulous measuring and ensure error-free drilling The EZr also uses carriage bolts whenever possible for one-wrench tightening.

Operation of the Double Lock EZr is simple and safe It uses two locking pins and a 3/8" diameter handle to keep the gooseneck ball locked into the center section The ball features a flip-over design that allows you to store it inside the receiver hole when not in use, keeping your truck bed completely free of obstructions.

With a fortified center section, this hitch offers a gross trailer weight capacity up to 30,000 lbs and a vertical load limit of 7,500 lbs., giving you the power you need to get the job done right This CURT Double Lock EZr gooseneck hitch kit features a durable A-coat finish and includes a limited lifetime warranty.

For safe, reliable towing you can count on, it is tested in accordance with SAE J2638 for safety..

Features:

• One-person installation requires no welding or truck bed removal
• Center locator eliminates the need to measure where the ball hole should be
• Double locking pins for superior trailer and trailer ball security
• Flip-and-store ball keeps truck bed free of obstructions
• Vehicle-specific design optimizes strength and installation time
• Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
• Slotted safety chain holes allow for proper alignment with truck bed rails
• Chrome-plated trim ring provides a finished look
• Rubber hole cover helps prevent corrosion in trailer ball hole
• Heavy-duty 3/8" diameter handle for solid operation
• Includes strong 5/8" safety chain loops and grade-8 hardware
• Protected by a durable A-coat finish
• Tested for safety in accordance with SAE J2638
• Limited lifetime warranty (one-year finish, one-year parts)

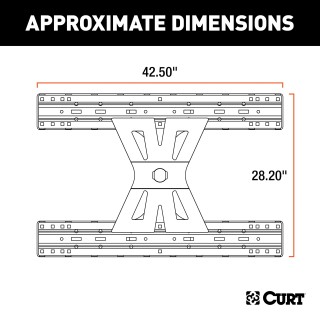

CURT 16220 X5 Gooseneck to 5th Wheel Adapter for Double Lock EZr Hitches, Industry-Standard Base Rails, 20,000 lbs (QTY 1)

Manufactured by: Curt

CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails.

This CURT 5th wheel adapter plate features a round shank and is compatible with CURT Double Lock EZr gooseneck hitches It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches up to 20K This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller..

Features:

• Converts CURT Double Lock EZr gooseneck hitches to 5th wheel rails
• For use with CURT and competitive 5th wheels up to 20,000 lbs.
• Industry-standard base rails accept 5th wheel hitches and rollers
• Protected by a highly durable carbide powder coat finish
• No assembly or tools required – just drop it in, lock it and go
• Co-cured in a rust-resistant liquid A-coat
• Limited lifetime warranty (one-year finish, one-year parts)

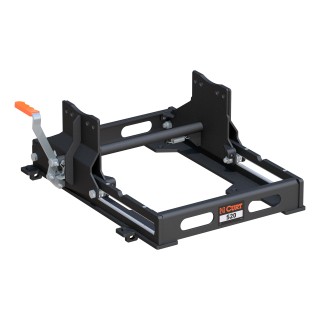

CURT 16564 S20 Sliding 5th Wheel Hitch for Short Bed Trucks, 20,000 lbs (Head Required) (QTY 1)

Manufactured by: Curt

The CURT S20 slider makes it easy to tow a 5th wheel trailer with your short-bed truck This slider features a quiet design, an auto-latching mechanism, an ergonomic handle and industry-standard mounting points The S20 sliding 5th wheel hitch is built with a solid design to eliminate chucking in the towing position and promote smooth rolling from forward to rearward positions, with no binding.

With the S20 installed, you can safely move the coupling point 12 inches toward the rear, allowing your short-bed truck to make turns without obstruction The S20 slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers.

Best of all, the S20 automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation Simply set the lever, pull the truck forward and you're ready to maneuver The auto-latches will lock the slider into the rearward coupling position.

The S20 sliding 5th wheel is rated for trailers up to 20,000 pounds, and it is fully tested to SAE J2638 specifications It comes with standard mounting points to easily mount onto all industry-standard base rails..

Features:

• Quiet, solid design to eliminate chucking in towing position
• Smooth sliding between positions with no binding
• Automatically latches in both directions so you only have to exit the truck once
• Easy-to-reach lever arm for ergonomic operation
• Lever lift motion for user-friendly functionality vs. traditional pull-out style
• 12" rearward movement provides extra turning clearance for short-bed trucks
• 20,000-lb. rating tested for safety in accordance with SAE J2638
• Mounts to all industry-standard rails and CURT puck system adapters
• Protected by a highly durable carbide powder coat finish
• Unit comes fully assembled for easy installation
• Limited lifetime warranty (one-year finish, one-year parts)

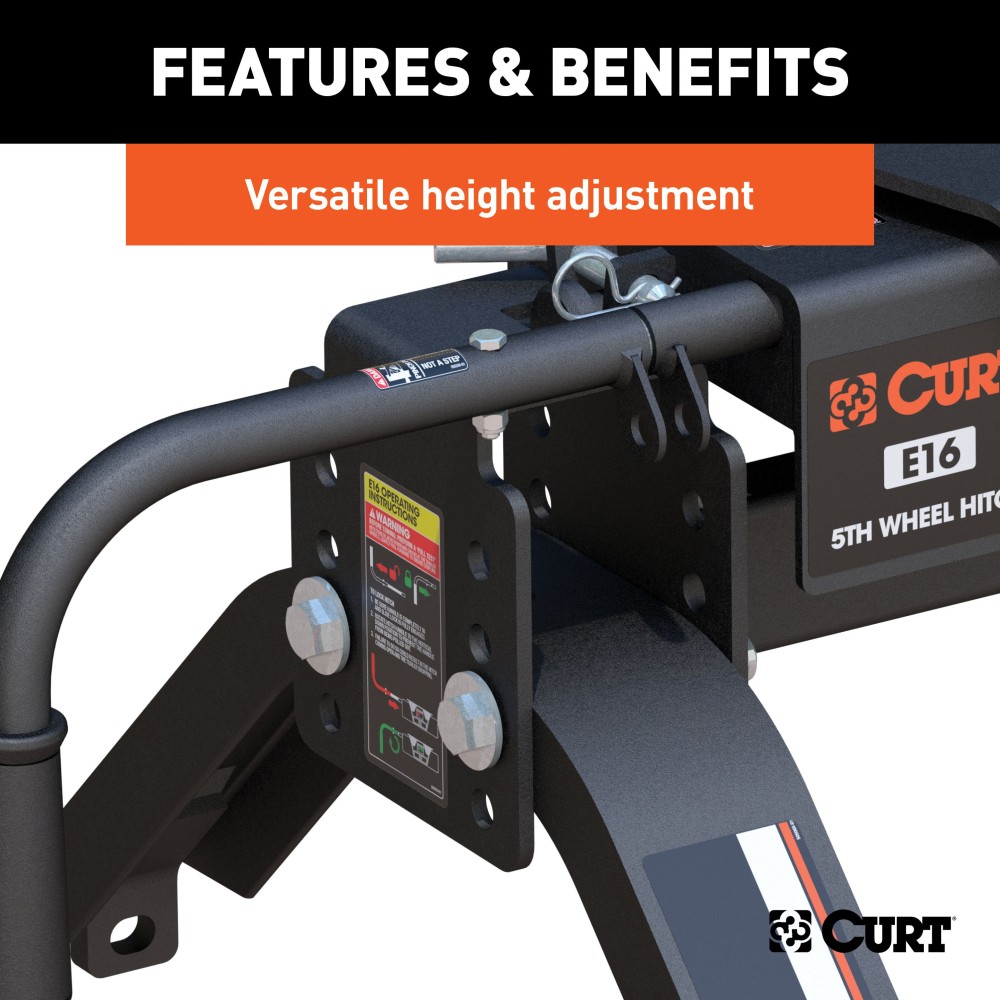

CURT 16115 E16 5th Wheel Hitch, 16,000 lbs (QTY 1)

Manufactured by: Curt

The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches The E16 has a gross trailer weight rating of 16,000 lbs and can withstand a vertical load up to 4,000 lbs.

It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty.

This 16K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately)..

Features:

• Pivots on dual axes for 10 degrees of lateral movement
• Automatically locks for easy, secure coupling
• Operates using a single handle
• Features an anti-rattle skid plate to help reduce noise
• Compatible with kingpin extension boxes, including common pivoting pin boxes
• Mounts to all industry-standard base rails
• Offers four height adjustment positions to adapt to each unique truck bed
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
