CURT 16023 Replacement Chevrolet Silverado, GMC Sierra 2500, 3500 HD Puck System 5th Wheel Roller Adapter, 20,000 lbs, Hitch Head and Roller Required (QTY 1)

Manufactured by: Curt

The CURT OEM puck system 5th wheel roller adapter for GM pickups combines the functionality of a CURT 5th wheel roller with the strength and convenience of GM's truck bed puck system The adapter is designed to securely mount a CURT 5th wheel roller and hitch head into the bed of your Chevy or GMC truck, using the OEM puck system It is designed to fit the puck system in select model years of the Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD with 6.5-foot bed (see application info to verify fitment) (compatible with CURT 5th wheel hitches only).

It features a set of adjustable, quarter-turn anchors to quickly and easily drop into the pucks and provide a moveable platform for the 5th wheel coupling point It features a capacity of 20,000 lbs and is compatible with most CURT 5th wheel heads (weight capacities are limited to the lowest-rated towing component).

Like our OEM puck system 5th wheel legs, the key feature of the GM 5th wheel roller adapter is its quarter-turn anchors With the hitch head and roller initially bolted onto the adapter, the adapter can easily be dropped into place whenever needed and secured with the quarter-turn anchors The anchors can also be adjusted to help eliminate chucking noises between the adapter and under-bed platform while towing.

When you are finished towing, simply turn the anchors to remove the entire assembly within seconds The CURT 5th wheel roller adapter for select Chevrolet and GMC pickup trucks provides the ultimate in versatility for the CURT 5th wheel line With a gross trailer weight capacity of 20,000 lbs., it is able to accept most CURT 5th wheel rollers, including the R16 and R20.

It tested for safety in accordance with SAE J2638 and is coated in a highly durable carbide black powder coat finish to protect against scratches and rust..

Features:

• Adapts CURT roller to fit Chevy or GMC puck system (year range specific)

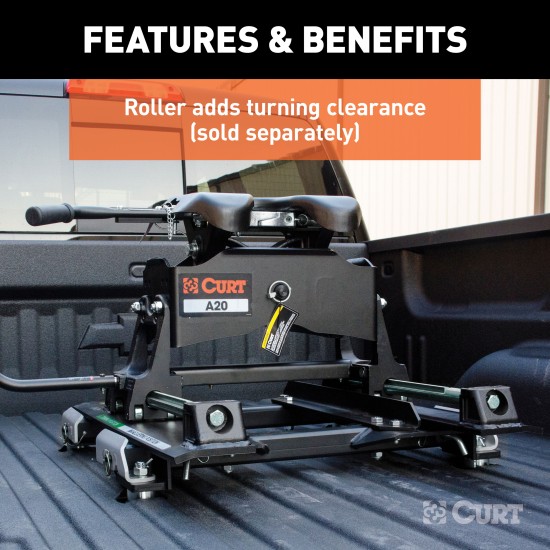

• Roller adds clearance for short-bed trucks making tight turns (not included)

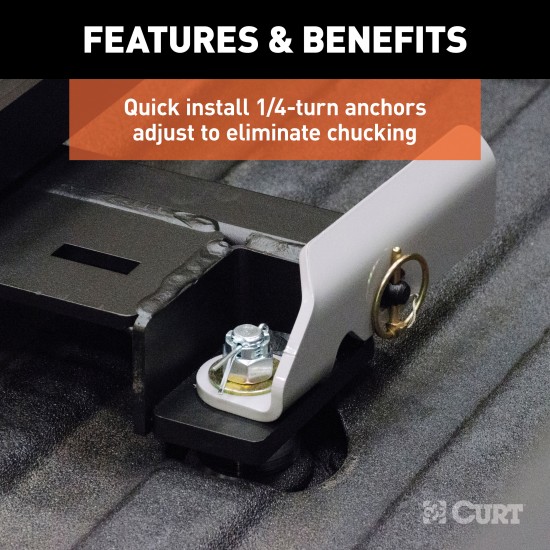

• Quarter-turn anchoring system provides quick installation and removal
• Adjustable anchors to eliminate chucking between the legs and puck system
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide black powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16245 Q24 5th Wheel Hitch, 24,000 lbs (QTY 1)

Manufactured by: Curt

The CURT Q24 is the heavyweight champion of 5th wheel hitches With a gross trailer weight capacity of 24,000 lbs and a vertical load limit of 6,000 lbs., the Q24 is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers.

Something that sets the Q24 5th wheel hitch apart from competitive models is its spherical axial bearing Instead of having a set of rods on which the hitch head can pivot, the Q24 uses a spherical bearing to allow the hitch head to pivot in virtually any direction This means smoother turns, a quieter ride and less strain on your towing equipment and truck.

The CURT Q24 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety This 24K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately).

Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards Please contact CURT Product Support for compatibility information..

Features:

• Spherical axial bearing tilts head in any direction for a smooth, quiet ride
• Dual jaws fully wrap the kingpin to reduce chucking and increase security
• Wide, self-aligning head helps eliminate errors when backing up to the trailer
• Lockable, short-throw handle automatically engages with the kingpin
• Three easy-access grease fittings for lubrication
• Three-position coupling indicator clearly shows coupling status
• Mounts to all industry-standard base rails
• Offers three height adjustment positions to adapt to each unique truck bed
• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
