Installation Instructions for Ford F-150 Gooseneck Mounting Kit

Part Number:

• 4437

Tools Required:

• Drill
• Drill Bits: 1/4”
• Wrenches: 13mm, 3/4”, 7/8”, 15/16”

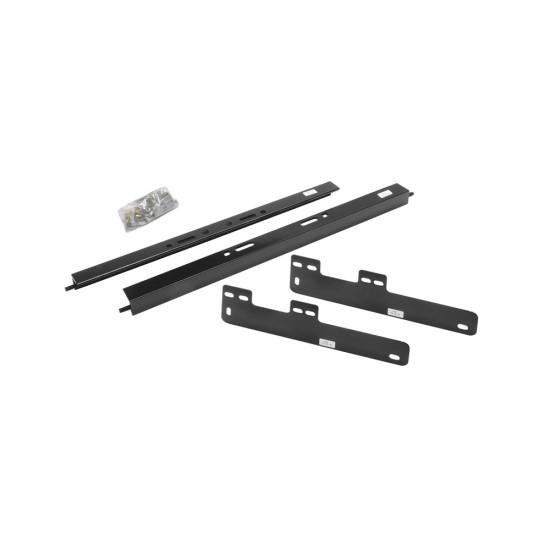

Hardware List:

• 4 × 1/2"-13 x 1.75" Grade 5 carriage bolts
• 4 × Flat washers, 1/2"
• 4 × Lock washers, 1/2"
• 4 × Hex nuts, 1/2"
• 4 × 5/8" Flat washers
• 4 × 5/8" Lock washers
• 4 × 5/8" Hex nuts
• 4 × Spacer blocks, 1/4" x 1.00" x 3.00"
• 8 × Shims, 3/16" x 1.00" x 2.00"

Step-by-Step Instructions:

1. Remove Jounce Blocks:

   • On older trucks, remove the jounce blocks from the frame rails. On newer models, use the slot on the inside of the truck frame rail to position bolts and spacer blocks.

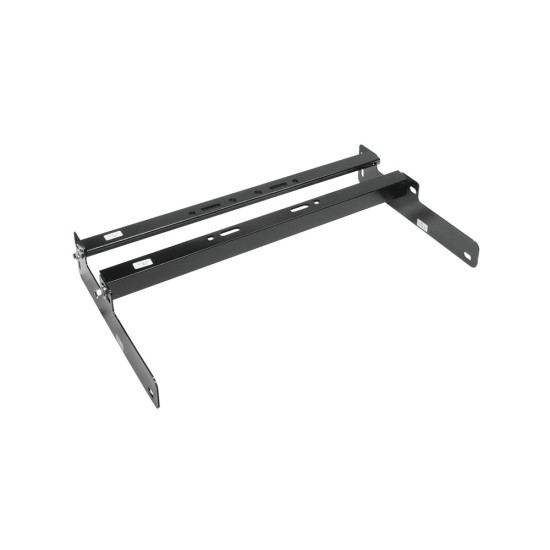

2. Install Cross Members:

   • Slide the forward and rearward cross members between the truck bed and frame rails.
   • The forward cross member has two additional holes centered between the long slots.

3. Drill Bed Opening:

   • Mark and drill a 1/4" pilot hole 45-3/4 inches from the rear of the bed and centered between the wheel wells.
   • Enlarge the hole to the final diameter using a hole saw as specified in the 6300/8339 gooseneck hitch instructions.

4. Insert Fasteners:

   • Pull carriage bolts and spacer blocks into position using the provided pull wire.
   • Align the cross members with the drilled hole and loosely secure with flat washers, lock washers, and hex nuts.

5. Align and Torque:

   • Position the hitch frame brackets, aligning the threaded studs on the cross members to the inner slots of the brackets.
   • Loosely secure the brackets using 5/8” and 1/2” fasteners.
   • Align the gooseneck hitch sleeve with the drilled hole in the bed.

6. Torque Fasteners:

   • Torque all 1/2"-13 Grade 5 fasteners to 75 ft-lbs (102 N-m).
   • Torque all 5/8"-11 Grade 5 fasteners to 150 ft-lbs (203 N-m).
   • Torque the hitch head to the cross members to 212 ft-lbs (287 N-m).

7. Reinstall Components:

   • Reinstall any jounce blocks removed during the installation.
   • Verify that the hitch ball sleeve is properly aligned with the bed opening.

Safety Notes:

• Load Capacities:
  • Follow the vehicle manufacturer’s towing capacity recommendations.
  • Ensure adequate clearance between the gooseneck trailer and the truck cab or bed.
• Precautions:
  • Avoid damage to fuel lines, brake lines, and electrical wiring during installation.
  • Always check the hitch, ball, coupler, and safety chains before towing.

Maintenance:

• Periodically re-torque all hitch fasteners.
• Keep the gooseneck ball and sleeve lubricated.
• Inspect all connections for proper operation before each use.

For technical support, contact 1-877-287-8634.

Note: This product complies with safety standards including SAE J684.

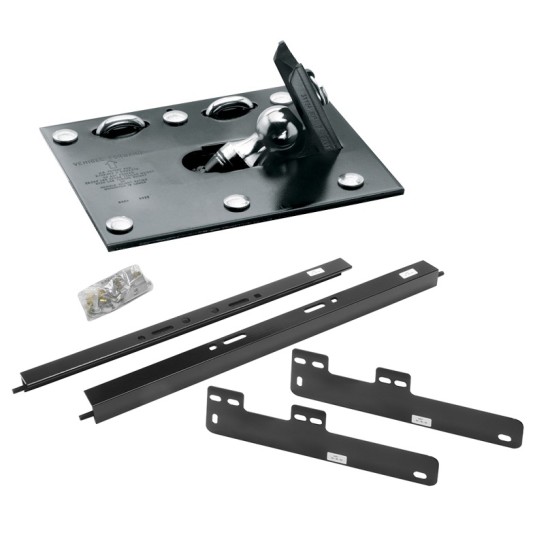

Installation Instructions for 2 5/16" Folding Ball Gooseneck Hitch

Part Numbers:

• 8339

Rated Capacity:

• Maximum Trailer Weight: 25,000 lbs
• Maximum Vertical Load: 6,250 lbs

Tools Required:

• Hand Drill
• Drill Bits: 1/4”, 5/8”, 3/4”
• Sockets and Wrenches: 9/16” & 15/16”
• Center Punch
• Torque Wrench
• Saber Saw
• Round and Flat Files
• Hammer

Hardware List:

1. 5/8-11 x 2.5" Grade 5 Carriage Bolt - 4
2. 5/8-11 Nut - 4
3. 5/8 Lock Washer - 4
4. 5/8 U-Bolt (Zinc Plated) - 2
5. 5” Spring - 4
6. 5/8-18 Locknut - 4
7. 9/16 Flat Washer - 8
8. 5/16” x 1” x 2” Shim - 1

Warnings:

• DO NOT exceed the towing vehicle manufacturer’s ratings.
• Regularly inspect all fasteners and components for tightness and damage.
• Follow safety precautions when working under the vehicle, and wear eye protection.

Step-by-Step Installation Instructions:

1. Preparation:

1. Locate the hitch ball along the truck's fore/aft centerline, ensuring the centerline is above and forward of the rear axle.
2. Ensure adequate clearance between the gooseneck trailer and the truck’s cab and bed.

2. Bed Modification:

1. Use the provided template to mark the hitch ball centerline in the truck bed.
   • Cut a 14.5” x 12” section out of the bed liner if present.
2. Center punch the marked locations and drill 1/4” pilot holes.
3. Cut the truck bed along the markings using a saber saw and file edges as necessary.

3. Platform Installation:

1. Place the platform into the opening and ensure it is square to the truck’s centerline.
2. Use the platform as a guide to drill 5/8” diameter holes for the carriage bolts and 3/4” diameter holes for U-bolts.

4. Installing Hardware:

1. Insert 5/8" carriage bolts through the platform and under-vehicle supports. Secure with lock washers and nuts. Torque to 150 ft-lbs.
2. Install U-bolts through the platform. From underneath, add a large washer, spring, another washer, and secure with a jam nut.
   • Tighten jam nuts until three threads are visible beyond the nut.

5. Folding Ball Operation:

1. Raising the Ball:
   • Grasp the lift ring and raise the cover until the spring holds it open.
   • Rock the ball to its vertical position, then lower the cover to lock the ball in place.
2. Lowering the Ball:
   • Reverse the process, ensuring the cover locks the ball in the horizontal position.
3. Attach safety chains to the spring-loaded U-bolts.

Maintenance:

1. Keep the ball envelope and pivoting mechanism free from dirt and debris.
2. Lubricate the ball cover pivot monthly with lightweight oil.
3. Grease the ball pivot at the grease zerk monthly.
4. Retorque all hardware monthly to ensure secure connections.

Safety Notes:

1. Ensure at least 6” of clearance between the trailer and truck bed sides.
2. Adjust the coupler height to maintain proper clearance.
3. Avoid jackknife positions that could damage the truck or trailer.
4. Regularly check the coupler, ball, and all fasteners for wear or damage.

Warranty:

• Limited Lifetime Warranty:
  • Covers material and workmanship defects under normal use.
  • Excludes damage from misuse, overloading, or improper installation.
• For warranty claims, contact Cequent Towing Products at 1-800-632-3290.

For additional details, consult the full manual or contact customer support.
