Draw-Tite Gooseneck Trailer Hitch for 88-00 Chevy GMC C/K 1500 2500 3500 Series Turnover w/ Brackets Rails Under Bed 2-5/16" Ball Excluding 3500 Crew Cab
Draw-Tite Gooseneck Trailer Hitch for 88-00 Chevy GMC C/K 1500 2500 3500 Series Turnover w/ Brackets Rails Under Bed 2-5/16" Ball Excluding 3500 Crew Cab
$520.00
- Stock: In Stock
- Brand: Draw-Tite
- Model: 9465-40
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, All Styles
1988 - 1999 Chevrolet, C2500, All Styles
1988 - 2000 Chevrolet, C3500, Except Crew Cab
1988 - 1999 Chevrolet, K1500, All Styles
1988 - 1999 Chevrolet, K2500, All Styles
1988 - 2000 Chevrolet, K3500, Except Crew Cab 105 min
1988 - 1999 GMC, C1500, All Styles 105 min
1988 - 1999 GMC, C2500, All Styles 105 min
1988 - 2000 GMC, C3500, Except Crew Cab 105 min
1988 - 1999 GMC, K1500, All Styles 105 min
1988 - 1999 GMC, K2500, All Styles 105 min
1988 - 2000 GMC, K3500, Except Crew Cab
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.

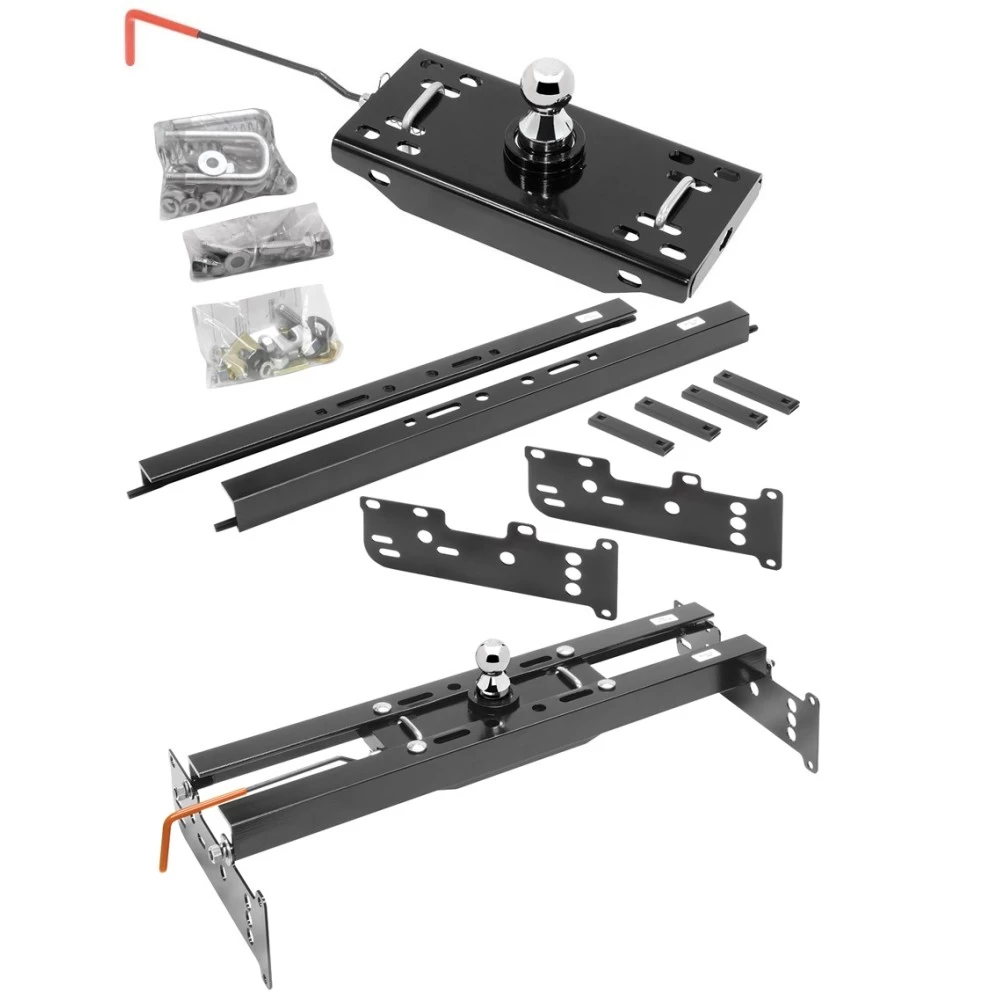

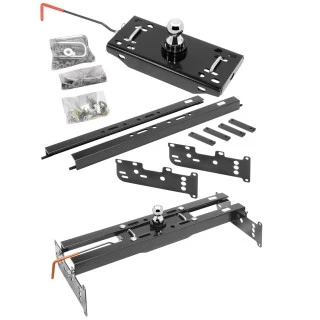

Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
1988 - 1999 Chevrolet, C1500, All Styles
1988 - 1999 Chevrolet, C2500, All Styles
1988 - 2000 Chevrolet, C3500, Except Crew Cab
1988 - 1999 Chevrolet, K1500, All Styles
1988 - 1999 Chevrolet, K2500, All Styles
1988 - 2000 Chevrolet, K3500, Except Crew Cab 105 min
1988 - 1999 GMC, C1500, All Styles 105 min
1988 - 1999 GMC, C2500, All Styles 105 min
1988 - 2000 GMC, C3500, Except Crew Cab 105 min
1988 - 1999 GMC, K1500, All Styles 105 min
1988 - 1999 GMC, K2500, All Styles 105 min
1988 - 2000 GMC, K3500, Except Crew Cab
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
| Part Number | 9465-40 |
| Brand | Draw-Tite |
| Gooseneck Head Rating | 30,000 lbs |
| Under-Bed Rails Rating | 12,000 lbs |
| Vertical Load | Head: 7,500 Rails: 3,000 |
| Ball Size | 2-5/16" |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years:
88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
