Model: 4454 8339
This Wiring Fits The Following Vehicles:

1999 - 2002     Chevrolet, Silverado 1500, All Styles
2003 - 2006     Chevrolet, Silverado 1500, All Styles
2007 - 2013     Chevrolet, Silverado 1500, All Styles
2007     Chevrolet, Silverado 1500, (Classic)
2014 - 2019     Chevrolet, Silverado 1500, LD (Old Body Style) Does Not Fit MagneRide Magnetic Ride Suspension
2001 - 2002     Chevrolet, Silverado 1500 HD, All Styles
2003     Chevrolet, Silverado 1500 HD, All Styles
2005 - 2006     Chevrolet, Silverado 1500 HD, All Styles
2007     Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004     Chevrolet, Silverado 2500, 6.6 ft. Bed
1999 - 2002     GMC, Sierra 1500, All Styles
2003 - 2006     GMC, Sierra 1500, All Styles
2007 - 2013     GMC, Sierra 1500, All Styles
2007     GMC, Sierra 1500, (Classic)
2014 - 2019     GMC, Sierra 1500, LD (Old Body Style) Does Not Fit MagneRide Magnetic Ride Suspension
2001 - 2003     GMC, Sierra 1500 HD, All Styles
2005 - 2007     GMC, Sierra 1500 HD, All Styles
1999 - 2004     GMC, Sierra 2500, 6.6 ft. Bed

Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.

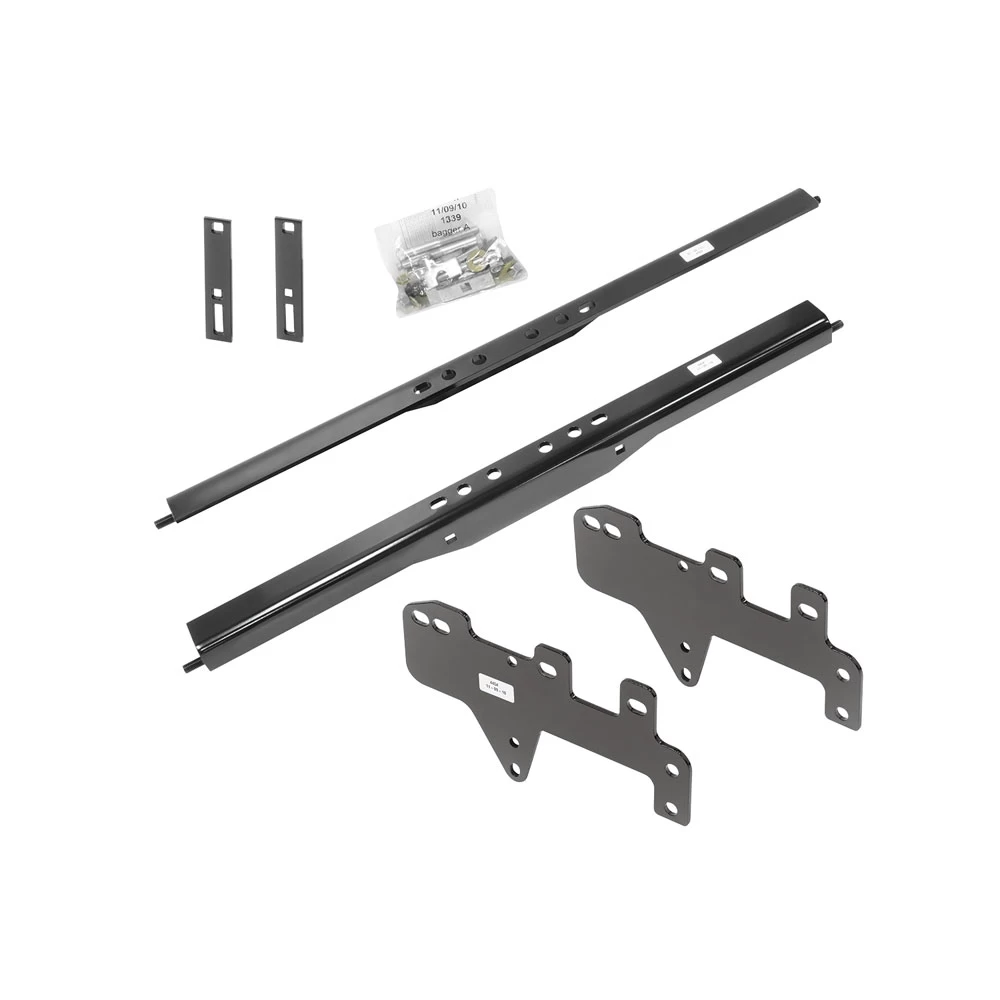

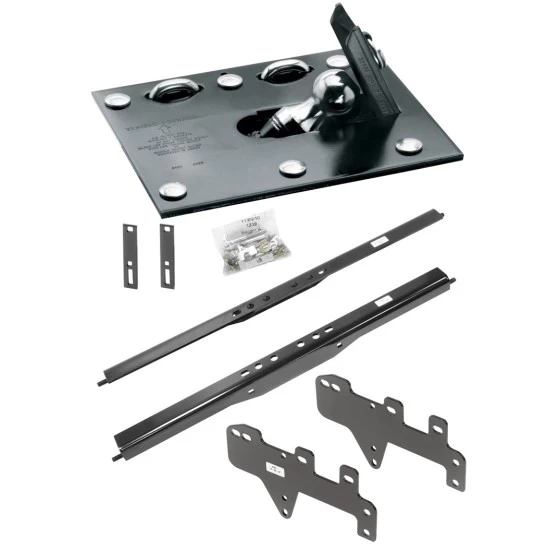

Each Kit includes:
Fold-Down Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Fold-Down Gooseneck Ball
Magnetic Cover

Features:

Fold down design allows unrestricted use of the truck bed when not towing
Takes only seconds to raise or lower the ball into position
Forged, heat-treated 2-5/16" chrome ball standard
Includes mounting hardware & integrated drop down spring loaded safety chain loops
Oversize pull ring allows user to raise or lower the ball while wearing gloves
Integrated grease fitting is visible & easily accessible
Platform & ball rated for 25,000 lbs. Gross vehicle towing weight and 6,250 lbs. vertical load
No alteration of factory exhaust systems required
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
Black Powder Coat Finish

       Gooseneck Trailer Hitch Head Specs:
Part Number 8339
Brand Draw-Tite
Rating 30,000 lbs
Dimensions 12"L x 14.5"W x 1/4" Thick
Vertical Load 6,250 lbs
Ball Size 2-5/16"
Installation Instructions

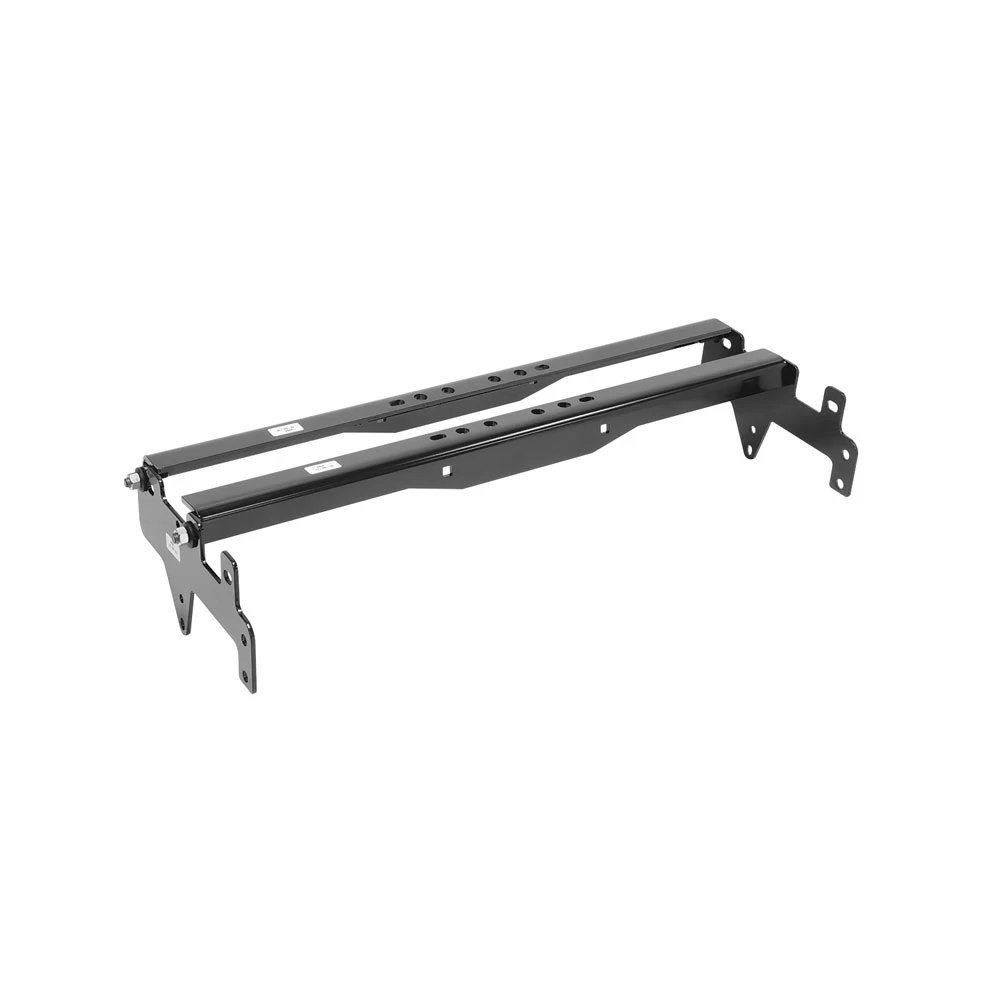

Rail Kit Specs:
Part Number 4454
Brand Draw-Tite
Rating 16,000 lbs
Pin Weight Capacity:
4,000 lbs.
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.

Partial list of fitment years:
99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 1999 2000 2001 2002 2003 2004 2005 2006

$531 47 $734.23 28% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

Verify Fitment

$734.23 $531 47

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

  • Brand: Draw-Tite
  • Model: 4454 8339
  • Includes: Gooseneck Rail Kit,  Fold-Down Gooseneck Hitch Head
Compatibility Chart
Year Range Make Model Style

Specification
Capacity 16,000 lbs.
Color Black
Drilling Required No Frame Drilling
Gross Towing Weight 16,000 lbs.
Material Steel
Mounting Hardware Included Yes
Pin Weight Capacity 4,000 lbs.
Universal Or Specific Fit Specific Fit
Welding Required No
