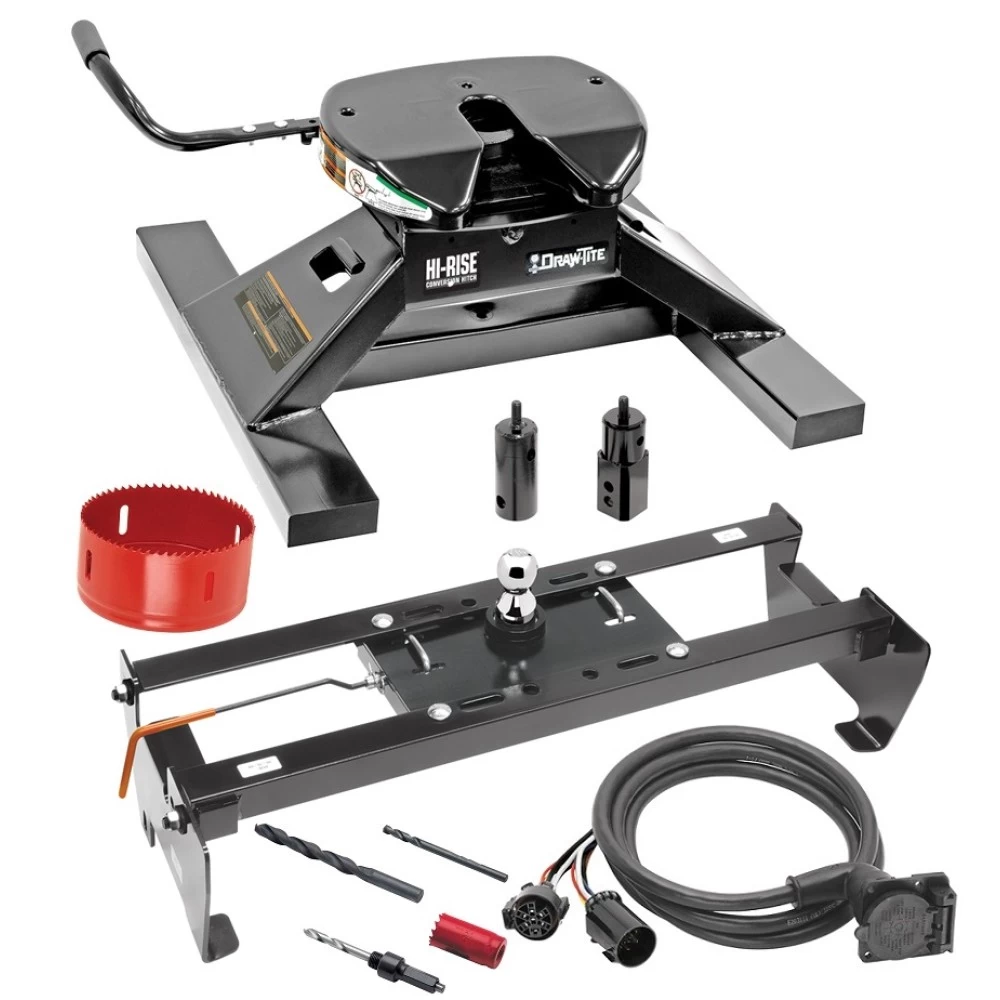

Draw-Tite Gooseneck Trailer Hitch Kit Deluxe w/ 18K 5th Fifth Wheel Adapter In-Bed Wiring and Hole Saw for 02-08 Dodge Ram 1500 Turnover w/ Brackets Rails Under Bed 2-5/16" Ball Excluding Mega Cab
Model: 9464-38 9480 50-97-410 1937 583812002 - 2008 Dodge, Ram 1500, Except Mega Cab
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
18K Gooseneck to Fifth Wheel Trailer Hitch Conversion Adapter
Round Post For Bulldog and Draw-Tite Hide-A-Goose Heads
Square Post For B&W Turnover Ball Gooseneck Systems
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
| Part Number | 9464-38 |
| Brand | Draw-Tite |
| Gooseneck Head Rating | 30,000 lbs |
| Under-Bed Rails Rating | 12,000 lbs |
| Vertical Load | Head: 7,500 Rails: 3,000 |
| Ball Size | 2-5/16" |
| Installation Instructions |  |
4-Way Pivoting Head with Self Latching Jaw Design
4 Degree Side-to-Side Pivot for Better Control
Fifth Wheel Height Adjustments (14-1/4" - 18")
2 Bolts for Bed Height Adjustments
Offset Legs Enhance Performance While Braking
Adjustable Stabilizer Strips Fit Bed Corrugation Pattern
Lockable, Extended Length Handle
Not Rated for use with Reese Sidewinder™
Only works with B & W Gooseneck Hitch and Cequent (94xx) series heads with (44xx) series rails
18K Gross Trailer Weight / 4.5K Pin Weight Capacity
5 Year Limited Warranty
| Part Number | 9480 |
| Brand | Draw-Tite |
| Rating | 18,000 lbs |
|
Pin Weight Capacity:
|
4,500 lbs.
|
| Warranty | 5 Year |
| Installation Instructions | |
7-Way Fifth Wheel Adapter Harness Features:
| Part Number | 50-97-410 |
| Brand | Bargman |
| Length | 9 feet |
| Warranty | 1 Year |
| Installation Instructions | |
Drill bit and hole saw especially selected to best suit Draw-Tite Underbed Gooseneck trailer hitch installation where drilling is required.
| Part Number | 1937 58381 |
| Brand | Draw-Tite |
| Saw Size | 3-1/2" |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years:
02 03 04 05 06 07 08 2002 2003 2004 2005 2006 2007 2008
$1,667 80
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,667 80
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 9464-38 9480 50-97-410 1937 58381
Description
2002 - 2008 Dodge, Ram 1500, Except Mega Cab
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
18K Gooseneck to Fifth Wheel Trailer Hitch Conversion Adapter
Round Post For Bulldog and Draw-Tite Hide-A-Goose Heads
Square Post For B&W Turnover Ball Gooseneck Systems
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
| Part Number | 9464-38 |
| Brand | Draw-Tite |
| Gooseneck Head Rating | 30,000 lbs |
| Under-Bed Rails Rating | 12,000 lbs |
| Vertical Load | Head: 7,500 Rails: 3,000 |
| Ball Size | 2-5/16" |
| Installation Instructions | |
4-Way Pivoting Head with Self Latching Jaw Design
4 Degree Side-to-Side Pivot for Better Control
Fifth Wheel Height Adjustments (14-1/4" - 18")
2 Bolts for Bed Height Adjustments
Offset Legs Enhance Performance While Braking
Adjustable Stabilizer Strips Fit Bed Corrugation Pattern
Lockable, Extended Length Handle
Not Rated for use with Reese Sidewinder™
Only works with B & W Gooseneck Hitch and Cequent (94xx) series heads with (44xx) series rails
18K Gross Trailer Weight / 4.5K Pin Weight Capacity
5 Year Limited Warranty
| Part Number | 9480 |
| Brand | Draw-Tite |
| Rating | 18,000 lbs |
|
Pin Weight Capacity:
|
4,500 lbs.
|
| Warranty | 5 Year |
| Installation Instructions | |
7-Way Fifth Wheel Adapter Harness Features:
| Part Number | 50-97-410 |
| Brand | Bargman |
| Length | 9 feet |
| Warranty | 1 Year |
| Installation Instructions | |
Drill bit and hole saw especially selected to best suit Draw-Tite Underbed Gooseneck trailer hitch installation where drilling is required.
| Part Number | 1937 58381 |
| Brand | Draw-Tite |
| Saw Size | 3-1/2" |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years:
02 03 04 05 06 07 08 2002 2003 2004 2005 2006 2007 2008
