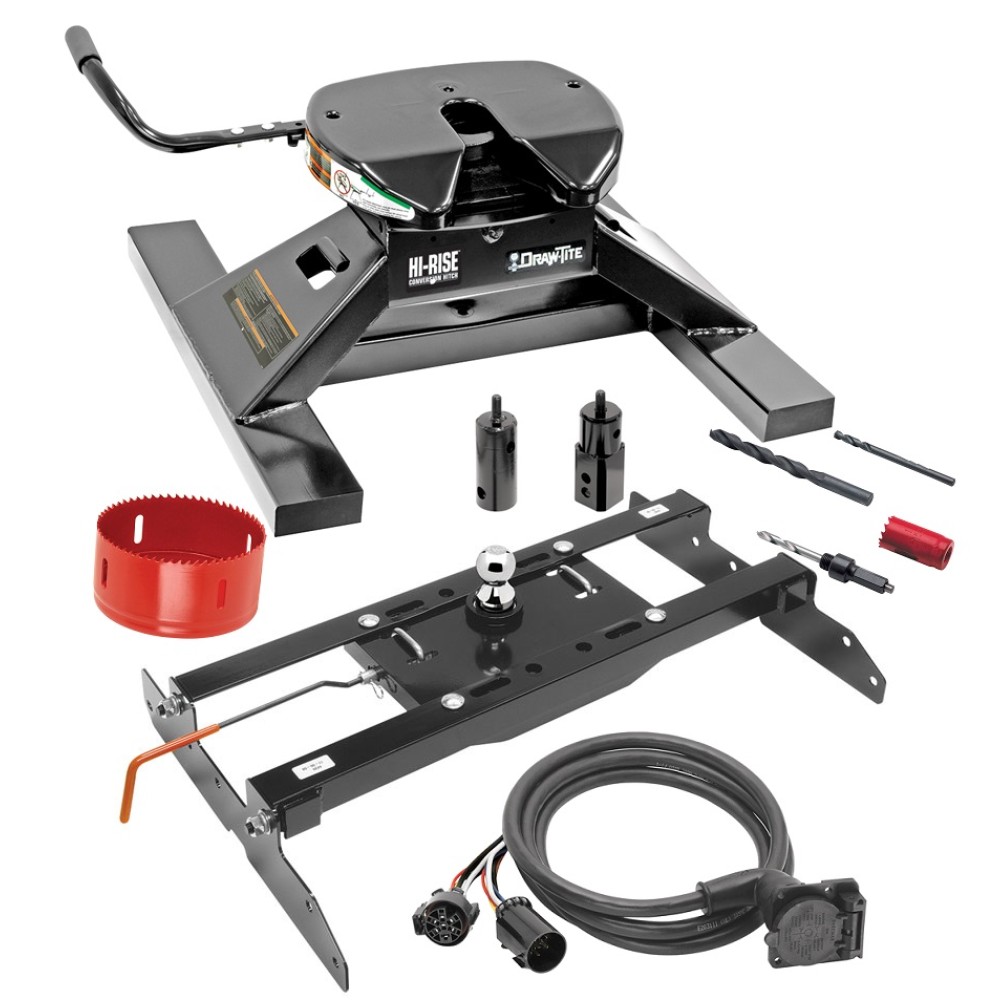

Draw-Tite Gooseneck Trailer Hitch Kit Deluxe w/ 18K 5th Fifth Wheel Adapter In-Bed Wiring and Hole Saw for 94-02 Dodge Ram 1500 2500 3500 Turnover w/ Brackets Rails Under Bed 2-5/16" Ball

Fits The Following Vehicles :

1994 - 2001 Dodge Ram 1500, 2500, 3500 All Styles
2002 - 2002 Dodge Ram 2500, 3500 All Styles

Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs.
The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head.
Easy install, reliable service.

Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
18K Gooseneck to Fifth Wheel Trailer Hitch Conversion Adapter
Round Post For Bulldog and Draw-Tite Hide-A-Goose Heads
Square Post For B&W Turnover Ball Gooseneck Systems
Magnetic Cover

Gooseneck Hitch Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system


Part Number	9460-39
Brand	Draw-Tite
Gooseneck Head Rating	30,000 lbs
Under-Bed Rails Rating	16,000 lbs
Vertical Load	Head: 7,500 Rails: 4,000
Ball Size	2-5/16"
Installation Instructions

Fifth Wheel Conversion Hitch Features:
4-Way Pivoting Head with Self Latching Jaw Design
4 Degree Side-to-Side Pivot for Better Control
Fifth Wheel Height Adjustments (14-1/4" - 18")
2 Bolts for Bed Height Adjustments
Offset Legs Enhance Performance While Braking
Adjustable Stabilizer Strips Fit Bed Corrugation Pattern
Lockable, Extended Length Handle
Not Rated for use with Reese Sidewinder™
Only works with B & W Gooseneck Hitch and Cequent (94xx) series heads with (44xx) series rails
18K Gross Trailer Weight / 4.5K Pin Weight Capacity
5 Year Limited Warranty


Part Number	9480
Brand	Draw-Tite
Rating	18,000 lbs
Pin Weight Capacity:	4,500 lbs.
Warranty	5 Year
Installation Instructions
