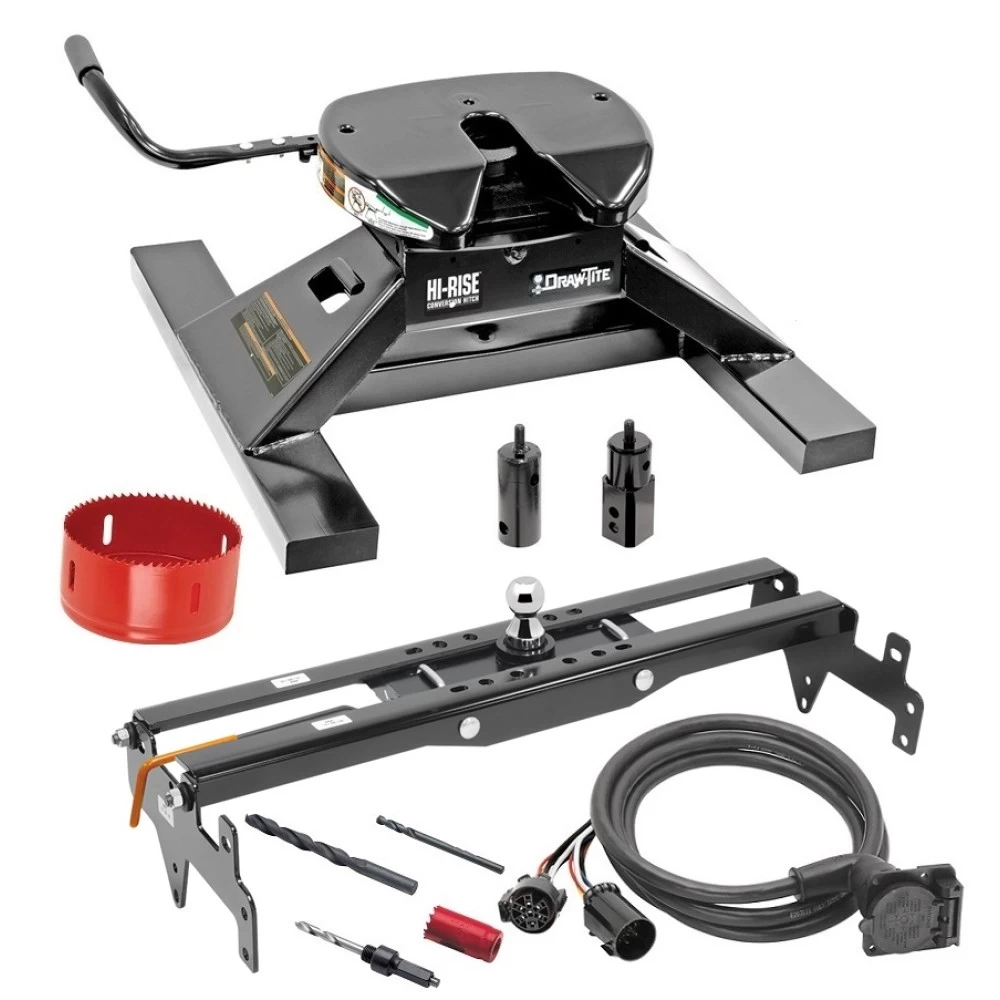

Draw-Tite Gooseneck Trailer Hitch Kit Deluxe w/ 18K 5th Fifth Wheel Adapter In-Bed Wiring and Hole Saw for 99-19 Chevy GMC Silverado Sierra 1500 99-04 2500 LD Turnover w/ Brackets Rails Under Bed 2-5/16" Ball
$1,648.35
- Stock: In Stock
- Brand: Draw-Tite
- Model: 9465-54 9480 50-97-410 1937 58381
This Wiring Fits The Following Vehicles:
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2006 Chevrolet, Silverado 1500, All Styles
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2007 Chevrolet, Silverado 1500, (Classic)
2014 - 2019 Chevrolet, Silverado 1500, LD (Old Body Style) Does Not Fit MagneRide Magnetic Ride Suspension
2001 - 2002 Chevrolet, Silverado 1500 HD, All Styles
2003 Chevrolet, Silverado 1500 HD, All Styles
2005 - 2006 Chevrolet, Silverado 1500 HD, All Styles
2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500, 6.6 ft. Bed
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2006 GMC, Sierra 1500, All Styles
2007 - 2013 GMC, Sierra 1500, All Styles
2007 GMC, Sierra 1500, (Classic)
2014 - 2019 GMC, Sierra 1500, LD (Old Body Style) Does Not Fit MagneRide Magnetic Ride Suspension
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, All Styles
1999 - 2004 GMC, Sierra 2500, 6.6 ft. Bed
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
18K Gooseneck to Fifth Wheel Trailer Hitch Conversion Adapter
Round Post For Bulldog and Draw-Tite Hide-A-Goose Heads
Square Post For B&W Turnover Ball Gooseneck Systems
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
7-Way Fifth Wheel Adapter Harness Features:
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2003 - 2006 Chevrolet, Silverado 1500, All Styles
2007 - 2013 Chevrolet, Silverado 1500, All Styles
2007 Chevrolet, Silverado 1500, (Classic)
2014 - 2019 Chevrolet, Silverado 1500, LD (Old Body Style) Does Not Fit MagneRide Magnetic Ride Suspension
2001 - 2002 Chevrolet, Silverado 1500 HD, All Styles
2003 Chevrolet, Silverado 1500 HD, All Styles
2005 - 2006 Chevrolet, Silverado 1500 HD, All Styles
2007 Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004 Chevrolet, Silverado 2500, 6.6 ft. Bed
1999 - 2002 GMC, Sierra 1500, All Styles
2003 - 2006 GMC, Sierra 1500, All Styles
2007 - 2013 GMC, Sierra 1500, All Styles
2007 GMC, Sierra 1500, (Classic)
2014 - 2019 GMC, Sierra 1500, LD (Old Body Style) Does Not Fit MagneRide Magnetic Ride Suspension
2001 - 2003 GMC, Sierra 1500 HD, All Styles
2005 - 2007 GMC, Sierra 1500 HD, All Styles
1999 - 2004 GMC, Sierra 2500, 6.6 ft. Bed
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
18K Gooseneck to Fifth Wheel Trailer Hitch Conversion Adapter
Round Post For Bulldog and Draw-Tite Hide-A-Goose Heads
Square Post For B&W Turnover Ball Gooseneck Systems
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
| Part Number | 9465-54 |
| Brand | Draw-Tite |
| Gooseneck Head Rating | 30,000 lbs |
| Under-Bed Rails Rating | 17,000 lbs |
| Vertical Load | Head: 7,500 Rails: 4,250 |
| Ball Size | 2-5/16" |
| Installation Instructions |  |
Fifth Wheel Conversion Hitch Features:
4-Way Pivoting Head with Self Latching Jaw Design
4 Degree Side-to-Side Pivot for Better Control
Fifth Wheel Height Adjustments (14-1/4" - 18")
2 Bolts for Bed Height Adjustments
Offset Legs Enhance Performance While Braking
Adjustable Stabilizer Strips Fit Bed Corrugation Pattern
Lockable, Extended Length Handle
Not Rated for use with Reese Sidewinder™
Only works with B & W Gooseneck Hitch and Cequent (94xx) series heads with (44xx) series rails
18K Gross Trailer Weight / 4.5K Pin Weight Capacity
5 Year Limited Warranty
4-Way Pivoting Head with Self Latching Jaw Design
4 Degree Side-to-Side Pivot for Better Control
Fifth Wheel Height Adjustments (14-1/4" - 18")
2 Bolts for Bed Height Adjustments
Offset Legs Enhance Performance While Braking
Adjustable Stabilizer Strips Fit Bed Corrugation Pattern
Lockable, Extended Length Handle
Not Rated for use with Reese Sidewinder™
Only works with B & W Gooseneck Hitch and Cequent (94xx) series heads with (44xx) series rails
18K Gross Trailer Weight / 4.5K Pin Weight Capacity
5 Year Limited Warranty
| Part Number | 9480 |
| Brand | Draw-Tite |
| Rating | 18,000 lbs |
|
Pin Weight Capacity:
|
4,500 lbs.
|
| Warranty | 5 Year |
| Installation Instructions | |
7-Way Fifth Wheel Adapter Harness Features:
9 foot 7-Way 90 degree connector molded to heavy duty 7-way insulated cable for fifth wheel or gooseneck trailer applications. Allows remote wiring in pickup beds or other hard to access areas. 90 degree molded from flame retardant material. Features a patented mounting bracket that allows for installation in virtually all pickup models and styles and includes self-tapping stainless steel mounting screws. Manufactured with UL listed 10/2, 12/1 and 14/4 jacketed cable.
Drill bit and hole saw especially selected to best suit Draw-Tite Underbed Gooseneck trailer hitch installation where drilling is required.
| Part Number | 50-97-410 |
| Brand | Bargman |
| Length | 9 feet |
| Warranty | 1 Year |
| Installation Instructions | |
Drill bit and hole saw especially selected to best suit Draw-Tite Underbed Gooseneck trailer hitch installation where drilling is required.
| Part Number | 1937 58381 |
| Brand | Draw-Tite |
| Saw Size | 3-1/2" |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years:
