Draw-Tite Gooseneck Trailer Hitch w/ 5" Offset Ball for 09-20 Dodge Ram 1500 Turnover w/ Brackets Rails Under Bed 2-5/16" Ball Excluding Air Suspension
Draw-Tite Gooseneck Trailer Hitch w/ 5" Offset Ball for 09-20 Dodge Ram 1500 Turnover w/ Brackets Rails Under Bed 2-5/16" Ball Excluding Air Suspension
$878.62
- Stock: In Stock
- Brand: Draw-Tite
- Model: 9464-46 19308
Fits The Following Vehicles :
2009 - 2010 Dodge, Ram 1500, All Styles
2011 - 2018 RAM, 1500, Except w/Air Suspension
2019 - 2020 RAM, 1500, (Classic), Except w/Air Suspension
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.

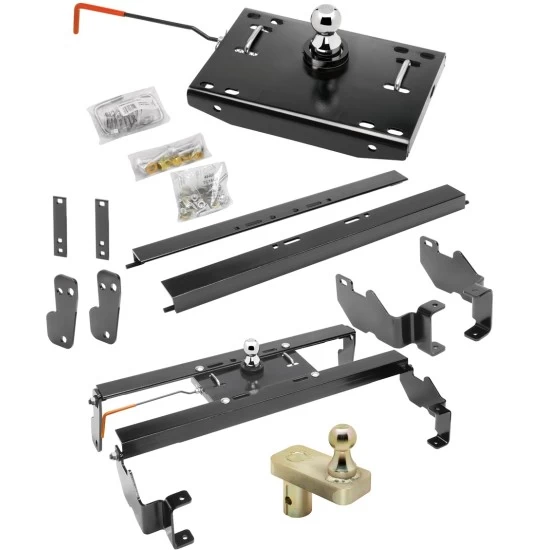

Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
5" Offset Extension 2-5/16" Ball
Magnetic Cover
Gooseneck Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
This Extension moves the center of the ball on your Draw-Tite Underbed Gooseneck Hitch for a better fit.
2009 - 2010 Dodge, Ram 1500, All Styles
2011 - 2018 RAM, 1500, Except w/Air Suspension
2019 - 2020 RAM, 1500, (Classic), Except w/Air Suspension
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
5" Offset Extension 2-5/16" Ball
Magnetic Cover
Gooseneck Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
| Part Number | 9464-46 |
| Brand | Draw-Tite |
| Gooseneck Head Rating | 30,000 lbs |
| Under-Bed Rails Rating | 12,000 lbs |
| Vertical Load | Head: 7,500 Rails: 3,000 |
| Ball Size | 2-5/16" |
| Installation Instructions |  |
Offset Ball Features:
5" Offset Extension, 2-5/16" Ball for Under-bed Gooseneck Heads (Do Not Store Inverted In Head)
5" Offset Extension, 2-5/16" Ball for Under-bed Gooseneck Heads (Do Not Store Inverted In Head)
| Part Number | 19308 |
| Rating | 20,000 lbs |
| Offset/Extension | 5" |
| Ball Size | 2-5/16" |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years:
09 10 11 12 13 14 15 16 17 18 19 20 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
