Draw-Tite Gooseneck Trailer Hitch w/ Hole Saw for 88-00 Chevy GMC C/K 1500 2500 3500 Series Turnover w/ Brackets Rails Under Bed 2-5/16" Ball

Fits The Following Vehicles

1988 - 1999     Chevrolet, C1500, All Styles
1988 - 1999     Chevrolet, C2500, All Styles
1988 - 2000     Chevrolet, C3500, Except Crew Cab
1988 - 1999     Chevrolet, K1500, All Styles
1988 - 1999     Chevrolet, K2500, All Styles
1988 - 2000     Chevrolet, K3500, Except Crew Cab     105 min
1988 - 1999     GMC, C1500, All Styles     105 min
1988 - 1999     GMC, C2500, All Styles     105 min
1988 - 2000     GMC, C3500, Except Crew Cab     105 min
1988 - 1999     GMC, K1500, All Styles     105 min
1988 - 1999     GMC, K2500, All Styles     105 min
1988 - 2000     GMC, K3500, Except Crew Cab

Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.

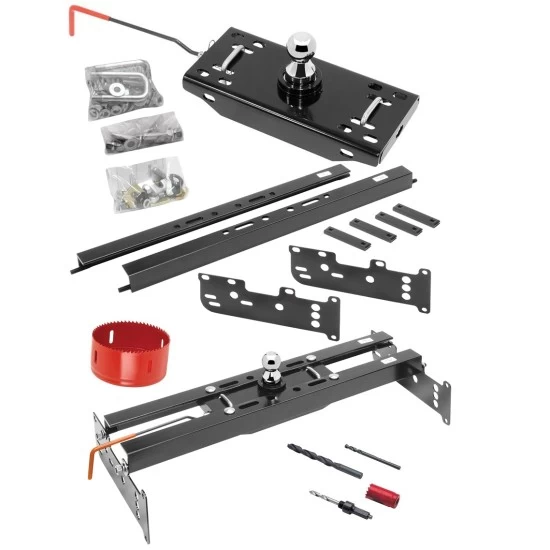

Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
Hole Saw Arbor w/Pilot Drill Bit
3-1/2" Hole Saw
Magnetic Cover

Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system


Part Number	9465-40
Brand	Draw-Tite
Gooseneck Head Rating	30,000 lbs
Under-Bed Rails Rating	12,000 lbs
Vertical Load	Head: 7,500 Rails: 3,000
Ball Size	2-5/16"
Installation Instructions
