Draw-Tite Gooseneck Trailer Hitch w/ Hole Saw for 99-19 Chevy GMC Silverado Sierra 1500 99-04 2500 LD Turnover w/ Brackets Rails Under Bed 2-5/16" Ball

This Wiring Fits The Following Vehicles:

1999 - 2002     Chevrolet, Silverado 1500, All Styles
2003 - 2006     Chevrolet, Silverado 1500, All Styles
2007 - 2013     Chevrolet, Silverado 1500, All Styles
2007     Chevrolet, Silverado 1500, (Classic)
2014 - 2019     Chevrolet, Silverado 1500, LD (Old Body Style) Does Not Fit MagneRide Magnetic Ride Suspension
2001 - 2002     Chevrolet, Silverado 1500 HD, All Styles
2003     Chevrolet, Silverado 1500 HD, All Styles
2005 - 2006     Chevrolet, Silverado 1500 HD, All Styles
2007     Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004     Chevrolet, Silverado 2500, 6.6 ft. Bed
1999 - 2002     GMC, Sierra 1500, All Styles
2003 - 2006     GMC, Sierra 1500, All Styles
2007 - 2013     GMC, Sierra 1500, All Styles
2007     GMC, Sierra 1500, (Classic)
2014 - 2019     GMC, Sierra 1500, LD (Old Body Style) Does Not Fit MagneRide Magnetic Ride Suspension
2001 - 2003     GMC, Sierra 1500 HD, All Styles
2005 - 2007     GMC, Sierra 1500 HD, All Styles
1999 - 2004     GMC, Sierra 2500, 6.6 ft. Bed

Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.

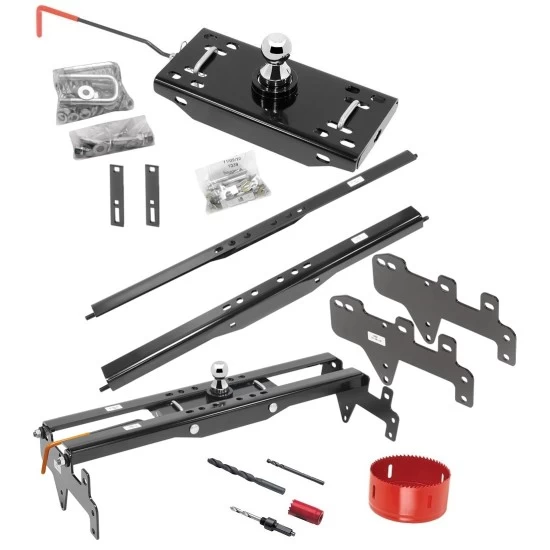

Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
Hole Saw Arbor w/Pilot Drill Bit
3-1/2" Hole Saw
Magnetic Cover

Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system


Part Number	9465-54
Brand	Draw-Tite
Gooseneck Head Rating	30,000 lbs
Under-Bed Rails Rating	17,000 lbs
Vertical Load	Head: 7,500 Rails: 4,250
Ball Size	2-5/16"
Installation Instructions
