Draw-Tite Gooseneck Trailer Hitch w/ In-Bed Wiring for 01-07 Chevy GMC Silverado Sierra 3500 Turnover w/ Brackets Rails Under Bed 2-5/16" Ball 8' Beds Only
$590.38
- Stock: In Stock
- Brand: Draw-Tite
- Model: 9465-45 50-97-410
Fits The Following Vehicles :
2001 - 2007 Chevrolet, Silverado 3500, 8 ft. Bed
2001 - 2007 GMC, Sierra 3500, 8 ft. Bed
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.

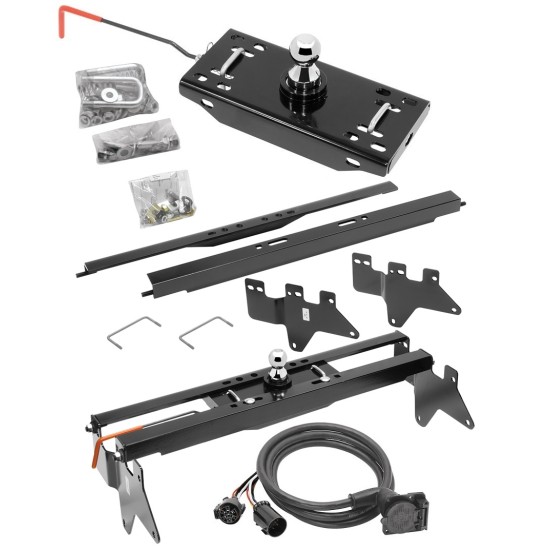

Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
7-Way Fifth Wheel Adapter Harness
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
2001 - 2007 Chevrolet, Silverado 3500, 8 ft. Bed
2001 - 2007 GMC, Sierra 3500, 8 ft. Bed
Draw-Tite has designed a Gooseneck Hitch System to meet your gooseneck towing needs. The secret of the system is in the rail kit. We've designed rail kits to fit your specific truck that can attach to the Hide-A-Goose Remov-A-Ball head. Easy install, reliable service.
Each Kit includes:
Hide-A-Goose Head
Custom Fit Under-Bed Rail Kit
Brackets, U-Bolts, Installation Hardware
2-5/16" Removable Gooseneck Ball
7-Way Fifth Wheel Adapter Harness
Magnetic Cover
Features:
Allows full use of pick-up bed area when hauling cargo
Turn the ball over and store it upside down when not in use
Locking pin handle accessible at drivers side rear wheel well
Round ball shank reduces rattle noise compared to competition
Spring Loaded Safety Chain Hookups
Powedercoated Steel
No alteration of OE exhaust systems required
Accommodates all standard vehicle suspensions
2-5/16" high strength chrome plated ball
Magnetic cover protects ball hole when not in use
Rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load, tested to SAE J2638 Static and Reese Dynamic Specs for 30,000 lbs. gross vehicle weight rating
Rail kits are rated to match manufacturer's vehicle weight ratings
Custom-fit under-bed mounting system
| Part Number | 9465-45 |
| Brand | Draw-Tite |
| Gooseneck Head Rating | 30,000 lbs |
| Under-Bed Rails Rating | 17,000 lbs |
| Vertical Load | Head: 7,500 Rails: 4,250 |
| Ball Size | 2-5/16" |
| Installation Instructions |  |
7-Way Fifth Wheel Adapter Harness Features:
9 foot 7-Way 90 degree connector molded to heavy duty 7-way insulated cable for fifth wheel or gooseneck trailer applications. Allows remote wiring in pickup beds or other hard to access areas. 90 degree molded from flame retardant material. Features a patented mounting bracket that allows for installation in virtually all pickup models and styles and includes self-tapping stainless steel mounting screws. Manufactured with UL listed 10/2, 12/1 and 14/4 jacketed cable.
| Part Number | 50-97-410 |
| Brand | Bargman |
| Length | 9 feet |
| Warranty | 1 Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years:
01 02 03 04 05 06 07 2001 2002 2003 2004 2006 2007
