Economy Brake Control Wiring - Convert 4-Way to RV 7-Way Plug Color Coded Wires

Economy Brake Control Wiring - Convert 4-Way to RV 7-Way Plug Color Coded Wires

Name: Economy Brake Control Wiring - Convert 4-Way to RV 7-Way Plug Color Coded Wires
Brand: Tekonsha
Price: 59.39 USD
Availability: InStock

Model: 85060 7418411 20212

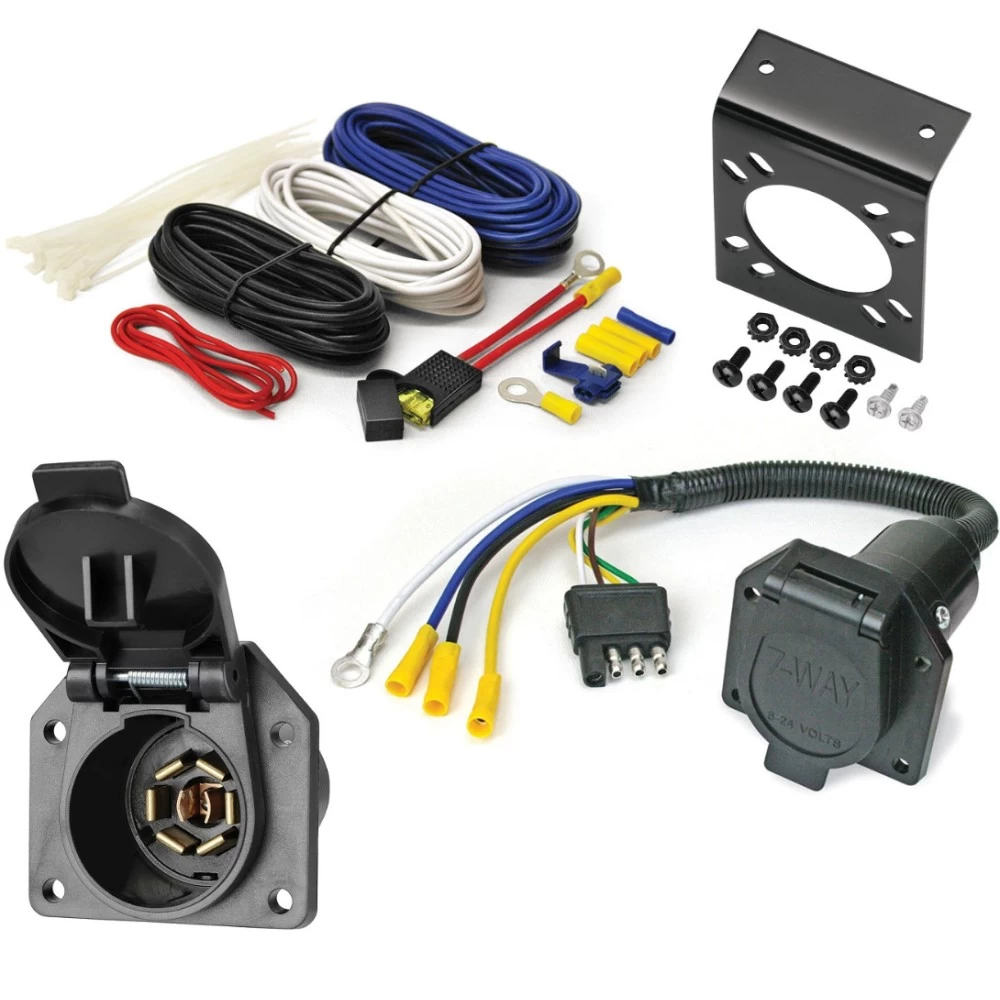

Includes Everything Pictured:
Prewired Adapter 7-Way to 4-Way Adapter
Mounting Bracket, 7-Way w/ Hardware
Trailer Brake Controller Installation Kit, Wire and Hardware
Installation Hardware

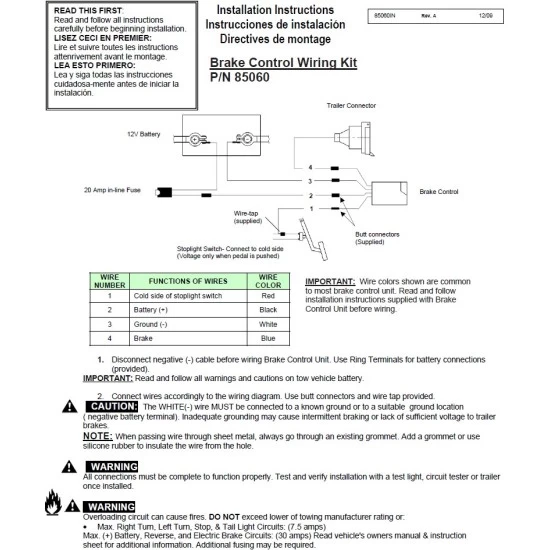

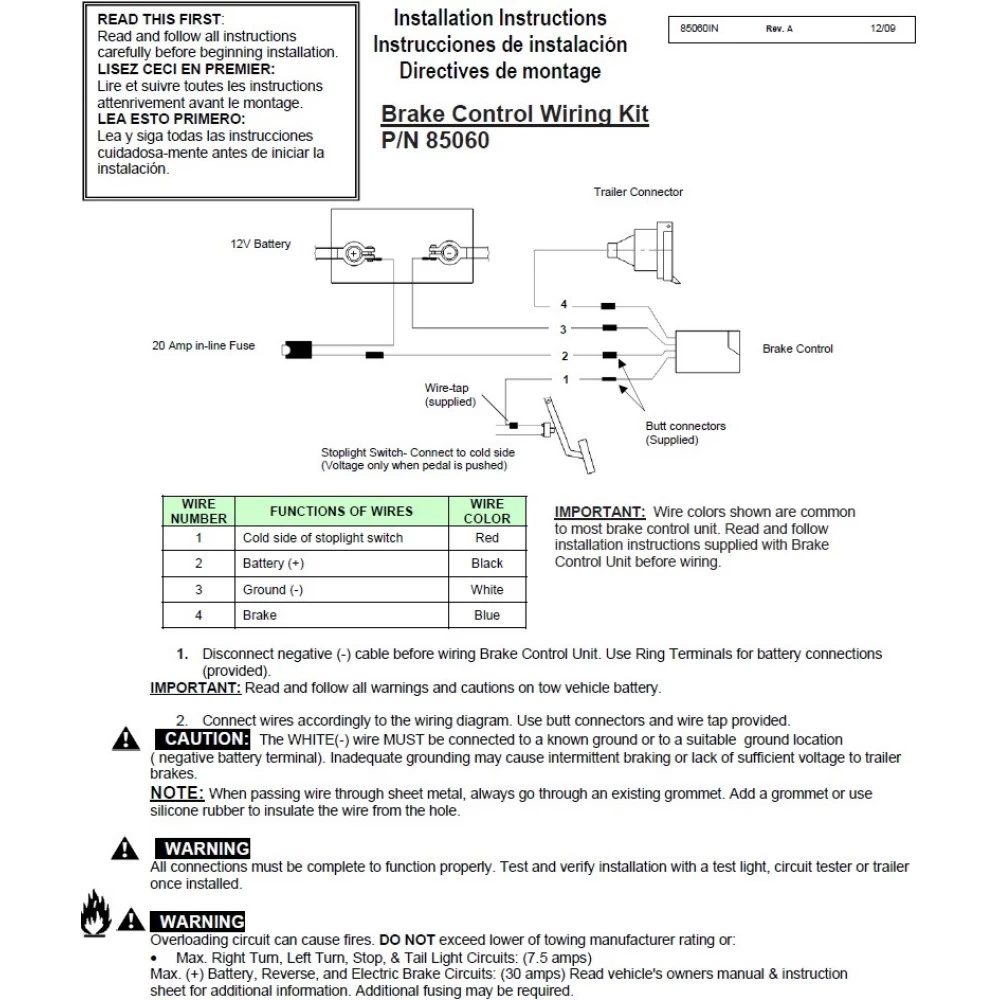

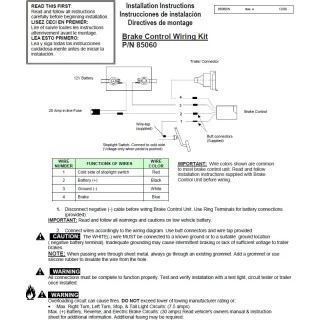

Installation Instructions

If you plan on towing a trailer or RV with electric brakes your vehicle must have a corresponding 7-Way RV plug and wire that runs to your brake controller unit inside the vehicle. This bundle accomplishes that. If your vehicle only has a 4-Flat connector, this kit is necessary to convert your existing 4-Flat into a 7-Way. In addition this kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle. It is easy to install, OEM style Wiring for up to 1-3 axles.

If your vehicle does not have any trailer wiring connection on it whatsoever, you will first need to purchase a regular 4-Flat Wiring Kit from our website, and then purchase this kit in to complete the job. This kit requires that you already have a 4-Flat wiring for installation.

This is an economy kit with only the necessary components required for the brake controller install and function. It does not include an optional auxilary wire which runs from the battery to the 7-Way which can be used to re-charge a battery on your trailer. If needed this wire can be purchase seperately CLICKING HERE or you can purchase our Pro Kit instead by CLICKING HERE

For any questions or installation assistance please email or call us at 702-374-8999

Prewired Adapter Features:

The REESE Towpower pre-wired round blade 7-way connector, provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.

Provide versatility in going from 4 way flat to 7 way standard plug
Per wired with 4 flat and wired with butt connects and ring terminal
Easy wiring featuring prewired with 4 flat and wired with butt connects and ring terminal
Features non corroding brass terminals
Includes standard 7 way bracket
Non-corrosive thermo plastic construction
Ring terminal already mounted to ground wire
12 volt and brake wires have butt connectors already attached

Brake Controller Installation Kit Features:

This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.

OEM Style wiring harness
Easy to install
1-3 axles

Founded in 1952, the Reese brand has become a household name in the heavy-duty towing industry. With proven designs that exceed the industry standards, Reese has become the brand of choice when performance is the expectation. Reese has been the leader in towing systems for more than 60 years. Over those years, much has changed within the industry with tow vehicles and their frames made lighter while the trailers have become heavier. The technology utilized yesterday can no longer be used in today’s world. Reese purchases metals from high quality steel mills with history of performance. Metals are routinely audited by third party labs for chemistry.

See Full Description

$59 ³⁹ $59.90 1% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Estimate

Add to Wish List

$59.90 $59 ³⁹

Pay in 4 interest-free installments of with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Tekonsha
Model: 85060 7418411 20212
Includes: 4-Flat to 7-Way Adapter Economy Kit

Description

Prewired Adapter Features:

Provide versatility in going from 4 way flat to 7 way standard plug
Per wired with 4 flat and wired with butt connects and ring terminal
Easy wiring featuring prewired with 4 flat and wired with butt connects and ring terminal
Features non corroding brass terminals
Includes standard 7 way bracket
Non-corrosive thermo plastic construction
Ring terminal already mounted to ground wire
12 volt and brake wires have butt connectors already attached

Brake Controller Installation Kit Features:

OEM Style wiring harness
Easy to install
1-3 axles

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 85060 , 7418411 , 20212 , Tekonsha , Economy , Brake , Control , Wiring , - , Convert , 4-Way , to , RV , 7-Way , Plug , Color , Coded , Wires
