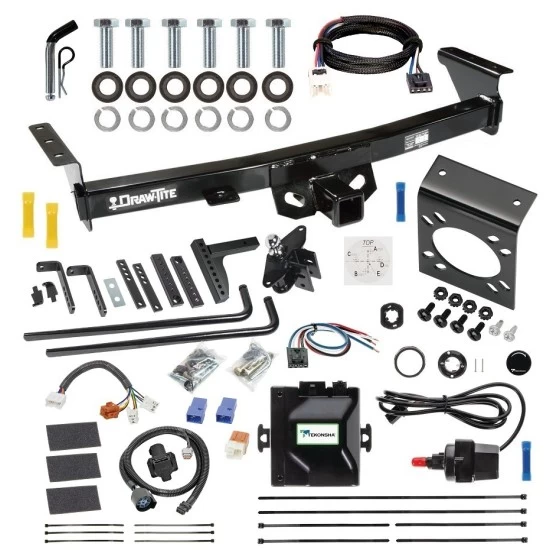

For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ 8K Round Bar Weight Distribution Hitch w/ 2-5/16" Ball + Pin/Clip + Tekonsha Prodigy iD Bluetooth Wireless Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite

This Bundle Fits The Following Vehicles:
2005-2024 Nissan, Frontier, All Styles

This Bundle Includes the Following Parts:
Trailer Hitch
8K Round Bar Weight Distribution Hitch w/ 2-5/16 inch Ball
Pin/Clip
Tekonsha Prodigy iD Bluetooth Wireless Brake Control
Plug & Play BC Adapter
7-Way RV Wiring

List of fitment years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 2024

The hitch is hidden behind your bumper, and does not require drilling

Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 800 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Nissan Frontier and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 5,000 lbs. GTW and up to 750 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 800 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Suzuki Equator, Nissan Frontier

Integrated Sway Control Weight Distribution Kit, 8,000 lbs. Capacity, Shank Included Manufactured by: Reese
The REESE® Pro Round Bar weight distribution system is engineered to provide more features and superior ride performance to other systems. Designed to evenly distribute weight and reduce trailer sway.
• Designed to improve stability for added ride control and security
• 2-5/16 inch hitch ball - Preinstalled and torqued to proper specifications
• Includes 8.5” deep drop shank – For today’s taller trucks
• No-drill, clamp on brackets (fits up to 7” Trailer Frames)
• High strength steel head and welded hitch bar
• Tapered spring bars provide constant weight distribution over the axles for superior ride comfort
• Fits bottom mount couplers
• Powder Coat Finish for durability and corrosion resistance
• Limited Lifetime Warranty
• System includes: Head with preinstalled ball, tapered spring bars, deep drop shank, control brackets, lift-assist bar and all hardware necessary for an easy install

Trailer Hitch Pin & Clip, Fits 2 in. Receiver, 5/8 in. Pin Diameter Manufactured by: Reese Towpower
REESE Towpower 5/8 In. pin and clip is designed to fit Class III / IV, Reese 33, 36, 36, 37, 44, and 51 series hitches with 2 In. hitch boxes. This pin is 5/8 inch in diameter and includes the spring cotter pin. The PVC comfort grip is designed to protect the hands and allow for a better grip while inserting or removing the pin and clip.
• Black comfort grip on both pin and clip
• 5/8 In. diameter pin and clip set
• Easier to pick up
• Always keep extra pin and clips on hand for safe towing
• Class III and IV
• 1 year limited warranty

Tow Harness, 7-Way Manufactured by: Tekonsha
T-One Connectors require no splicing of vehicle wires. Simply locate your vehicles wiring harness connector, unplug the connection and insert the T-One Connector into the vehicle’s harness. No special tools required.
• Exact replacement for damaged factory wiring harnesses
• Installs in seconds on vehicles not factory pre-wired
• Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
• Connects directly to standard factory connector
• Attractive point-of-purchase packaging

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

Prodigy® iD Smart Phone Configured Brake Controller for Trailers with 1-4 Axles, Black  Manufactured by: Tekonsha
The Prodigy iD is a first of its kind brake controller that seamlessly integrates a color LED display into your vehicle's dash providing easy-to-read diagnostics and alerts. Once installed, enjoy fingertip control using the rotary knob to easily adjust settings. Put complete control in your hands by downloading the Tekonsha Edge mobile app, allowing you to easily set Power and Boost, store multiple trailer and driver settings, and much more. With a unique ability to switch between Proportional and Timed braking, the Prodigy iD is the premiere brake control option to meet your every towing need.
• Seamlessly integrates into your vehicle for a clean in-dash appearance
• Fingertip control allows you to easily adjust brake control settings
• Color LED display provides easy-to-read diagnostics and alerts
• Tekonsha EDGE mobile app puts complete control in your hands
• Store multiple trailers and drivers
• Manual override using the rotary control knob
• Switch between Proportional and Timed braking depending on your towing need

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
