For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite

For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
For 2005-2024 Nissan Frontier Trailer Hitch Tow PKG w/ Pro Series Pilot Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring By Draw-Tite
$379.00
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 75282 118266 20212 80550 3050-P

Applies to this product only

This Bundle Fits The Following Vehicles:
2005-2024 Nissan, Frontier, All Styles

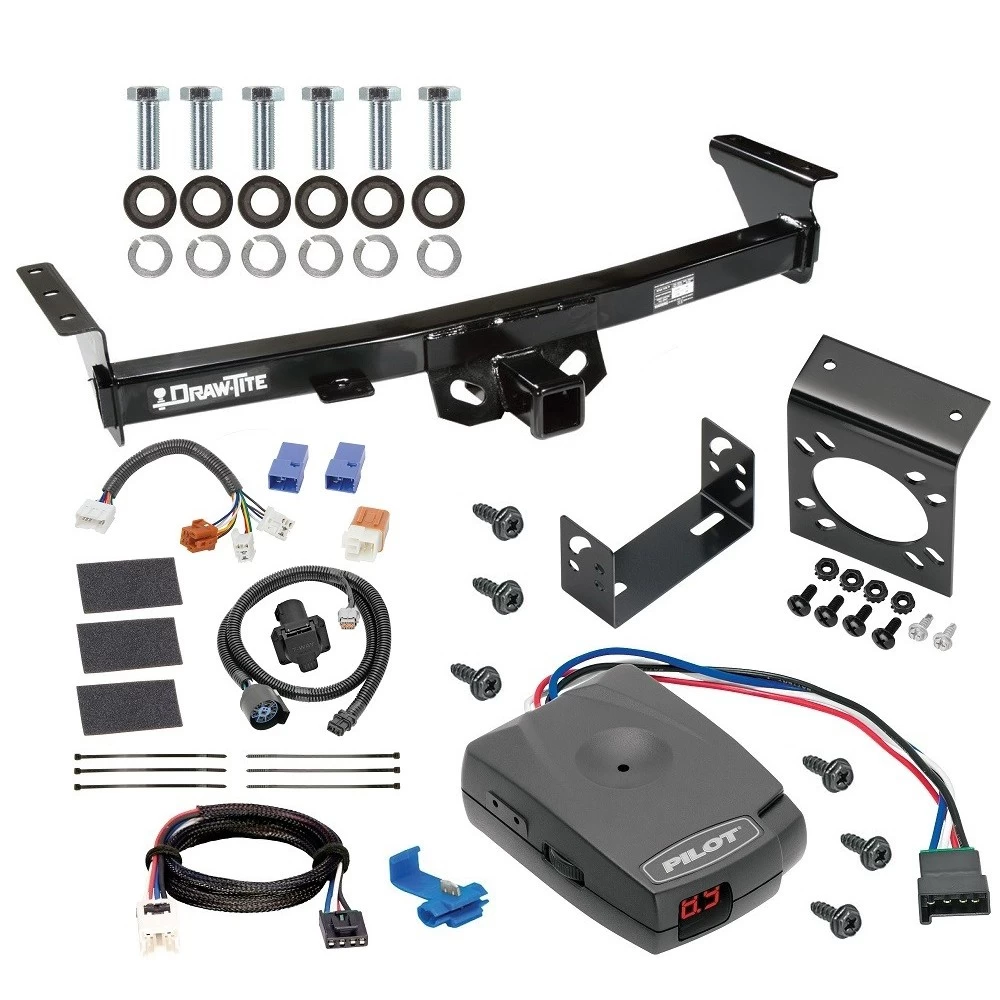

This Bundle Includes the Following Parts:
Trailer Hitch
Pro Series Pilot Brake Control
Plug & Play BC Adapter
7-Way RV Wiring

List of fitment years: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 2024

The hitch is hidden behind your bumper, and does not require drilling

Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 800 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Nissan Frontier and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 5,000 lbs. GTW and up to 750 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 800 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Suzuki Equator, Nissan Frontier


Tow Harness, 7-Way Manufactured by: Tekonsha
T-One Connectors require no splicing of vehicle wires. Simply locate your vehicles wiring harness connector, unplug the connection and insert the T-One Connector into the vehicle’s harness. No special tools required.
• Exact replacement for damaged factory wiring harnesses
• Installs in seconds on vehicles not factory pre-wired
• Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
• Connects directly to standard factory connector
• Attractive point-of-purchase packaging


Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging


Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles Manufactured by: Pro Series
Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.
• Large easy to read dual digital display shows:
• Properly wired control
• Voltage output to brakes (vs. a percentage)
• Connection to trailer
• Dark smoke lens ideal for direct light applications; performs better than red lens
• Protection against short circuit/loss of ground
• Microprocessor allows control to be mounted upside down and still have a readable display
• Standard mounting bracket included with optional ball mount available
• For use on any 12 volt negative ground system
• Plug & Play feature allows quick and easy connection
• Limited lifetime warranty


Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.

Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 8,000 lbs.
Hitch Class III
Material Steel
Maximum Tongue Weight 750 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 800 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2 in.
Receiver Type Square Tube
