Front Mount Trailer Tow Hitch Hardware Fastener Kit For 20‑24 Jeep Gladiator Exc Mojave 18‑24 Wrangler JL Unlimited New Body Style 2" Receiver

Name: Draw-Tite Hitch Hardware Kit for Jeep Gladiator, Wrangler JL
Brand: Draw-Tite
Price: 56.43 USD
Availability: InStock

Model: HWKIT3(65079F)

This Hitch Hardware Fastener Kit Fits The Following Vehicles:

2020 - 2024 Jeep, Gladiator, Except Mojave Edition
2018 - 2024 Jeep, Wrangler, JL (New Body Style)
2018 Jeep, Wrangler, JL
2018 Jeep, Wrangler, JL, Unlimited
2019 - 2021 Jeep, Wrangler, All Styles
2019 - 2021 Jeep, Wrangler, Unlimited

(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 65079

Installation Instructions:

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 18 19 20 21 22 23 24 2018 2019 2020 2021 2022 2023 2024

See Full Description

$56 ⁴³ $89.21 37% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$89.21 $56 ⁴³

Pay in 4 interest-free installments of $14.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: HWKIT3(65079F)
Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch

Be the first to ask a question.

Description

This Hitch Hardware Fastener Kit Fits The Following Vehicles:

Installation Instructions:

Questions or Comments? Call 702-374-8999

Tags: HWKIT3 , Draw-Tite , Hardware , Kit , Class , 3 , Trailer , Hitch

Get Expert Help

Front Mount Trailer Tow Hitch Hardware Fastener Kit For 20-24 Jeep Gladiator Exc Mojave 18-24 Wrangler JL Unlimited New Body Style 2" Receiver Install Notes

Installation Instructions for Jeep Wrangler JL (Front Mounted Receiver)

Part Numbers:

65079
CQT65079

Tools Required:

Ratchet
Torque Wrench
8mm Socket
16mm Socket
Utility Knife
Flat-Head Screwdriver
Tape Measure
Marker

Step-by-Step Instructions:

Remove the Front Plastic Air Dam:
- Use a flat-head screwdriver to remove the (8) push pins located on the forward side of the fascia.
- Using an 8mm socket, remove the (2) lower bolts securing the air dam.
- Set the fascia aside for reinstallation.
Remove the Front Metal Air Dam:
- Use a 16mm socket to remove the (2) bolts located on each side of the frame.
- Lift the metal air dam straight up and set it aside. Return it to the customer if not reinstalled.
Raise the Hitch into Position:
- Position the hitch between the frame rails and align it with the existing holes in the frame.
Install the Fasteners:
- Attach the front face of the hitch to the frame using the provided:
  - (2) M10 bolts
  - (2) 7/16” conical washers
- Place (2) handle nuts inside the frame and align them with the vertical attachment holes.
- Install the 1/2”-13 x 1.75” bolts with 1/2” conical washers in the lower holes.
- Install the 1/2”-13 x 1.75” bolts with 1/2” lock washers in the upper holes of the hitch.
Torque the Fasteners:
- Torque all 1/2” fasteners to 50 lb-ft (68 N-m).
- Torque all M10 fasteners to 38 lb-ft (52 N-m).
Trim the Plastic Air Dam:
- Measure and mark a 3” wide x 3” tall section in the center of the plastic air dam.
- Use a utility knife to cut out the marked section.
- See Figure 2 for reference.
Reinstall the Plastic Air Dam:
- Reinstall the trimmed plastic air dam using the push pins and bolts removed in Step 1.

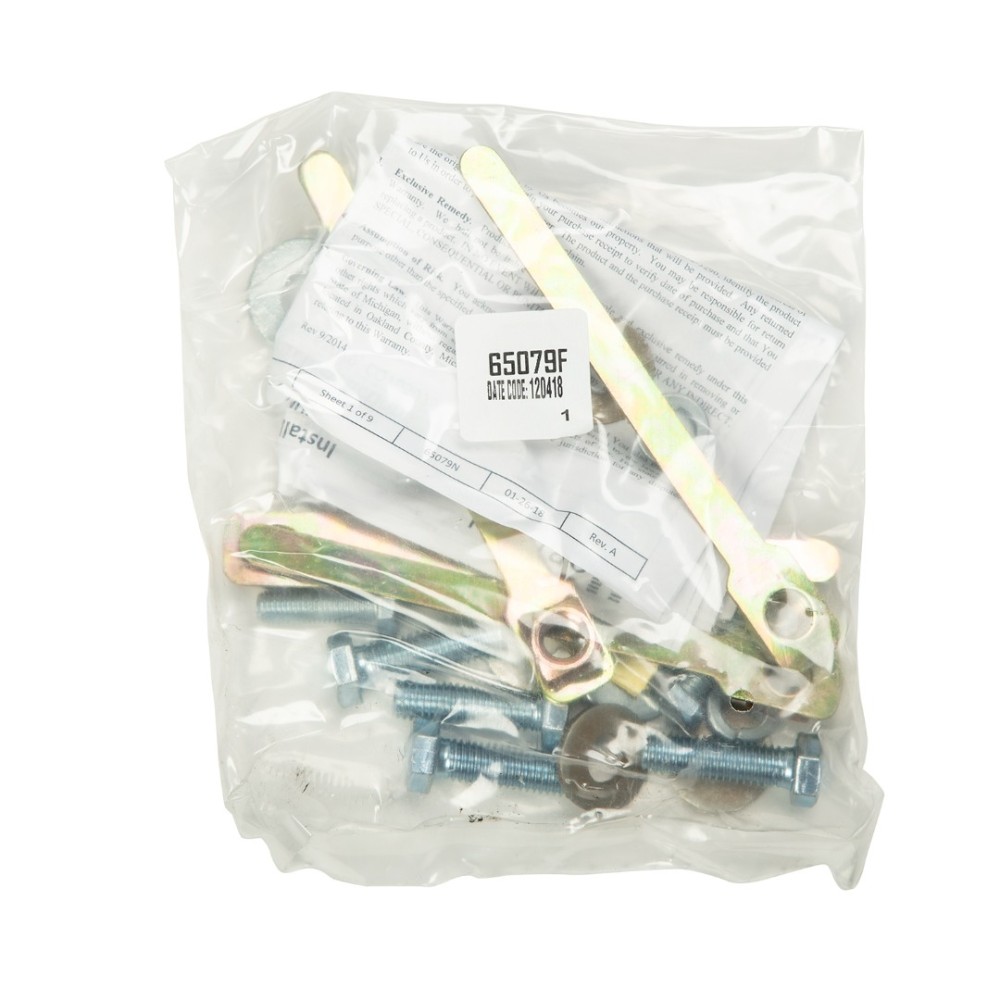

Hardware List:

(4) 1/2”-13 x 1.75” Hex Bolts
(2) M10 x 1.50 x 35 Hex Bolts
(2) 1/2” Lock Washers
(4) 1/2” Conical Washers
(2) 7/16” Conical Washers
(2) Handle Nuts
(6) 1/2” Flat Washers

Safety Notes:

Periodically check the hitch to ensure all fasteners are tight and components remain secure.
If the hitch is removed, plug all holes in the vehicle frame to prevent water and exhaust fumes from entering.
Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
Maximum Cargo Capacity: 500 lbs.
Maximum Winch Line Pull: 9,000 lbs.

Manufacturer Notes:

Always wear eye protection when working under the vehicle.
Do NOT use a torch to cut or enlarge holes in the frame or body panels.
This product complies with SAE J684 and VESC Regulation V-5 safety standards.

End of Instructions
