Product Details
- Brand: Fulton
- Model: 44311H0301
- UPC: 016118126785
- Includes: A-Frame Coupler
Get Expert Help

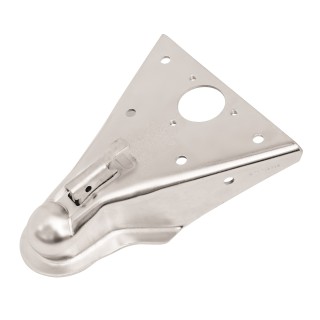

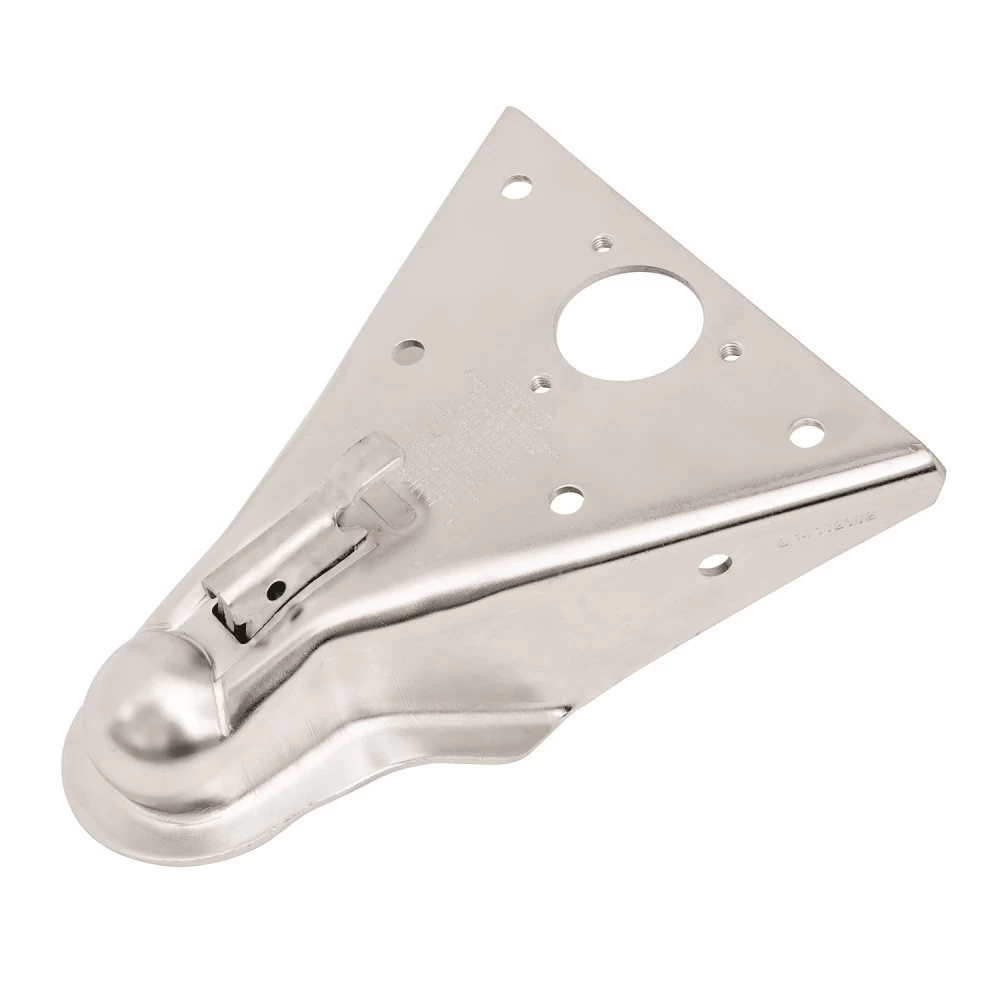

Fulton A-Frame Trailer Coupler Tongue Bolt-On 11,000 lbs 2-5/16" Ball Wedge Latch Latch Zinc Install Notes
Installation and Maintenance Instructions for Stamped Couplers
Specifications:
- Rated according to SAE J684.
- Minimum tongue overlap: 6.5 inches.
Tools Required:
- Torque wrench
- Grade 5 bolts with locknuts
- SAE 30 wt. motor oil
- Grease for ball pocket
Step-by-Step Instructions:
Weld-On Instructions:
- All welding must be performed by an AWS-certified welder.
- Ensure the coupler’s internal stop is butted against the trailer tongue for maximum overlap.
- Weld both sides and the top using:
- Straight Tongue Couplers: 1/8” minimum fillet weld.
- A-Frame Couplers: 3/16” minimum fillet weld.
- Remove any excess paint or primer from the ball pocket and latching mechanism after installation.
Bolt-On Instructions:
- Straight Tongue Couplers:
- Preferred method: Use (4) 3/8” grade 5 bolts through side holes.
- Alternate method: Use (2) 3/8” grade 5 bolts with locknuts torqued to SAE proof load specifications. Ensure no deformation of the trailer tongue end.
- A-Frame Couplers:
- Use the available mounting holes to bolt the coupler to the trailer tongue using grade 5 hardware with locknuts.
- Torque bolts to SAE proof load specifications:
- Ø 3/8”: 23 ft-lbs.
- Ø 1/2”: 55 ft-lbs.
- Ø 5/8”: 110 ft-lbs.
- Adjustable Height Channel Couplers:
- For tongue heights of 6” or less, gussets are required.
- Weld a 1/4” minimum fillet weld around the mounting bracket.
- Insert (2) 5/8” x 5” grade 5 bolts through the bracket and coupler, tightening to 100-110 ft-lbs.
Coupling Instructions:
To Couple:
- Block trailer wheels.
- Align the hitch ball beneath the coupler.
- Open the locking lever and lower the coupler over the hitch ball until the ball is fully seated.
- Close the locking lever, ensuring the latch engages and the ball clamp is securely beneath the ball.
- Optionally, insert a locking pin through the lever.
To Uncouple:
- Block trailer wheels.
- Open the locking lever and raise the coupler off the hitch ball.
- Return the lever to the closed position.
Maintenance:
- Perform the following at least annually:
- Check welds and bolt torque.
- Grease the ball pocket and clamp.
- Oil pivot points with SAE 30 wt. motor oil.
- Inspect and replace retaining pins as needed.
- Keep the ball pocket clean to prevent debris buildup.
Safety Notes:
- Never exceed the weight ratings of the coupler, hitch, vehicle, or trailer.
- Always use the correct hitch ball size as indicated on the coupler.
- Inspect coupler components regularly for wear or damage.
- Secure trailer safety chains and confirm lighting complies with SAE J684 standards.
Warranty Information:
- Limited Warranty:
- Bulldog and Fulton: 5 years.
- Pro-Series and Reese Towpower: 1 year.
- Exclusions:
- Normal wear and tear.
- Damage due to misuse, overloading, improper installation, or maintenance.
- To file a claim:
- Contact Cequent Performance Products, Inc. at 1-800-632-3290.
- Provide proof of purchase and the product model number.
Additional Notes:
- Replacement parts are available through authorized distributors.
- Always use parts of equal or superior quality for repairs.
