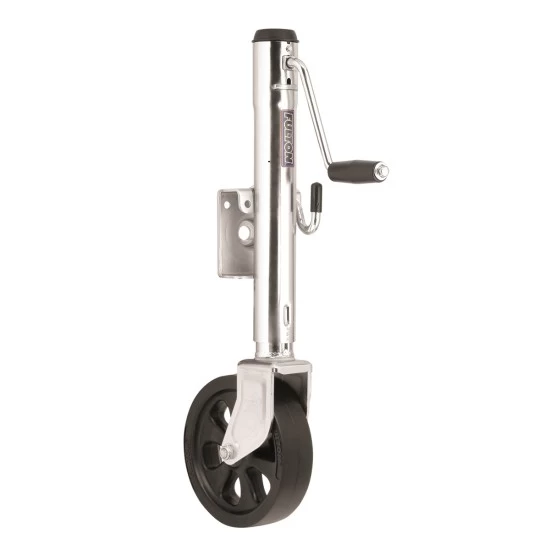

Fulton Bolt-Thru Swivel Trailer Jack 1,200lbs w/ 8" Caster Wheel 10" Lift Weld-On

Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 1/2" pull pin models. The Fulton brand boltthru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum  support. All mounts fit up to a 3" x 5" trailer frame.

• Fits: 3"x3", 3"x4", and 3"x5" trailer frames
• Lift Capacity: 1,200 lbs
• Retracted Bracket Height: 14.8" from bracket to bottom
• Travel/Lift: 10"
• Extended Bracket Height: 24.8"
• Clearance: 10.5" from bracket to top
• Wheel size: 8" diameter
• Spring loaded Pull pin diameter: 1/2"
• Finish: Z-Max 600 zinc
• 5-Year limited warranty

Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others
