Fulton Bolt-Thru Swivel Trailer Jack 1,500 lbs 12" Lift Bolt-On

Fulton Bolt-Thru Swivel Trailer Jack 1,500 lbs 12" Lift Bolt-On

Fulton Bolt-Thru Swivel Trailer Jack 1,500 lbs 12" Lift Bolt-On
Fulton Bolt-Thru Swivel Trailer Jack 1,500 lbs 12" Lift Bolt-On
Home Boat and Marine Boat Trailer Jacks Bolt-Thru Style Swivel Bracket Jack
0 reviews - Write a review

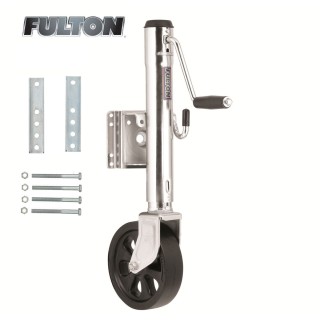

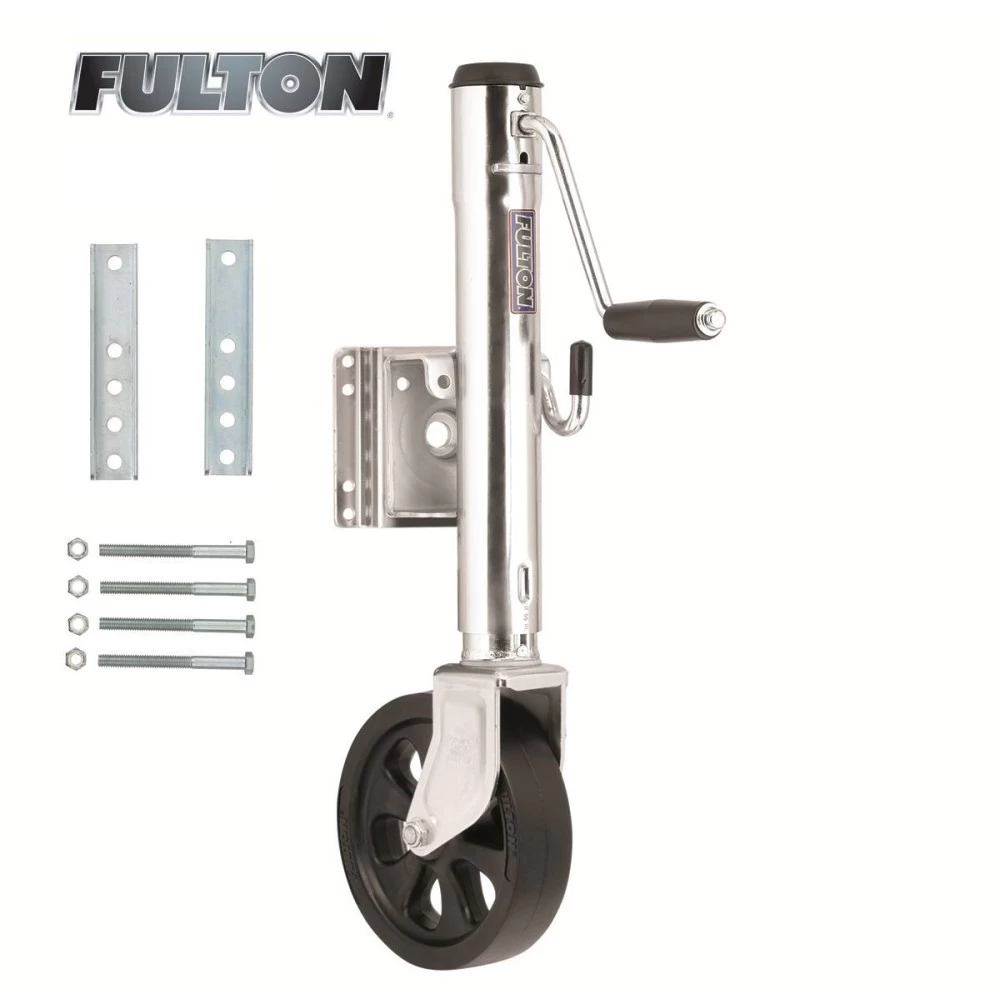

Fulton Bolt-Thru Swivel Trailer Jack 1,500 lbs 12" Lift Bolt-On
$131.87
  • Stock: In Stock
  • Brand: Fulton
  • Model: XP15L 0301
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

Fulton Marine and Recreational Trailer Jack (Bolt-On Hardware Included)


Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. The Fulton brand bolt-thru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.


Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift Capacity: 1,500 lbs
  • Retracted Bracket Height: 13.1" from bracket to bottom
  • Travel/Lift: 12"
  • Extended Bracket Height: 25.1"
  • Clearance: 12.4" from bracket to top
  • Wheel size: 6" diameter dual wheels
  • Spring loaded Pull pin diameter: 1/2"
  • Finish: Z-Max 600 zinc
  • 5-Year limited warranty



Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others

Specification
Jack Style Bolt-On/Weld-On
Finish Zinc
Static Capacity 1500
Lift Capacity 1500
Lift Style Sidewind
Travel 12"
Retracted 13.0"
Extended 25.0"
Clearance 14.4"
Pull Pin Diameter 1/2"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel Yes
Foot 8" Wheel
Jack Shape Round
Description Facts Additional 2" of Travel, 8" Diameter Spoked Wheel, Bolt-On, Mounting Hardware for up to 5" Frame Included

Write a review

Note: HTML is not translated!
Rating
Bad Good

Be the first to ask a question.

Tags: XP15L , 0301 , Fulton , Marine , Trailer , Jack , 1500 , lbs. , Capacity , Side , Wind , Bolt-On , Side , Mount , 12 , inch , Travel
