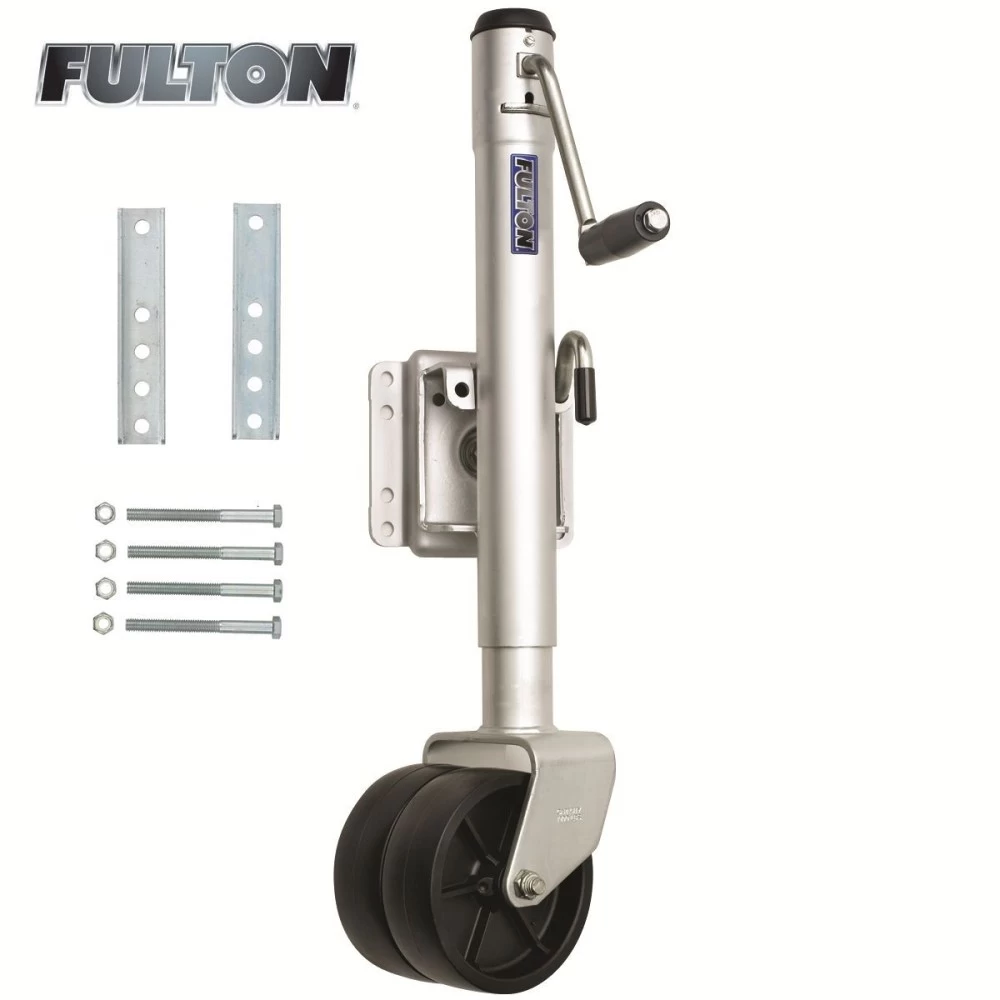

Fulton Bolt-Thru Swivel Trailer Jack 1,500 lbs w/ Dual Wheels 12" Lift Bolt-On
Fulton Bolt-Thru Swivel Trailer Jack 1,500 lbs w/ Dual Wheels 12" Lift Bolt-On

Fulton Bolt-Thru Swivel Trailer Jack 1,500 lbs w/ Dual Wheels 12" Lift Bolt-On

Model: XPD15L0301
Fulton Marine and Recreational Trailer Jack (Bolt-On Hardware Included)


Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. The Fulton brand bolt-thru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.


Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift Capacity: 1,500 lbs
  • Retracted Bracket Height: 13.1" from bracket to bottom
  • Travel/Lift: 12"
  • Extended Bracket Height: 25.1"
  • Clearance: 12.4" from bracket to top
  • Wheel size: 6" diameter Dual Wheels
  • Spring loaded Pull pin diameter: 1/2"
  • Finish: Z-Max 600 zinc
  • 5-Year limited warranty


Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others

$135 73 $187.50 28% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$187.50 $135 73

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

  • Brand: Fulton
  • Model: XPD15L0301
  • UPC: 783192006356
  • Includes: Bolt-Thru Swivel Jack

Specification
Jack Style Bolt-On/Weld-On
Finish Zinc
Static Capacity 1500
Lift Capacity 1500
Lift Style Sidewind
Travel 12"
Retracted 13.1"
Extended 25.1"
Clearance 12.4"
Pull Pin Diameter 1/2"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel Yes
Foot Dual Wheel
Jack Shape Round
Description Facts Dual Wheel, Additional 2" of Travel, 6" Diameter Wheels, Bolt-On, Mounting Hardware for up to 5" Frame Included

Be the first to ask a question.

Write a review

Note: HTML is not translated!
Rating
Bad Good

Description

Fulton Marine and Recreational Trailer Jack (Bolt-On Hardware Included)


Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. The Fulton brand bolt-thru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum support. All mounts fit up to a 3" x 5" trailer frame.


Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift Capacity: 1,500 lbs
  • Retracted Bracket Height: 13.1" from bracket to bottom
  • Travel/Lift: 12"
  • Extended Bracket Height: 25.1"
  • Clearance: 12.4" from bracket to top
  • Wheel size: 6" diameter Dual Wheels
  • Spring loaded Pull pin diameter: 1/2"
  • Finish: Z-Max 600 zinc
  • 5-Year limited warranty


Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others
