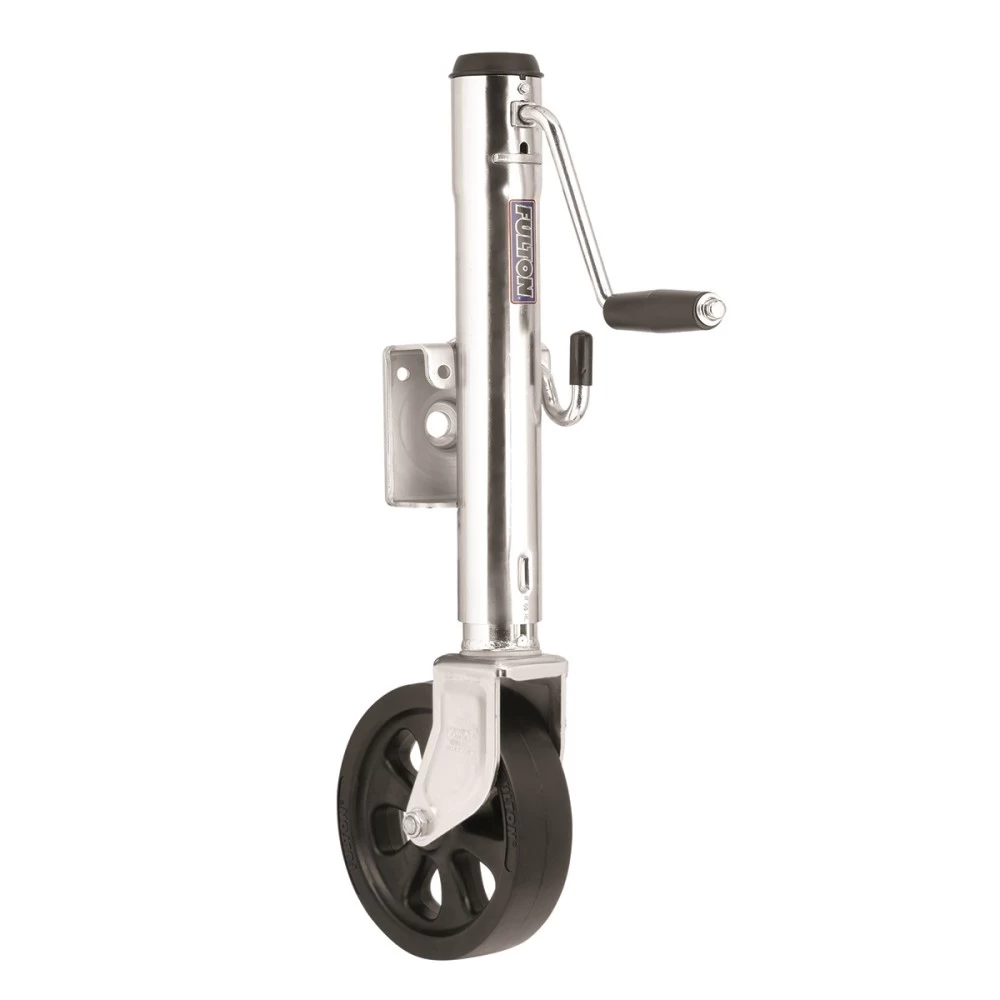

Fulton Bolt-Thru Swivel Trailer Jack 1,500lbs w/ 8" Caster Wheel 10" Lift Weld-On 13.6" Retracted
Fulton Bolt-Thru Swivel Trailer Jack 1,500lbs w/ 8" Caster Wheel 10" Lift Weld-On 13.6" Retracted

Fulton Bolt-Thru Swivel Trailer Jack 1,500lbs w/ 8" Caster Wheel 10" Lift Weld-On 13.6" Retracted

Model: XP15WC0301
Fulton Marine and Recreational Trailer Jack (P9012-00 Weld-On Mount & Hardware Sold Separately)

This model has Improved Castering Performance - Yoke/Wheel Swivel Independent of Inner Tube

Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 1/2" pull pin models. The Fulton brand boltthru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum  support. All mounts fit up to a 3" x 5" trailer frame.

Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift capacity: 1,500 lbs
  • Retracted Bracket Height: 13.6" from bracket to bottom
  • Travel/Lift: 10"
  • Extended Bracket Height: 23.6"
  • Clearance: 12.4" from bracket to top
  • Wheel size: 8" diameter
  • Spring loaded Pull pin diameter: 1/2"
  • Finish: Z-Max 600 zinc
  • 5-Year limited warranty


Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others

$131 25 $168.48 22% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$168.48 $131 25

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

  • Brand: Fulton
  • Model: XP15WC0301
  • UPC: 016118245295
  • Includes: Bolt-Thru Swivel Jack

Specification
Jack Style Bolt-On/Weld-On
Finish Zinc
Static Capacity 1500
Lift Capacity 1500
Lift Style Sidewind
Travel 10"
Retracted 13.6"
Extended 23.6"
Clearance 12.4"
Pull Pin Diameter 1/2"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel Yes
Foot 8" Wheel
Jack Shape Round
Description Facts Improved Castering Performance - Yoke/Wheel Swivel Independent of Inner Tube, 8" Diameter Spoked Wheel, Weld-On, P9012-00 Weld-On Mount & Hardware SOLD SEPARATELY

Be the first to ask a question.

Write a review

Note: HTML is not translated!
Rating
Bad Good

Description

Fulton Marine and Recreational Trailer Jack (P9012-00 Weld-On Mount & Hardware Sold Separately)

This model has Improved Castering Performance - Yoke/Wheel Swivel Independent of Inner Tube

Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 1/2" pull pin models. The Fulton brand boltthru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum  support. All mounts fit up to a 3" x 5" trailer frame.

Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift capacity: 1,500 lbs
  • Retracted Bracket Height: 13.6" from bracket to bottom
  • Travel/Lift: 10"
  • Extended Bracket Height: 23.6"
  • Clearance: 12.4" from bracket to top
  • Wheel size: 8" diameter
  • Spring loaded Pull pin diameter: 1/2"
  • Finish: Z-Max 600 zinc
  • 5-Year limited warranty


Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others
