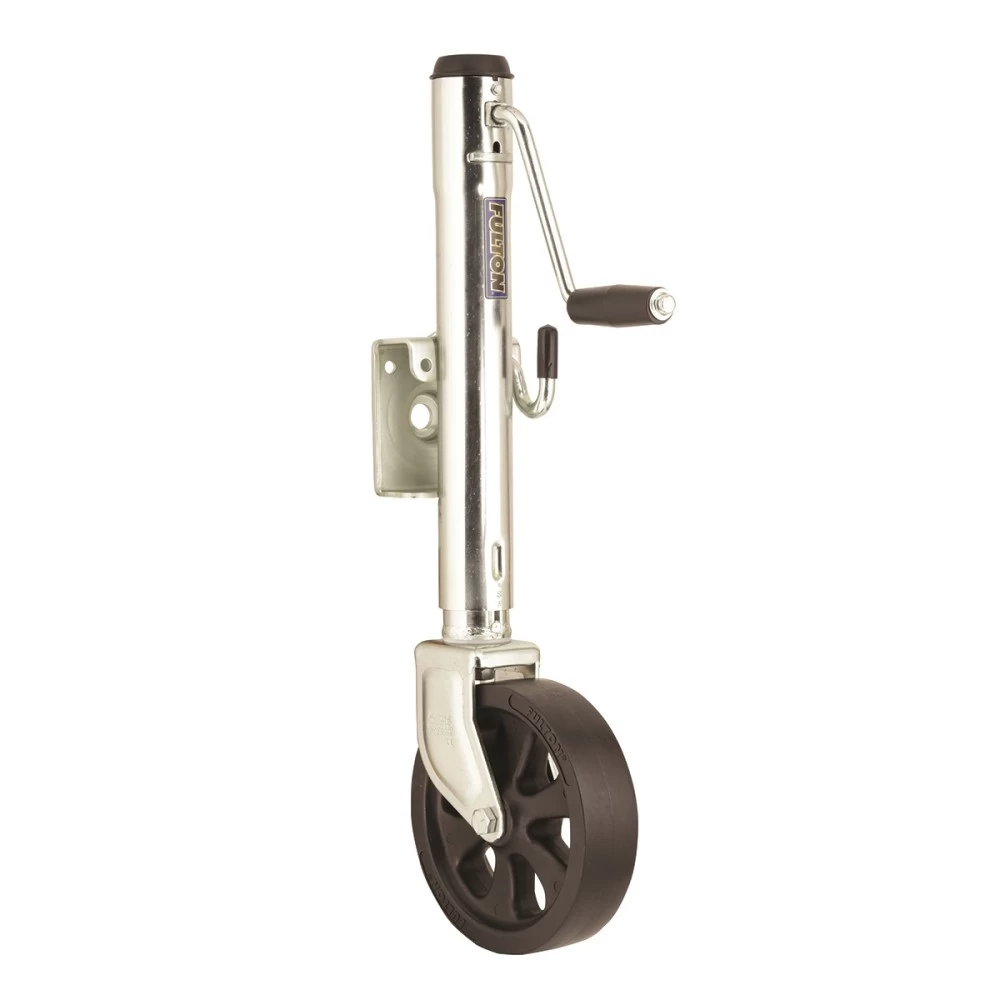

Fulton Bolt-Thru Swivel Trailer Jack 1,500lbs w/ 8" Caster Wheel 10" Lift Weld-On 15.6" Retracted

Fulton Bolt-Thru Swivel Trailer Jack 1,500lbs w/ 8" Caster Wheel 10" Lift Weld-On 15.6" Retracted

Fulton Bolt-Thru Swivel Trailer Jack 1,500lbs w/ 8" Caster Wheel 10" Lift Weld-On 15.6" Retracted
Fulton Bolt-Thru Swivel Trailer Jack 1,500lbs w/ 8" Caster Wheel 10" Lift Weld-On 15.6" Retracted
Home Boat and Marine Boat Trailer Jacks Bolt-Thru Style Swivel Bracket Jack
1 reviews - Write a review
Fulton Bolt-Thru Swivel Trailer Jack 1,500lbs w/ 8" Caster Wheel 10" Lift Weld-On 15.6" Retracted
$138.92
  • Stock: In Stock
  • Brand: Fulton
  • Model: 1411300301
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate
Fulton Marine and Recreational Trailer Jack (P9012-00 Weld-On Mount & Hardware Sold Separately)

Ideal for Torsion Axle Trailers - Mount 2" Higher, Improved Castering Performance - Yoke/Wheel Swivel Independent of Inner Tube, 8" Diameter Spoked Wheel

Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 1/2" pull pin models. The Fulton brand boltthru swivel mounts (U.S. PAT. 6,302,381) use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum  support. All mounts fit up to a 3" x 5" trailer frame.

Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift Capacity: 1,500 lbs
  • Retracted Bracket Height: 15.6" from bracket to bottom
  • Travel/Lift: 10"
  • Extended Bracket Height: 25.6"
  • Clearance: 10.4" from bracket to top
  • Wheel size: 8" diameter
  • Spring loaded Pull pin diameter: 1/2"
  • Finish: Z-Max 600 zinc
  • 5-Year limited warranty


Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer + many others

Specification
Jack Style Bolt-On/Weld-On
Finish Zinc
Static Capacity 1500
Lift Capacity 1500
Lift Style Sidewind
Travel 10"
Retracted 15.6"
Extended 25.6"
Clearance 10.4"
Pull Pin Diameter 1/2"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel Yes
Foot 8" Wheel
Jack Shape Round
Description Facts Ideal for Torsion Axle Trailers - Mount 2" Higher, Improved Castering Performance - Yoke/Wheel Swivel Independent of Inner Tube, 8" Diameter Spoked Wheel, Weld-On, P9012-00 Weld-On Mount & Hardware SOLD SEPARATELY
