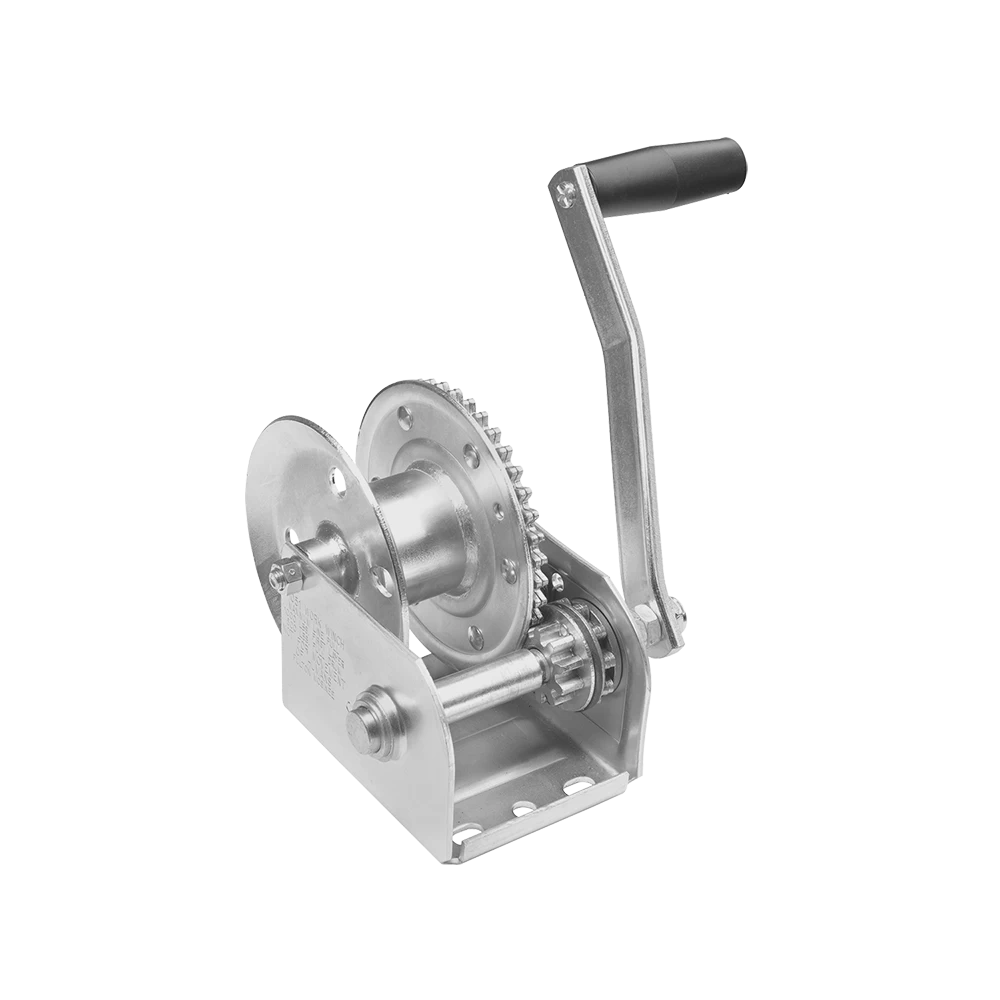

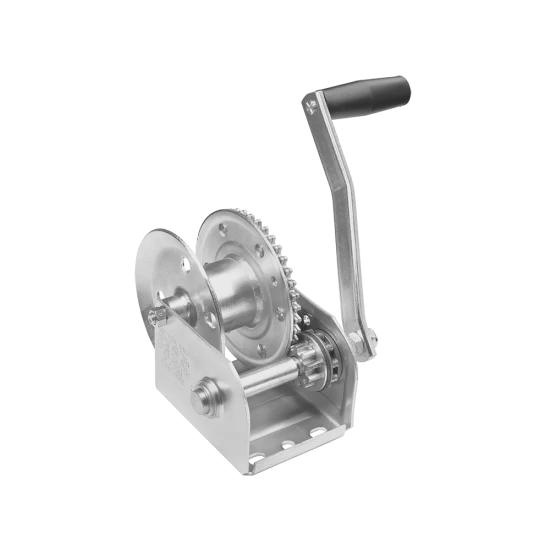

Fulton® Winch - Part Number: 143001

You shouldn’t have to struggle to get your boat or jet ski on or off the water. Your days should be easy, relaxed, thrilling, fun, whatever you want them to be. With Fulton ®, you can spend less time working to launch your watercraft - or pull it back onto your trailer - with our complete line of winches. From one and two-speed manual winches, to brake winches and electric winches, Fulton ® offers styles and capacities to meet virtually every need. Created by some of the most innovative engineers in the industry today, Fulton’s extensive line of marine winches uses superior materials and rugged manufacturing, offering attractive designs and sleek, contemporary exteriors to work hard while complimenting even high-end boat and trailer combinations.

Key Features

The Fulton® 143001 Winch is part of the BRAKE WINCHES series, designed for secure boat lifting applications:

• Max Rated Line Pull 1st Layer: 1,000 lbs (454 kg)
• Max Rated Line Pull Full Drum: 500 lbs (227 kg)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Diameter: 7/32" (5.5 mm)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Drum Storage: 50 ft (15 m)
• Max Cable Size Data (7 x 9 Galvanized Aircraft Cable) Test Strength: 5,600 lbs (2540 kg)
• Handle Length (in.): 11 (27.9 cm)
• Gear Ratio: 4:1
• Drum Hub Diameter (in.): 2-1/4 (57 mm)
• Covered Gears: No
• Cable Included: No
• Brake Winch Load Requirement: 50 lbs or more
• Packaging: Litho Box

Note: Brake winches must have a load of 50 lbs or more to work properly. They are designed to hold the load securely when the handle is released, regardless of the direction it is turned.

How to Select

To select the right winch capacity:

1. Minimum Winch Capacity = Maximum Line Load
2. Example Calculation:
   • Maximum Line Load = 1,450 lbs
   • Select winch rated at 1,500 lbs
