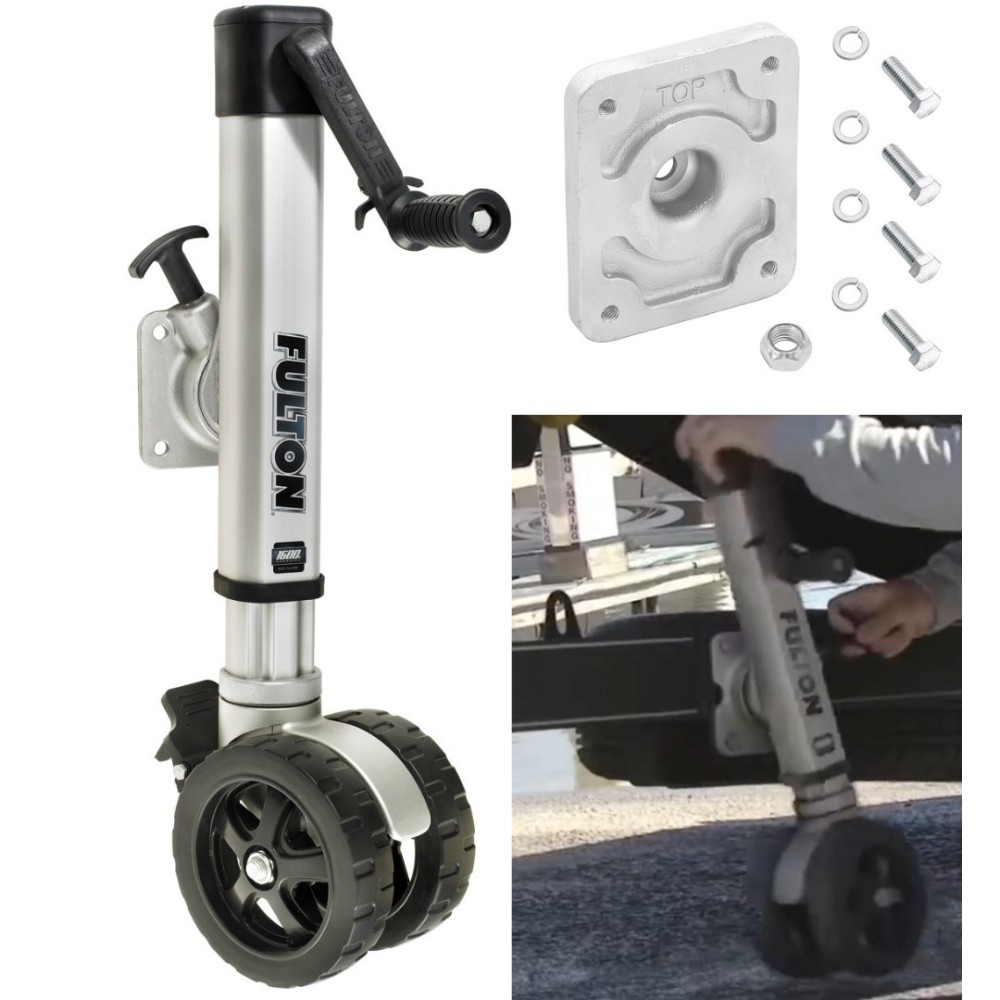

Fulton F2 Boat Trailer Jack 1600 lbs Side Wind Bolt‑On Hardware Side Mount + XP‑F2 Conversion Adapter Lifetime Warranty + Hardware Bolt‑On Side Mount
Model: 1413020134 500320Elevate your towing experience with our comprehensive bundle featuring the Fulton F2® Marine Trailer Jack and the F2® Trailer Jack Accessory Kit. Designed to enhance your towing convenience and performance, this bundle offers unmatched value.
Fulton F2® Marine Trailer Jack - Part Number: 1413020134
Experience the pinnacle of trailer jack engineering with the Fulton F2® Marine Trailer Jack, a product that redefines industry standards.
Revolutionary Design: Fulton, the industry leader, introduces a revolutionary trailer jack that challenges conventions and transforms the industry.
Innovative Reinvention: Every aspect of the F2® Jack has been meticulously reengineered for maximum performance and reliability.
Unprecedented Strength: Backed by an unmatched LIMITED LIFETIME WARRANTY, this product showcases its exceptional quality.
Corrosion Resistance: Internal and external components are coated with corrosion-resistant materials, ensuring durability in harsh environments.
Ergonomic Excellence: Engineered plastic crank, release pin, and integrated wheel wedge offer a comfortable touch for seamless operation.
Easy Maneuverability: Sidewind crank design provides easy operation and precise control.
Adaptable Travel: A 10"" travel range makes it suitable for marine, recreational, and utility trailers.
Built to Last: Crafted from durable aluminum with an anodized finish for longevity and an elegant appearance.
Customizable: The 7"" attached wheels offer smooth rolling and positioning for efficient use.
Installation Made Easy: Complete package includes all necessary mounting hardware for hassle-free setup.
Stay Informed: Always refer to your vehicle's manual for accurate weight capacity information.
F2® Trailer Jack Accessory Kit - Part Number: 500320
Ensure the optimal performance of your trailer jack with the Fulton F2® Trailer Jack Accessory Kit, containing essential components for upkeep and enhancement.
Seamless Upgrade: Transform from a Fulton Center-Bolt Swivel Mount Jack to an F2 Jack with ease using this accessory kit.
Perfect Fit: Designed to work seamlessly with Fulton's patented center-bolt design, maintaining your trailer's original appearance.
Optimized Castering: The tapered mount moves the wheel closer to the trailer frame, optimizing castering for improved functionality.
Effortless Installation: No drilling or welding required; installation is straightforward and stress-free.
Complete Package: The kit includes all necessary mounting hardware for a hassle-free upgrade.
Warranty Assurance: Backed by a Limited 5 Year Warranty, demonstrating its quality and longevity.
Upgrade your towing capabilities and maintain the longevity of your equipment with the Fulton F2® Marine Jack and Trailer Jack Accessory Kit bundle. Explore the difference in towing convenience and performance today.
For detailed product specifications, please refer to the provided manuals and documentation.
$311 07 $396.98 22% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$396.98 $311 07
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $77.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: 1413020134 500320
- Includes: 1600 lbs Jack w/ XP to F2 Adapter
Description
Get Expert Help
Fulton F2 Boat Trailer Jack 1600 lbs Side Wind Bolt-On Hardware Side Mount + XP-F2 Conversion Adapter Lifetime Warranty + Hardware Bolt-On Side Mount Install Notes
Installation Instructions for F2 Trailer Jack
General Installation Notes:
- Confirm no interference from the tow vehicle, tongue, ground, or other mounted accessories while stationary or in motion.
- Check for interference in all positions, including handle swing and swivel, before and after installation.
- The swivel mount height is pre-set and torqued by the factory for most applications.
Tools Required:
- Torque wrench
- Ratchet set
- 3/8” bolts with lock washers
- 1/2” bolt
Step-by-Step Instructions:
Weld-On Mounting Plate:
- The mounting plate is included only on weld-on models.
- All welding must be performed by an AWS-certified welder.
- Position the plate with the flat surface against the trailer and align the top of the plate flush with the trailer tube.
- Weld completely around using a 3/16” fillet weld.
Adjusting Swivel Mount Height (If Necessary):
- Remove the jack from the trailer and loosen the two swivel fasteners until the slide block moves freely along the outer tube.
- Rotate the swivel bracket to the horizontal (3” mounting) position to access the upper bolt.
- Adjust the swivel mount to the desired height and re-torque to 60-70 ft-lbs.
- Check for proper swivel and pin engagement after adjustment.
Bolt-On Installation:
- Available for 3"x3", 3"x4", or 3"x5" trailer tubes only.
- Position the swivel bracket and U-bolts for proper mounting to the trailer.
- Tighten nuts and torque to 20-25 ft-lbs.
Optional Wheel Wedge:
- Assemble the optional wheel wedge as shown in the diagram and torque to 6-9 in-lbs.
- To activate, press downward until the wedge locks into place.
- To release, lift upward until the pressure is removed from the wheels.
- Note: The wheel wedge is not designed to act as a brake or wheel stop.
Footplate Assembly:
- Thread the footplate into the bottom of the jack tube.
- Torque the footplate to 60-70 ft-lbs.
Maintenance:
- Clean occasionally with mild soap and water.
- Apply light oil lubrication to pivot points for prolonged performance and appearance.
Safety Notes:
- Fully retract and rotate the jack into the stowed position before towing.
- Do not exceed the maximum rated capacity.
- Use only for vertical loading; avoid excessive side forces to prevent jack failure.
- Replace bent, broken, or worn parts before using.
Limited Lifetime Warranty:
- Coverage: Protects against defects in material and workmanship under normal use.
- Exclusions: Normal wear and tear, misuse, overloading, improper installation, and unauthorized modifications.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Compliance:
- The F2 Trailer Jack conforms to EN-12100-2:2003 Safety Machinery standards and the Machinery Directive 98/37/EC.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

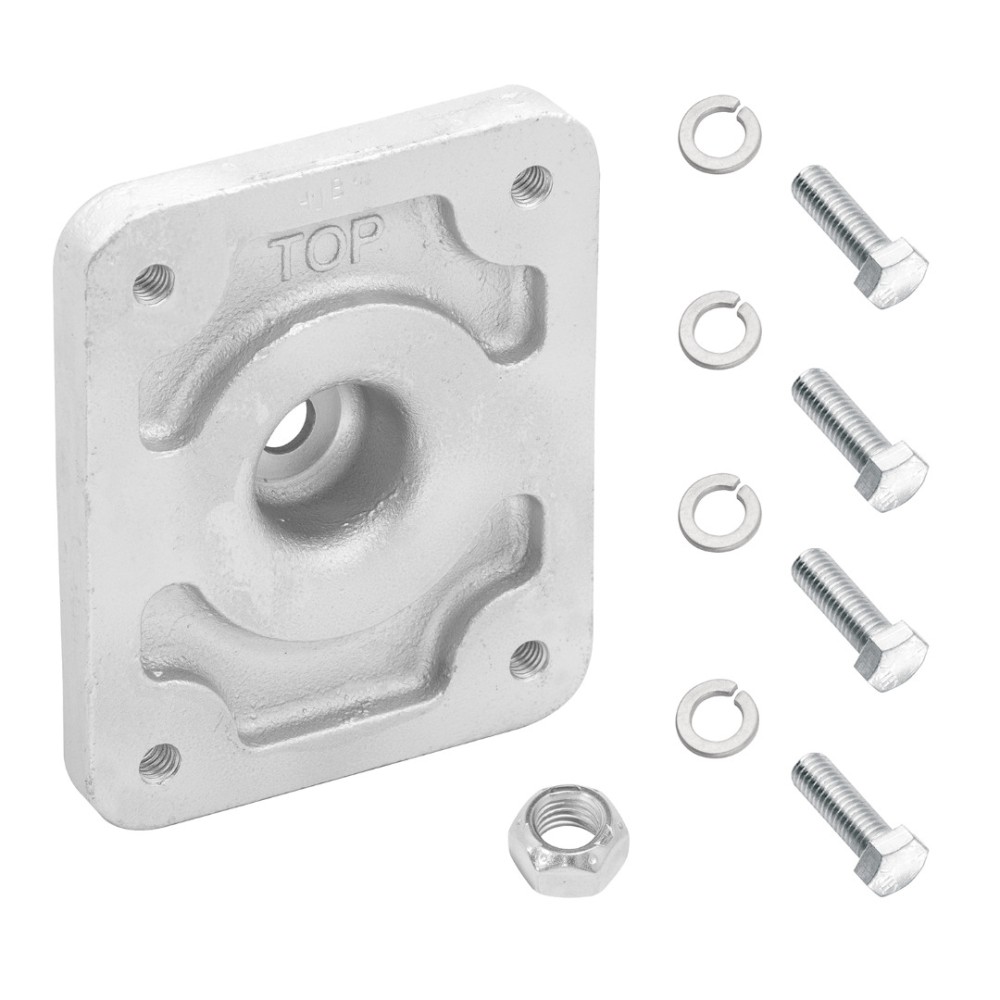

Installation Instructions for Jack Adapter Plate
Part Number:
- N500320
Tools Required:
- 3/4” Wrench
Safety Warnings:
- Read, understand, and follow all instructions and warnings before installation and use.
- Never position any part of your body under the product or the load it supports.
- Ensure the load, vehicle, and trailer are secured from rolling before operating or coupling the trailer.
- Do not exceed the product's maximum rated capacity. Refer to the product markings or decals for capacity.
- Replace any bent, broken, or worn parts before using this product.
- Avoid excessive side forces; this jack is designed for vertical loading only.
- Do not weld "bolt-on" brackets or straps to the tongue.
Installation Instructions:
-
Prepare the Trailer:
- Block the tires of the trailer.
- Support the trailer tongue.
-
Remove Existing Hardware:
- Remove the locknut from the XP jack swivel assembly using a 3/4” wrench (Fig. 1).
- Discard the locknut and bushing.
-
Install the Adapter Plate:
- Place the adapter plate onto the jack mount, ensuring the letters "TOP" are legible.
- Seat the plate into the welded mount, aligning the locating tabs with the mount holes (Fig. 2).
- Secure with the new locknut provided and tighten to 65-75 ft-lbs.
-
Adjust Mount Height:
- Adjust the mount height of the F2 jack as needed.
- Refer to the F2 jack instruction sheet for further details.
-
Attach the Jack to the Adapter Plate:
- Secure the F2 jack to the adapter plate using 3/8” cap screws and lock washers (Fig. 3).
- Tighten the screws to 25-35 ft-lbs.
Limited Warranty:
- Coverage: The product is warranted to be free from material defects in material and workmanship:
- 5 years for premium products.
- 1 year for standard products.
- Exclusions:
- Normal wear and tear.
- Damage due to abuse, neglect, misuse, or accidents.
- Improper installation, maintenance, or unauthorized alterations.
- For complete warranty instructions, please download the full installation PDF.
For Technical Support: Our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
WARNING: Failure to follow these warnings and instructions may result in property damage, serious injury, or death.
