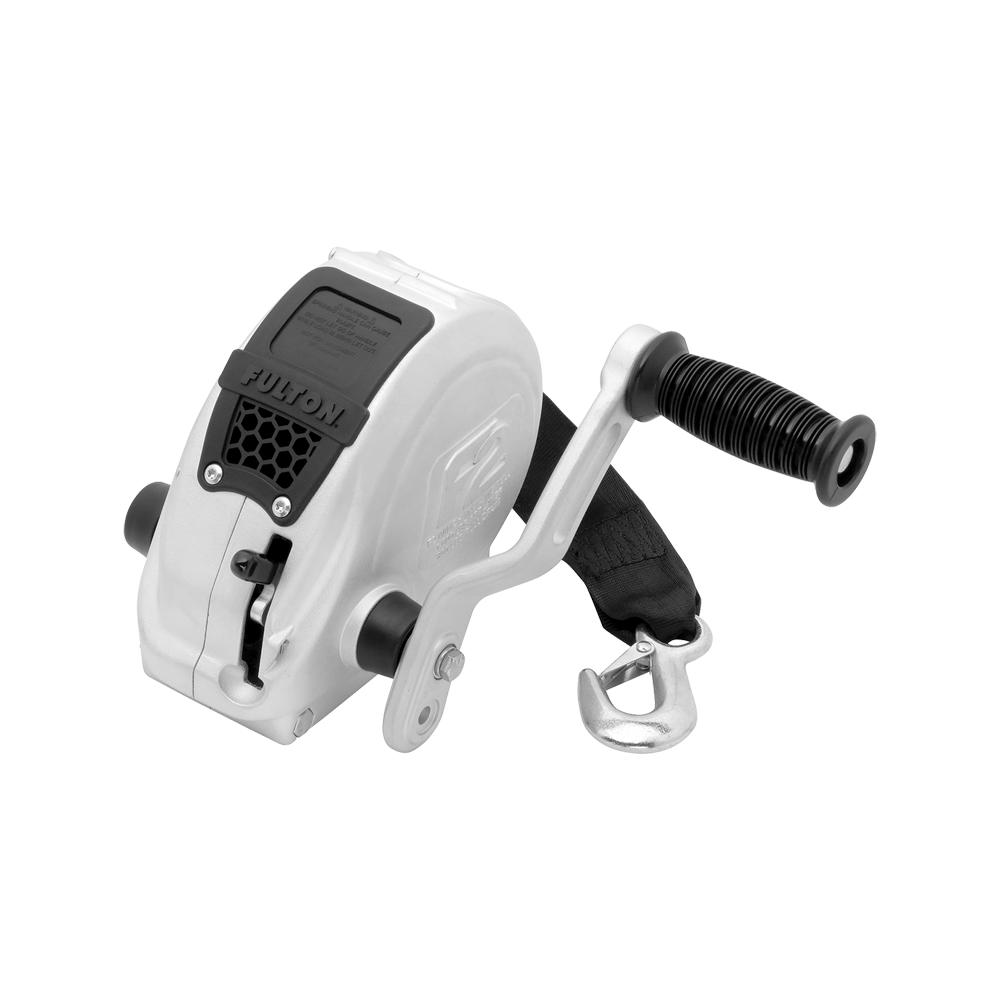

Model: FW1600Z0301Fulton® FW1600Z0301 - Premium Marine Winch
Upgrade your boating experience with the Fulton® FW1600Z0301 winch. Engineered by industry-leading experts, this winch ensures smooth boat handling and hassle-free trailer loading, allowing you to spend more time enjoying the water.
F2® Series - Style Meets Functionality
The F2® Series Trailer Winches are designed to enhance both the aesthetics and functionality of your marine trailer. The FW1600Z0301 features an enclosed frame design and patented Easy Install System (EIS) for a sleek, stylish look that complements any boat and trailer combination.
Advanced Features for Optimal Performance
- High Capacity: The FW1600Z0301 boasts a robust 1600 lbs capacity, providing powerful performance for various boating applications.
- Adjustable Handle Lengths: Customize your winching experience with handle lengths ranging from 6 to 7 inches, ensuring ergonomic operation and precise control.
- Efficient Gear Ratio: With a gear ratio of 4.1:1, this winch delivers efficient power transfer, making boat loading and unloading a breeze.
- User-Friendly Design: The FW1600Z0301 features a handle that switches from left to right-hand drive configuration, along with a user-friendly pull-turn knob for easy operation and enhanced user experience.
Expert Guidance for Optimal Selection
When selecting the right winch capacity, consider the weight of your boat, including the motor, fuel, and gear. As a general rule:
Minimum Winch Capacity = Maximum Weight of Boat, Including Motor, Fuel, Gear ÷ 2
Example Calculation:
- Boat, Motor, Fuel, Gear Weight = 3200 lbs
- Minimum Winch Capacity = 3200 ÷ 2 = 1600 lbs
This calculation aligns perfectly with the capacity of the FW1600Z0301, making it an ideal choice for ensuring safety and efficiency in your boating activities. Note: For steep inclines or shallow water launches, consider dividing the maximum weight by 1.5 for added safety margin.
Specifications
| Feature | Specification |
|---|---|
| Capacity | 1600 lbs |
| Handle Lengths | 6 to 7 inches |
| Gear Ratio | 4.1:1 |
| Strap | 20 ft. x 2 in. |
| Finish | Sharkskin |
| Warranty | Lifetime |
$128 24 $193.75 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$193.75 $128 24
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $32.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: FW1600Z0301
- Includes: F2 Marine Trailer Winch
Description
Get Expert Help
Fulton F2 Marine Trailer Winch 1,600 lbs Capacity 20 ft Sharkskin Strap Adjustable Handle Lifetime Warranty - FW1600Z0301 Boat Winch Install Notes
Installation and Usage Instructions for Trailer Winch
Part Numbers:
- FW1600Z0301
Tools Required:
- 9/16" socket or wrench
- Torque wrench
Step-by-Step Instructions:
Mounting the Winch:
- Ensure the mounting surface matches or exceeds the winch frame footprint.
- Use three (3) 3/8” diameter grade-5 carriage bolts and lock nuts.
- Torque the bolts to 28-30 ft-lbs.
- Verify the winch is securely mounted before use.
Installing the Handle Roller Assembly:
- Assemble the handle roller using the provided hardware.
- Torque the lock nut to 20-25 ft-lbs using a 9/16” socket.
Adjusting the Handle:
- Adjust the handle for length (6” to 9”) or for right- or left-hand drive:
- Remove the bolt and washers on each side of the drive shaft.
- Push the hex shaft 1/2”-3/4” through to the opposite side, keeping internal gears aligned.
- Attach the handle bolt and washers, torquing to 22-25 ft-lbs.
- Repeat for the opposite side of the shaft without overtightening.
Attaching the Winch Strap:
- Use the provided strap anchor.
- Pass the strap loop under the cross bolt or through the center hub slot.
- Insert the strap anchor into the strap loop and pull tight.
- Maintain a minimum of three layers of strap on the drum.
Using the Winch:
- Letting Out Line/Load:
- Firmly grip the handle.
- Disengage the ratchet plunger/pawl or engage it in the reverse direction.
- Slowly let out the strap while ensuring the ratchet plunger/pawl holds the load when paused.
- Taking In Line/Load:
- Engage the ratchet plunger/pawl in the forward/loading position.
- Turn the handle to wind the strap onto the drum properly.
- Pause by ensuring the ratchet plunger/pawl holds the load.
Maintenance:
- Inspect and replace any damaged or worn parts before use.
- Lubricate gears, ratchet contact points, and shaft bushings with light oil or grease.
- Clean the winch occasionally with mild soap and water.
Safety Notes:
- Do not exceed the maximum rated capacity as marked on the winch.
- Ensure a loud clicking sound is heard from the ratchet when pulling a load.
- Do not use the winch to secure boats during towing; use proper tie-downs.
- Never operate the winch with slippery or oily hands.
- Do not use cables or ropes with this winch.
- Always maintain three layers of strap on the drum for safe operation.
Specifications:
- Capacity: Based on direct line pull on the third layer of strap on the drum.
- Handle Force: Maximum of 45 lbs required to pull the rated load.
Warranty Information:
- Limited Lifetime Warranty:
- Covers material defects and workmanship under normal use.
- Excludes normal wear, misuse, or improper installation.
- For complete warranty instructions, please download the full installation PDF.
Compliance References:
- Conforms to EN-12100-2:2003 Safety Machinery standards and Machinery Directive 98/37/EC.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
