Fulton Fixed Mount Drop Leg Trailer Jack 5,000 lbs 28" Travel Bolt-On
$229.99
  • Stock: In Stock
  • Brand: Fulton
  • Model: HD50000301
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

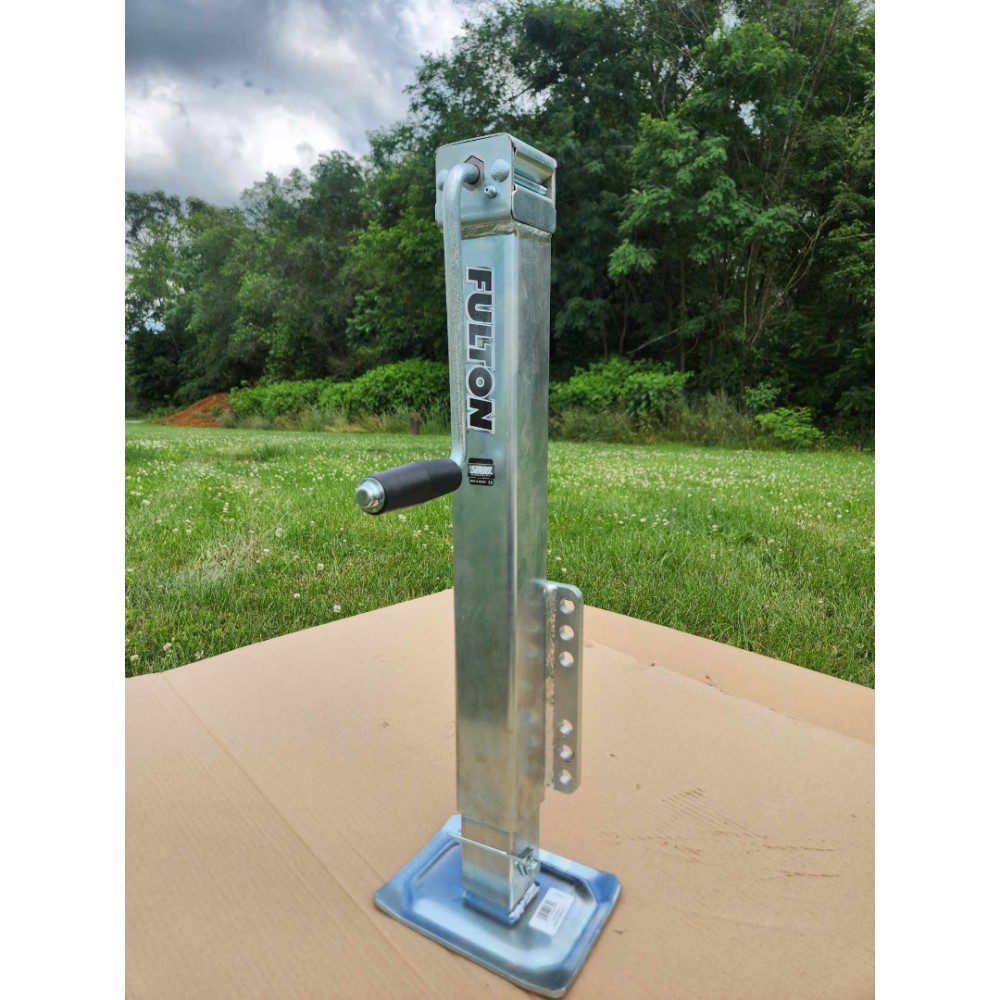

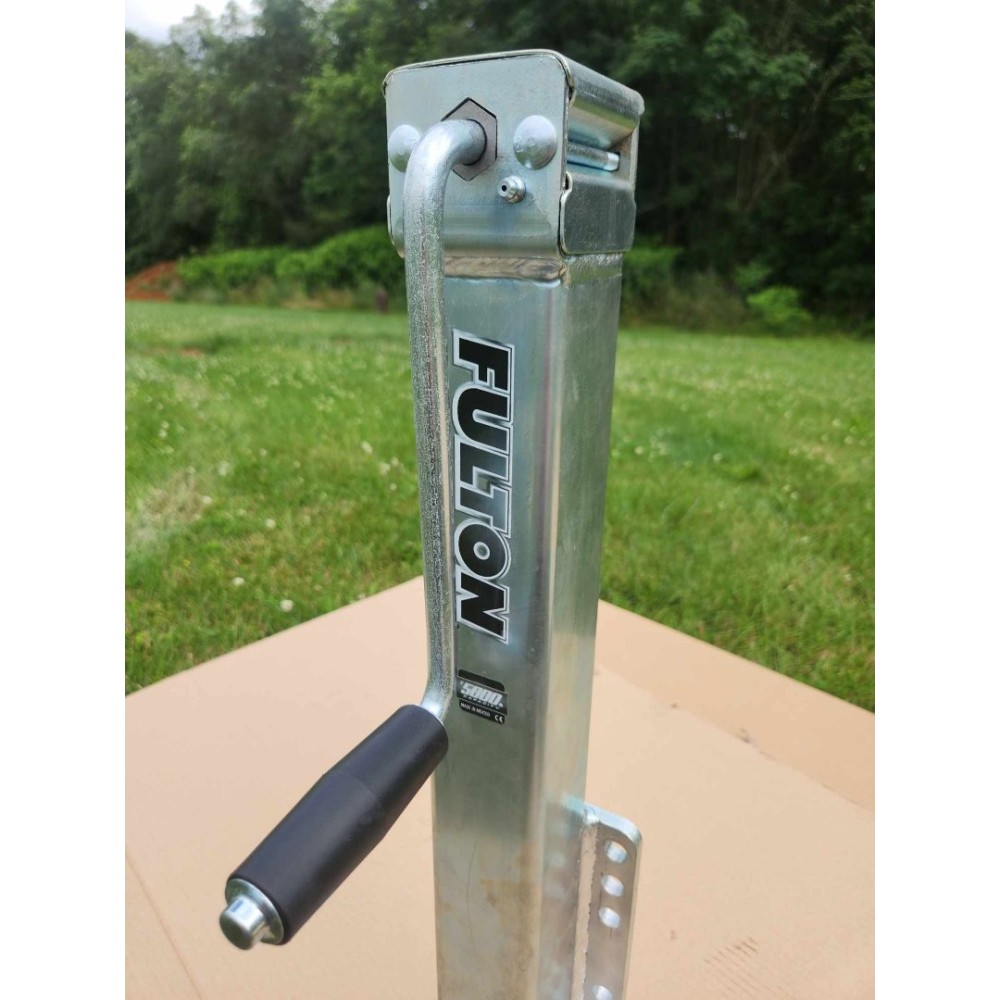

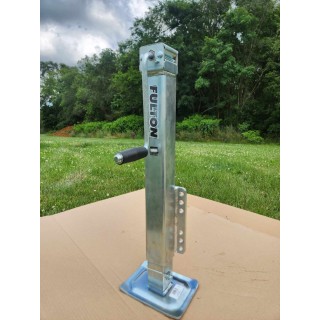

Fulton Marine and Recreational Fixed Mount Trailer Jack (Bolt-On Hardware Included)

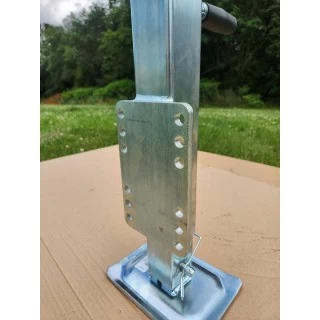

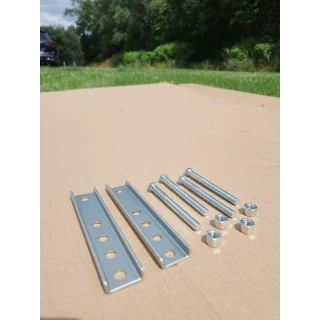

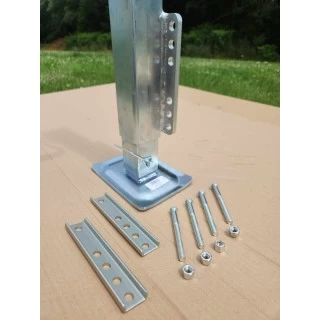

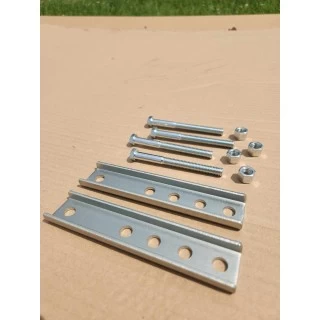

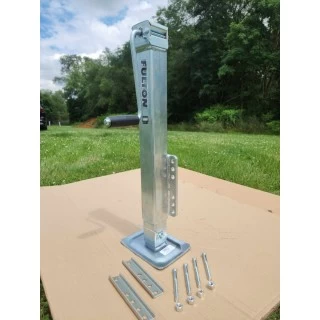

Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. Our bolt-on versions include all necessary mounting hardware. All mounts fit up to a 3" x 5" trailer frame. Part number HD25000101 and 35SM28FZ


Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift Capacity 5,000 lbs
  • Retracted Bracket Height: 6.5" from bracket to bottom
  • Travel/Lift: 19"
  • Drop Leg Travel: 9"
  • Extended Bracket Height: 35"
  • Clearance: 18.5" from bracket to top
  • Pin Diameter: 9/16"
  • Finish: Z-Max 600 zinc
  • 5-Year limited warranty



Specification
Jack Style Bolt-On
Finish Zinc
Static Capacity 5000
Lift Capacity 5000
Lift Style Sidewind
Travel 28"
Retracted 6.5"
Extended 35.0"
Clearance 18.5"
Tubing Width 2.5"
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts Heavy Duty Square, Drop Leg Jack, 6.0" x 8.0" Footplate, Bolt-On, Mounting Hardware for 5" High Frame Included, Travel Includes Drop Leg
Spring Return No
