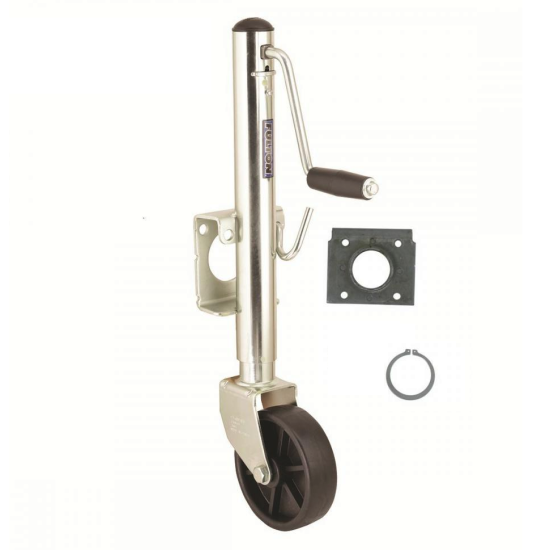

Fulton Retaining Ring Swivel Trailer Jack 1,200 lbs w/ 6" Caster Wheel 10" Lift Weld-On

Fulton Retaining Ring Swivel Trailer Jack 1,200 lbs w/ 6" Caster Wheel 10" Lift Weld-On
Fulton Retaining Ring Swivel Trailer Jack 1,200 lbs w/ 6" Caster Wheel 10" Lift Weld-On
$63.35
  • Stock: In Stock
  • Brand: Fulton
  • Model: TJ120W0301

Applies to this product only

Fulton Marine and Recreational Trailer Jack (Weld-On Bracket Included)


Designed for use with marine and utility trailers, Fulton brand tongue jacks are time-tested and application-proven. For weld-on applications we offer 3/8" pull pin models. The Fulton brand boltthru swivel mounts use 3-D formed heavy-gauge steel stampings and a proprietary bushing material for a mount with minimal deflection and maximum  support. All mounts fit up to a 3" x 5" trailer frame.


Specifications:
  • Fits: 3"x3", 3"x4", and 3"x5" trailer frames
  • Lift capacity: 1,200 lbs
  • Retracted Bracket Height: 12.7" from bracket to bottom
  • Travel/Lift: 10"
  • Extended Bracket Height: 22.7"
  • Clearance: 11.4" from bracket to top
  • Snap Ring Hole Diameter: 2.313"
  • Wheel size: 6" diameter
  • Spring loaded Pull pin diameter: 3/8"
  • Finish: Z-Max 600 zinc
  • 5-Year limited warranty


Popular Tongue Jack applications include: Eagle Magic-Tilt Ranger Sea Ray Maverick Master Angler Continental trailer Tow Dolly + many others

Specification
Jack Style Bolt-On/Weld-On
Finish Zinc
Static Capacity 1200
Lift Capacity 1200
Lift Style Sidewind
Travel 10"
Retracted 12.7"
Extended 22.7"
Clearance 11.4"
Pull Pin Diameter 3/8"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel Yes
Foot 6" Wheel
Jack Shape Round
Description Facts 6" Diameter Wheel, Weld-On, Mount & Retaining Ring Included, Both Shipped Loose/Unassembled
