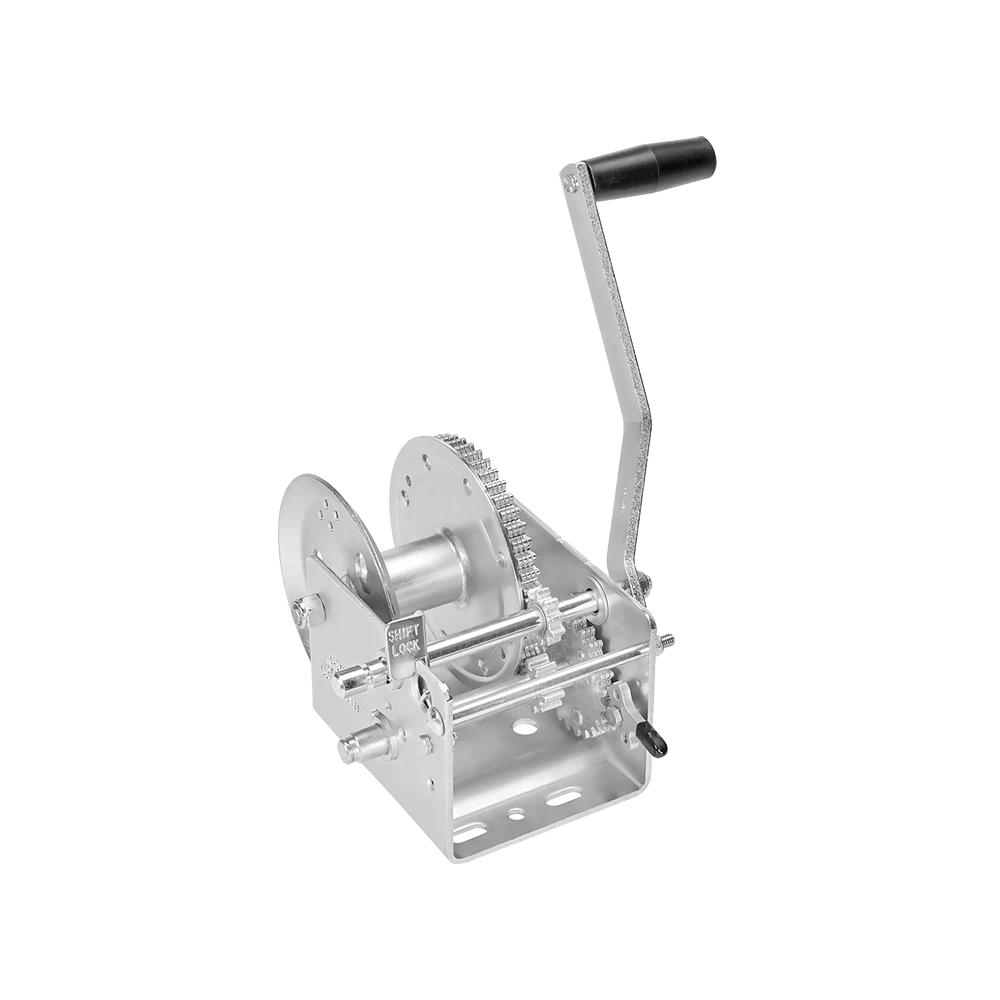

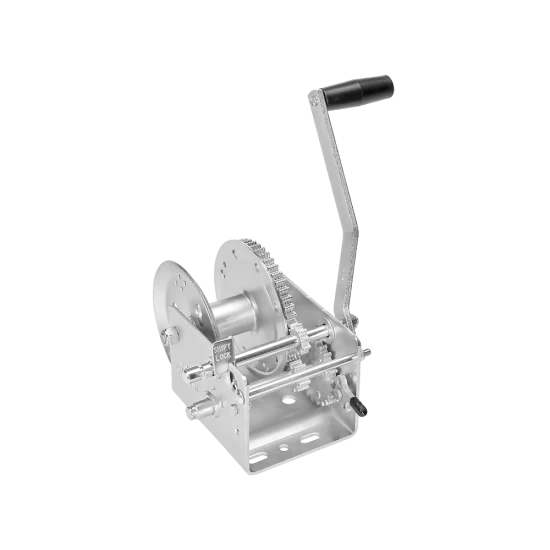

Fulton® Winch - Part Number: 142420

You shouldn’t have to struggle to get your boat or jet ski on or off the water. Your days should be easy, relaxed, thrilling, fun, whatever you want them to be. With Fulton ®, you can spend less time working to launch your watercraft - or pull it back onto your trailer - with our complete line of winches. From one and two-speed manual winches, to brake winches and electric winches, Fulton ® offers styles and capacities to meet virtually every need. Created by some of the most innovative engineers in the industry today, Fulton’s extensive line of marine winches uses superior materials and rugged manufacturing, offering attractive designs and sleek, contemporary exteriors to work hard while complimenting even high-end boat and trailer combinations.

Key Features

The Fulton® 142420 Winch is part of the TWO SPEED TRAILER WINCHES series, designed for heavy-duty performance:

• Capacity: 3200 lbs
• Handle Length (in.): 10
• Max Mechanical Advance: 79:1
• Cable Storage Capacity (ft. x in.): 100 x 7/32
• Rope (ft. x in.): 20 x 2
• Recommended Strap Bolt Sizes (in.): Cable Only
• Hub Size (in.): 1.75
• Compatible Hand Brake: 501210 (not included)
• Cable Included: No
• Packaging: Litho Box

How to Select

To select the right winch capacity:

1. Minimum Winch Capacity = Maximum Weight of Boat, Including Motor, Fuel, Gear ÷ 2
2. If shallow water or steep inclined launches are expected, divide the maximum weight by 1.5

Example Calculation:

• Boat, Motor, Fuel, Gear Weight = 6400 lbs
• Minimum Winch Capacity = 6400 ÷ 2 = 3200 lbs

This calculation aligns with the capacity of the Fulton® 142420 Winch, ensuring optimal performance and safety for your boating activities.
