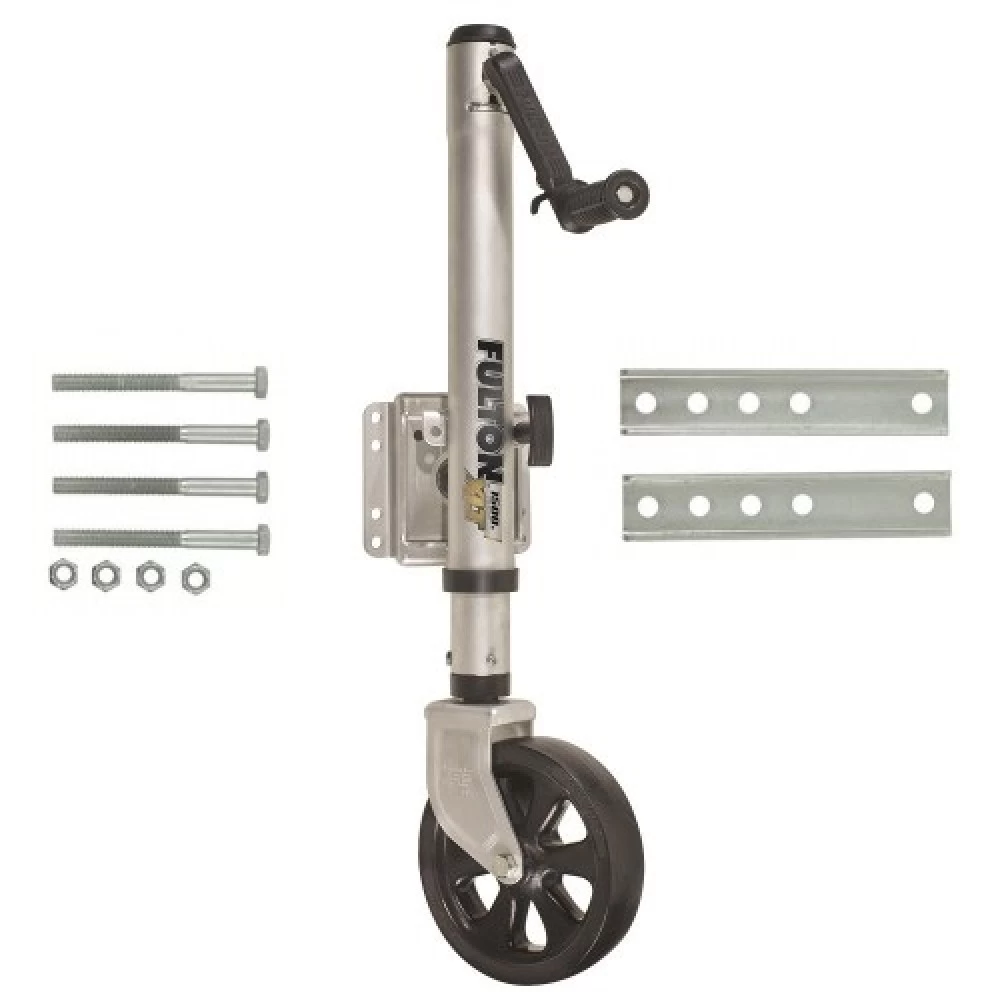

Fulton XLT Trailer Jack Swivel Bolt On, 1,500 lbs. Sidewind TruTurn 360 Castering Install Notes
Installation Instructions for Tongue Jacks
General Installation Notes:
- Confirm no interference from the tow vehicle, tongue, ground, or other mounted accessories during use.
- Verify clearance for all positions, including handle swing and swivel, before and after installation.
Tools Required:
- Torque wrench
- Ratchet set
Step-by-Step Instructions:
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert supplied bolts into holes corresponding to the tongue width.
- Position the mounting bracket below the tongue, ensuring the flat surface is against it.
- Secure bolts with locknuts and torque to 25 ft-lbs.
Bolt-On Mounting Bracket Instructions:
- Confirm the correct mounting hole pattern for your tongue size.
- Align the jack against the tongue and position mounting straps on the opposite side.
- Insert bolts through the mounting bracket and straps, ensuring the upper bolts rest on the top of the tongue and lower bolts are close to the bottom without exceeding a 1/16" gap.
- Secure with locknuts and torque to 25 ft-lbs.
Snap Ring/Bolt-Through Instructions:
- For snap ring models, place the jack bracket over the mount and fully seat the snap ring into the groove.
- For bolt-through models, align the bushing and bolt with the jack bracket and mount. Tighten the locknut to minimize movement.
A-Plate Mounting Instructions (Bolt-On or Weld-On):
- All welding must be done by an AWS-certified welder.
- Align the jack and foot with the coupler and weld using a 3/16" fillet weld.
- Bolt the jack A-plate to the coupler using 3/8-16 grade-5 bolts and torque to 15-20 ft-lbs.
- Weld the support plate to the bottom of the trailer frame using a 3/16" fillet weld.
Direct-Mount Instructions:
- Position the jack at the desired location and weld 1" in two places on both sides of the jack using a 3/16" fillet weld.
Maintenance:
- Lubricate internal gearing and bushings with automotive grease annually.
- Apply lightweight oil to all moving components such as handles, screw stems, and caster assemblies.
- Flush the jack with fresh water in marine environments and reapply lubricant.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Avoid exceeding rated capacities for the jack, footplate, or caster wheel.
- Do not adjust the drop foot or leg under load.
- Avoid side forces to prevent jack failure.
Warranty Information:
- Coverage: 5 years for Bulldog® and Fulton® products; 1 year for Pro-Series® products.
- Exclusions: Damage due to misuse, overloading, or improper installation.
- For warranty assistance, visit www.trailerjacks.com or call 877-869-6690.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed manufacturer information, please download the full installation PDF.
