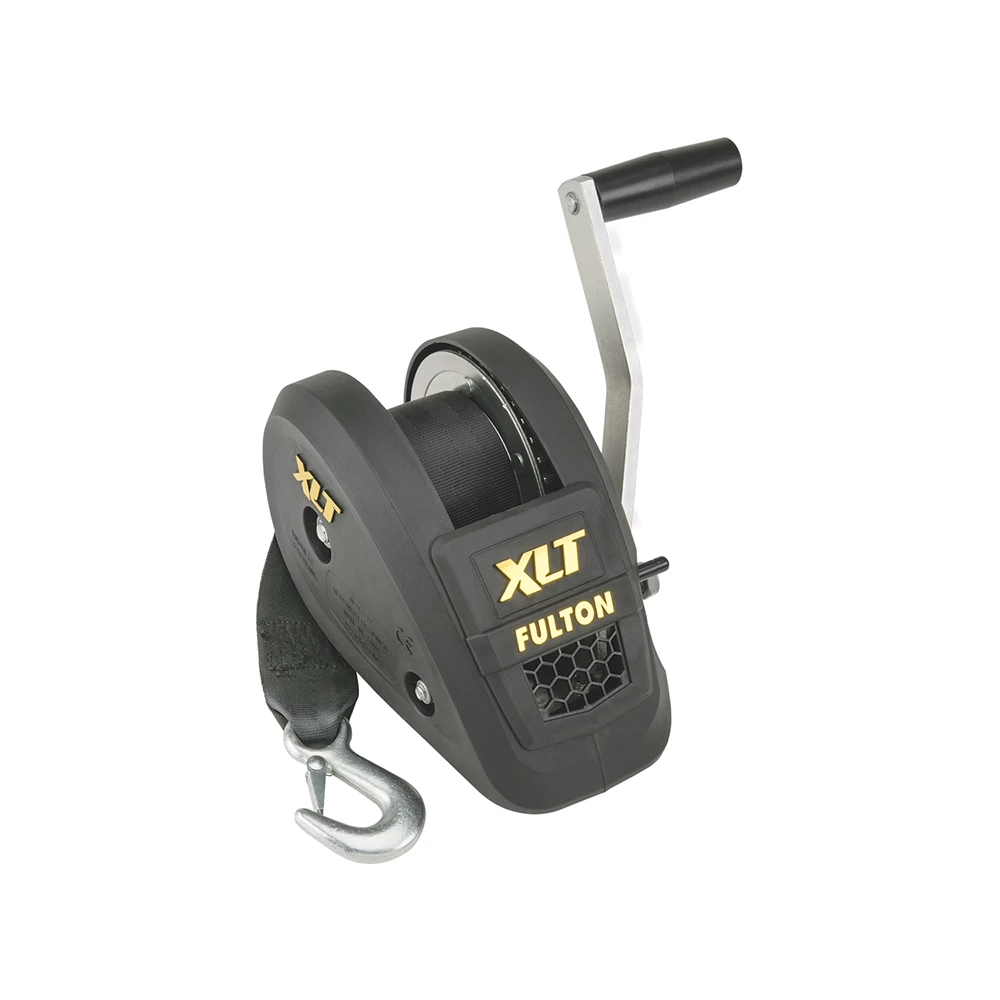

Fulton XLT Trailer Winch 1,500 Lbs. w/20 ft Strap 8" Manual Handle Crank Marine Sale Boat
Model: 142320Winch, 1500 lbs., XLT-Black
Our full line of Fulton single speed winches are designed to meet your toughest pulling and lifting demands. Our winches solid drum gear construction delivers smooth cranking & durability, and also feature a 2-way ratchet pawl with neutral feature, and ZMAX 600 clear zinc finish for superior corrosion resistance.
| Part Number | 142320 (142311 XLT14ZB301 XLT14ZB101) |
| Brand | Fulton |
| Capacity | 1,500 lbs. |
| Handle Length | 8" |
| Max. Mech Adv. | 43:1 |
| Gear Ratio | 4.1:1 |
| Drum Storage | 20 ft x 2" Strap (Included) |
| Strap Included | YES |
| Rec. Strap Bolt Size | 5/16" x 2-1/2" Grade 5 |
| Warranty | 5 Year |
| Installation Instructions |  |
To Select Winch Capacity:
Minimum Winch Capacity = Maximum Weight of Boat,
Including Motor, Fuel, Gear ÷ 2
Example:
Boat, Motor, Fuel, Gear Weight = 2,800 lbs.
2,800 ÷ 2 = 1,400 lbs.
If shallow water or steep inclined launches are
expected to be used ÷ Maximum Weight by 1.5
Example:
Boat, Motor, Fuel, Gear Weight = 3,100 lbs.
3,100 ÷ 1.5 = 2,067 lbs.
About Fulton
Since 2012, Fulton has been paired with the BASSMaster elite angler Brent Chapman. Brent relies on the F2 product line for both professional fishing tournaments, and trips with his wife and kids. Fulton is proud to be represented by the 2012 Angler of the Year.
Apart from the notoriety that Brent Chapman brings, the Fulton F2 has also been awarded from numerous organizations. One such award was given to the F2 trailer winch by the Marine Aftermarket Accessories Trade Show in 2008 for its innovation and design.
Suited for all environments, Fulton performs best when the weather is at its worst. When innovative design is combined with quality and value, the result is a brand that is the obvious choice for recreational and marine applications everywhere.
$108 97 $128.75 15% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$128.75 $108 97
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $27.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Fulton
- Model: 142320
- UPC: 016118144222
- Includes: XLT Trailer Winch
Description
Winch, 1500 lbs., XLT-Black
Our full line of Fulton single speed winches are designed to meet your toughest pulling and lifting demands. Our winches solid drum gear construction delivers smooth cranking & durability, and also feature a 2-way ratchet pawl with neutral feature, and ZMAX 600 clear zinc finish for superior corrosion resistance.
| Part Number | 142320 (142311 XLT14ZB301 XLT14ZB101) |
| Brand | Fulton |
| Capacity | 1,500 lbs. |
| Handle Length | 8" |
| Max. Mech Adv. | 43:1 |
| Gear Ratio | 4.1:1 |
| Drum Storage | 20 ft x 2" Strap (Included) |
| Strap Included | YES |
| Rec. Strap Bolt Size | 5/16" x 2-1/2" Grade 5 |
| Warranty | 5 Year |
| Installation Instructions | |
To Select Winch Capacity:
Minimum Winch Capacity = Maximum Weight of Boat,
Including Motor, Fuel, Gear ÷ 2
Example:
Boat, Motor, Fuel, Gear Weight = 2,800 lbs.
2,800 ÷ 2 = 1,400 lbs.
If shallow water or steep inclined launches are
expected to be used ÷ Maximum Weight by 1.5
Example:
Boat, Motor, Fuel, Gear Weight = 3,100 lbs.
3,100 ÷ 1.5 = 2,067 lbs.
About Fulton
Since 2012, Fulton has been paired with the BASSMaster elite angler Brent Chapman. Brent relies on the F2 product line for both professional fishing tournaments, and trips with his wife and kids. Fulton is proud to be represented by the 2012 Angler of the Year.
Apart from the notoriety that Brent Chapman brings, the Fulton F2 has also been awarded from numerous organizations. One such award was given to the F2 trailer winch by the Marine Aftermarket Accessories Trade Show in 2008 for its innovation and design.
Suited for all environments, Fulton performs best when the weather is at its worst. When innovative design is combined with quality and value, the result is a brand that is the obvious choice for recreational and marine applications everywhere.
Get Expert Help
Fulton XLT Trailer Winch 1,500 Lbs. w/20 ft Strap 8" Manual Handle Crank Marine Sale Boat Install Notes
Installation and Usage Instructions for Trailer Winches
Part Numbers:
- N142320
Tools Required:
- None specified
Step-by-Step Instructions:
Mounting the Winch:
- The winch stand must support at least five times the rated capacity of the winch.
- Ensure the mounting surface equals or exceeds the winch frame footprint.
- Use three (3) 3/8” diameter grade-5 bolts, torqued to 28-30 ft-lbs.
- Verify the winch is securely mounted to the structure.
Attaching a Handle:
- Assemble the handle onto the input shaft end.
- Tighten the 1/2”-13 locknut against the handle and torque to 22-25 ft-lbs.
- Do not overtighten, as this may damage the components.
Attaching a Winch Line (Rope, Strap, or Cable):
- Always maintain a minimum of three complete wraps on the drum.
For a Rope:
- Weave the rope through the drum wall and secure it beneath itself.
For a Strap:
- Use a grade-5 bolt of the largest possible diameter for mounting.
- Tighten the locknut until end play in the bolt is eliminated. Avoid over-tightening to prevent drum deformation.
For a Steel Cable:
- Pass the cable from inside the drum through one of the dimpled holes.
- Loop the cable around the drum bearing and secure it under itself.
- Leave 1” of cable extending past the clamp location.
- Tighten clamp nuts to approximately 2 ft-lbs.
Operation:
-
Letting Out Line/Load:
- Firmly grip the winch handle and disengage the ratchet pawl.
- Slowly let out the line, ensuring the ratchet pawl is engaged when paused.
-
Taking In Line/Load:
- Engage the ratchet pawl in the forward/loading position.
- Turn the handle to properly wind the line onto the drum.
Maintenance:
- Inspect and replace damaged components before use.
- Apply light oil (#30 engine oil) to bushings and pivot points.
- Maintain a thin layer of grease on the gear teeth.
Safety Notes:
- Never exceed the maximum rated capacity.
- Inspect the cable, strap, or rope for wear or damage before each use.
- Ensure a loud clicking sound from the ratchet when lifting the load.
- Never release the crank handle unless the ratchet pawl is fully engaged.
- Do not operate the winch with slippery or oily hands.
- Avoid using winches to secure boats during towing; use appropriate tie-downs.
Specifications:
- Capacity: Rated based on direct line pull on the first drum layer.
- Handle Force: A maximum of 45 lbs is required to pull the rated load.
Manufacturer Notes:
- Use only equivalent-quality parts for repairs.
- Test all components thoroughly before use.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Compliance References:
- Rated according to SAE J1853 standards.
Warranty Information:
- Limited five-year warranty against defects in material and workmanship.
- Warranty excludes normal wear, misuse, and improper installation.
- For complete warranty instructions, please download the full installation PDF.
