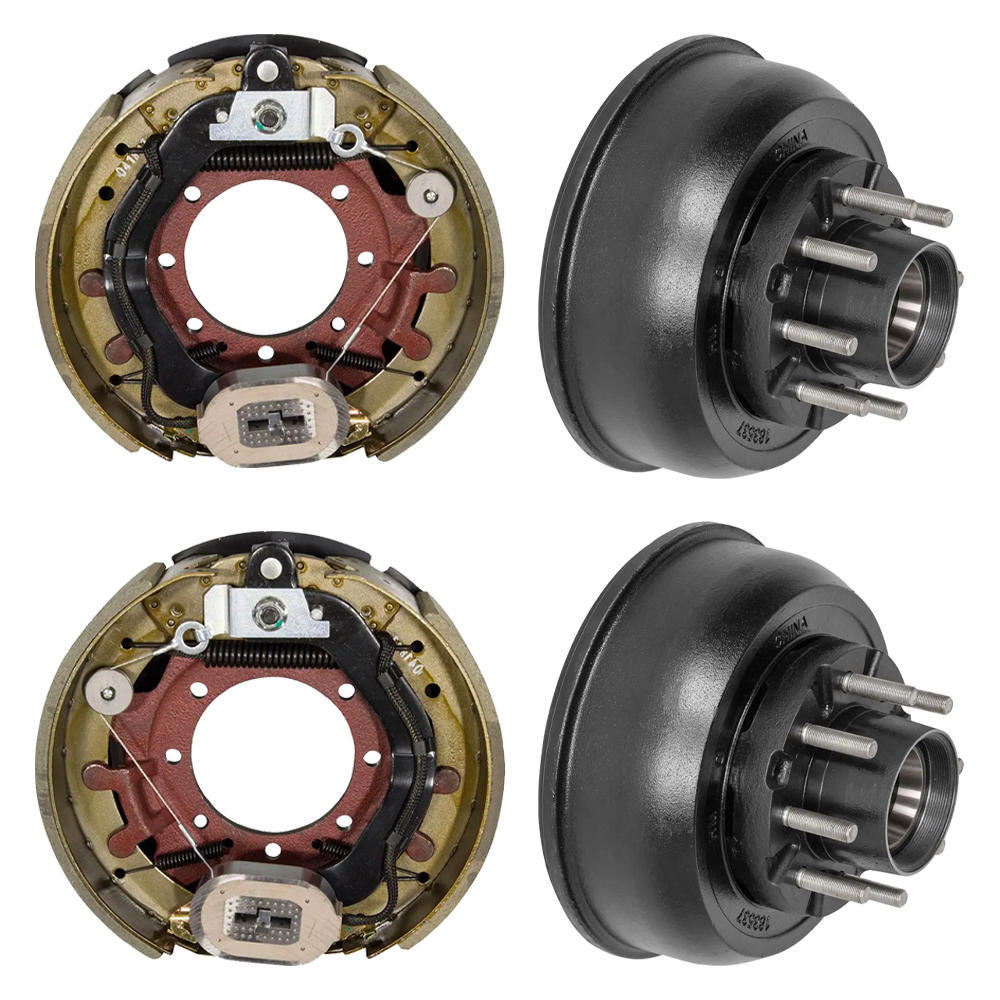

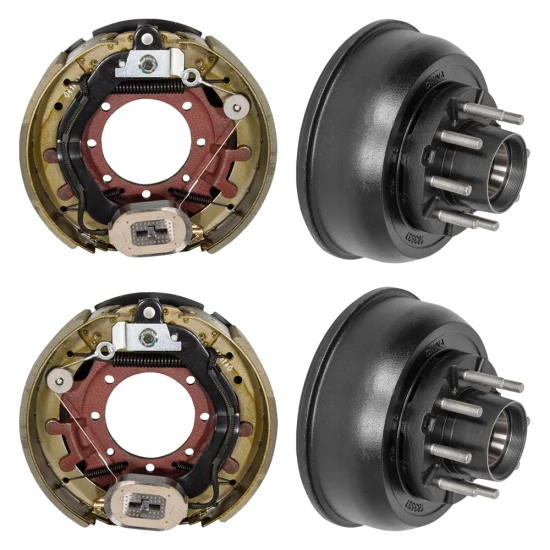

Lippert 10K Electric Brake and Hub/Drum Pair – 12¼″ x 3⅜″, 8 on 6.5″ Pattern
Model: LP91HBALippert 10K Electric Brake & Hub/Drum Pair – 12¼″ x 3⅜″
Upgrade your heavy-duty trailer with this complete Lippert 10,000-lb. electric brake bundle. It includes both left- and right-hand self-adjusting brake assemblies, as well as two rugged hub/drum units (8 on 6.5″ bolt pattern). Keep your trailer stopping reliably with genuine Lippert components designed for easier installation and improved braking performance.
Bundle Contents:

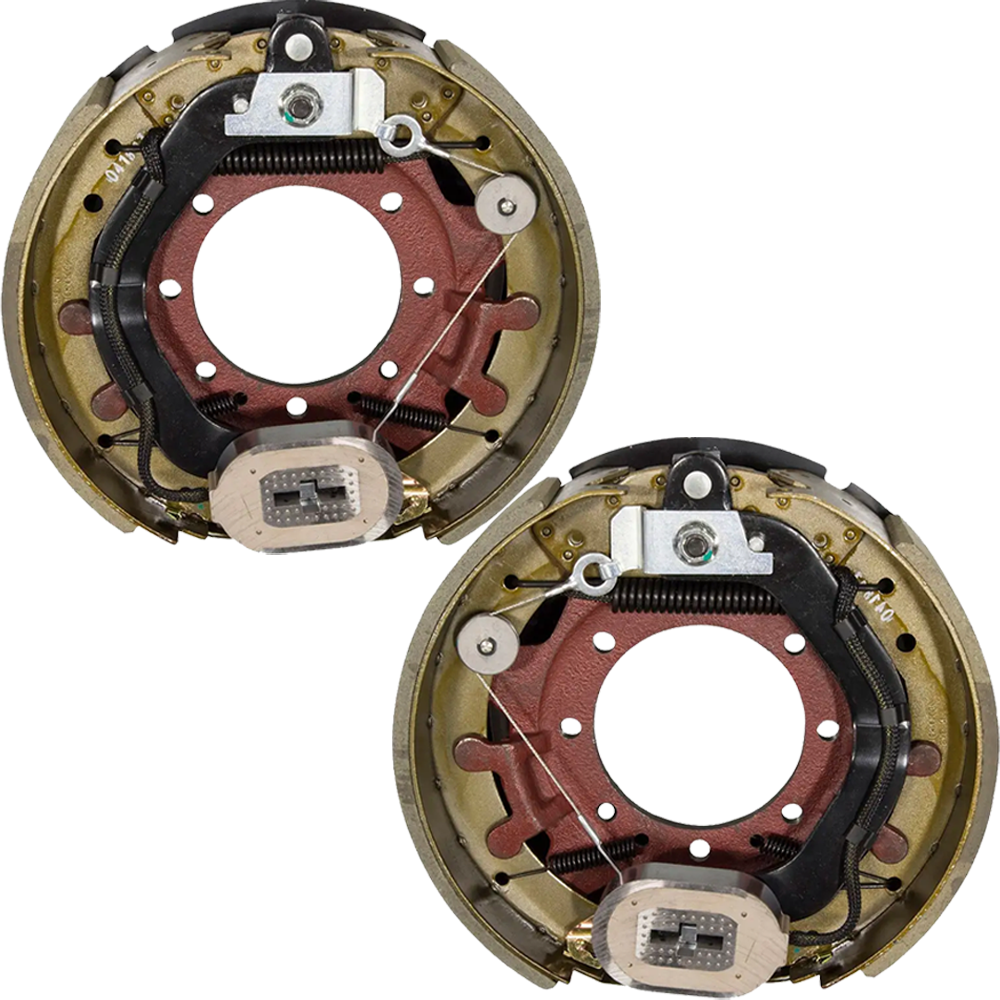

- QTY (1): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Left Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for left-hand (roadside) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16", 16.5", 17" or 17.5" wheels
- Brake size: 12" x 3.38"
- New electric drum brakes will require a break-in period
- Dexter Compatible Part Number: K23-450-00|023-450-00
- QTY (1): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Right Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for right-hand (curb-side) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16", 16.5", 17" or 17.5" wheels
- Brake size: 12" x 3.38"
- New electric drum brakes will require a break-in period
- Dexter Compatible Part Number: K23-451-00|023-451-00

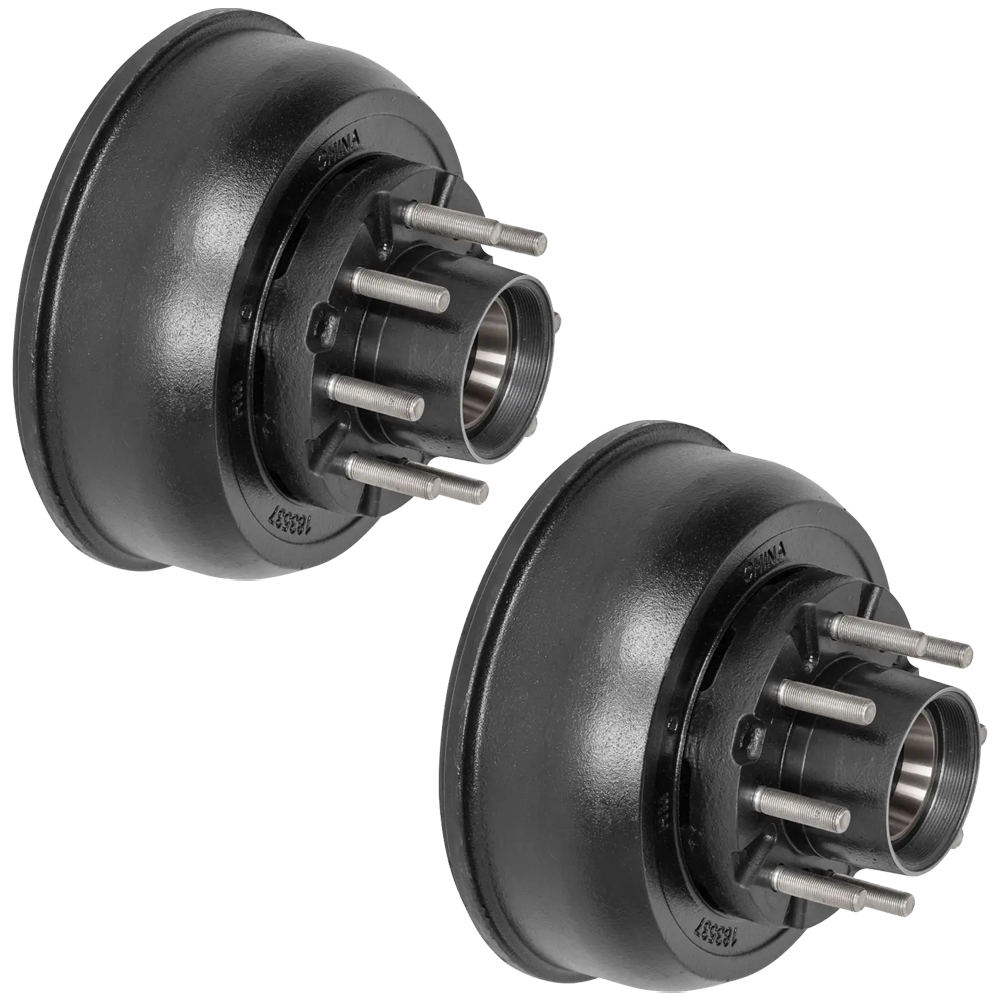

- QTY (2): 12-1/4" x 3-3/8" Trailer Brake Drum - 10,000-lb.
- Axle capacity: 10,000 lbs.
- Brake size: 12-1/4"
- Brake width: 3-3/8"
- Lippert genuine replacement part
- Allows for electric or hydraulic drum brakes
- Durable, cast iron construction
- Backed by a 1-year warranty
Always confirm these components match your existing trailer setup. Periodic brake maintenance and inspections are essential for optimal performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Axle Rating | For 10,000-lb. Axles |
| Brake Drum Dimensions | 12.25" x 3.38" |
| Brake Mounting Pattern | Seven-bolt pattern |
| Hub Bolt Pattern | 8 on 6.5" |
| Hub Type | Hub with integrated drum assembly |
| Type of Adjustment | Self-adjusting (Forward Adjusting) |
| Brake Location | Left & Right (Driver & Passenger Sides) |
| Wheel Size Compatibility | 16", 16.5", 17", 17.5" |
$489 99 $645.80 24% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$645.80 $489 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP91HBA
- Includes: Left Electric Trailer Brake Assembly, Right Electric Trailer Brake Assembly, Trailer Brake Drum (x2)
