Lippert Triple-Axle 7″ x 1.25″, 2,200-lb Manual Electric Brake Assembly & Hub Installation Kit – 5 on 4.5″, w/ Spindle Hardware, Dust Caps & Lug Nuts
Model: LP88HBALippert Triple-Axle 7″ x 1.25″ 2,200-lb Electric Brake & Hub Installation Kit
This comprehensive triple-axle kit from Lippert® provides everything you need for reliable 7″ x 1.25″ manual electric brakes and matching brake hub assemblies rated at 2,200 lbs. per axle. It comes with high-quality spindle hardware, dust caps, and lug nuts to simplify installation and help keep your trailer road-ready. Each brake assembly includes Dexter-compatible part numbers for added versatility.

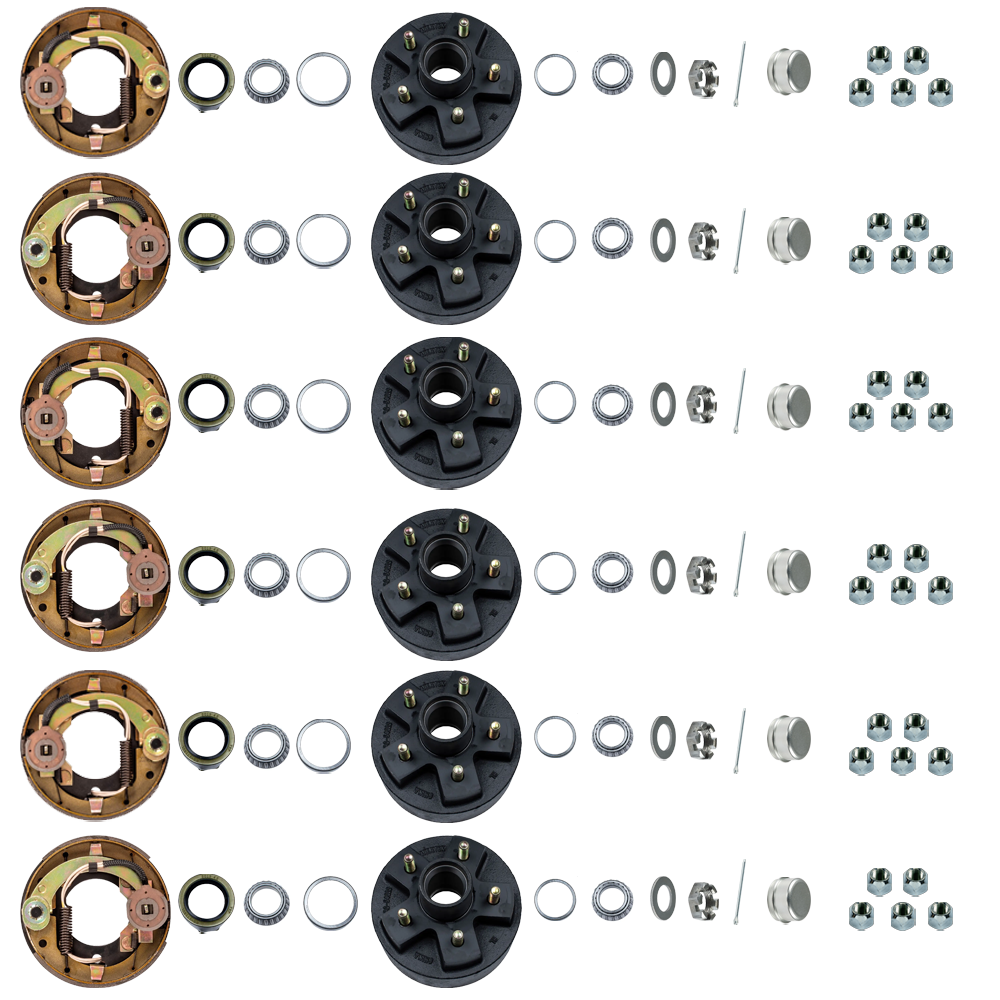

Bundle Contents:

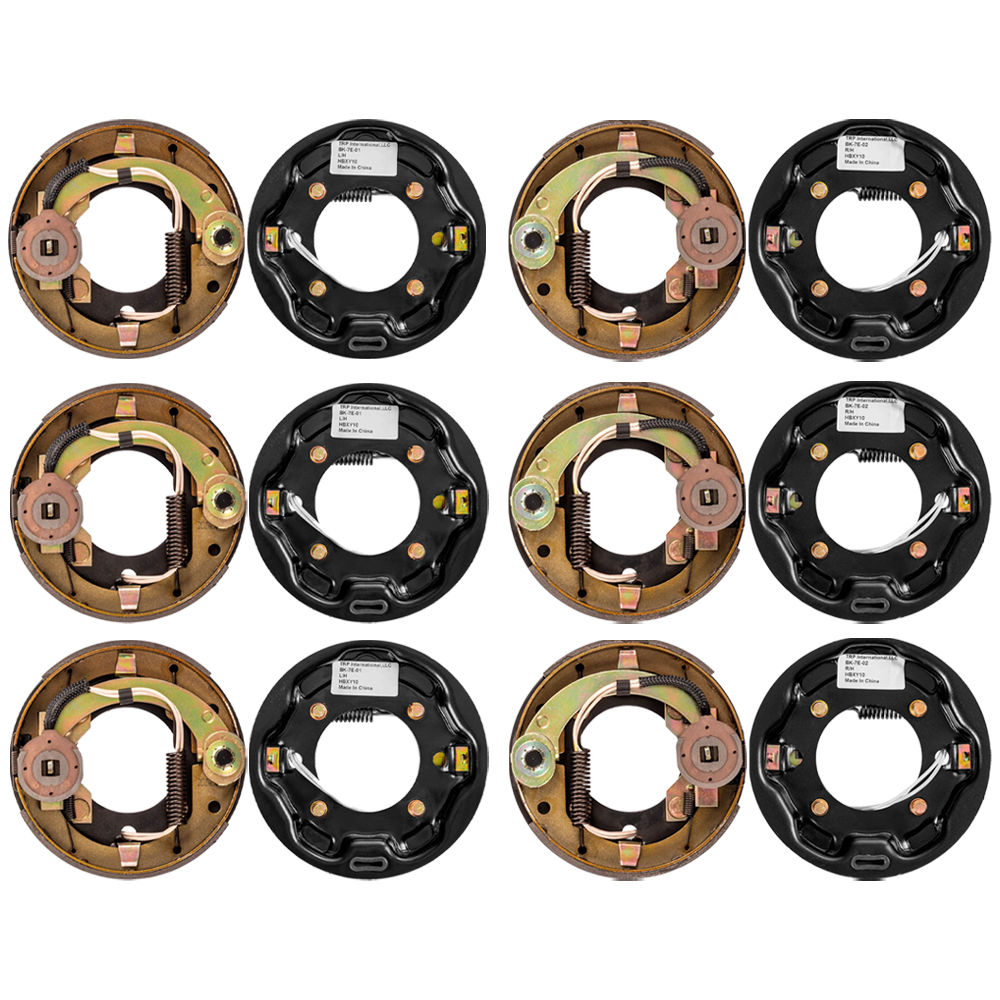

- QTY (3): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. - Left Side
- Genuine Lippert® replacement part
- Left hand (roadside)
- For 10", 12", or 13" wheels
- Brake size: 7" x 1.25"
- Axle rating: 2,200 lbs.
- Four-bolt mounting pattern
- Manual adjustment
- Dexter Compatible Part Number(s): K23-047-00 | 023-047-00
- 1-year warranty
- QTY (3): Electric Brake Assembly, 7" x 1.25"; 2,200 lbs. - Right Side
- Genuine Lippert® replacement part
- Right hand (curb side)
- For 10", 12", or 13" wheels
- Brake size: 7" x 1.25"
- Axle rating: 2,200 lbs.
- Four-bolt mounting pattern
- Manual adjustment
- Dexter Compatible Part Number(s): K23-048-00 | 023-048-00
- 1-year warranty

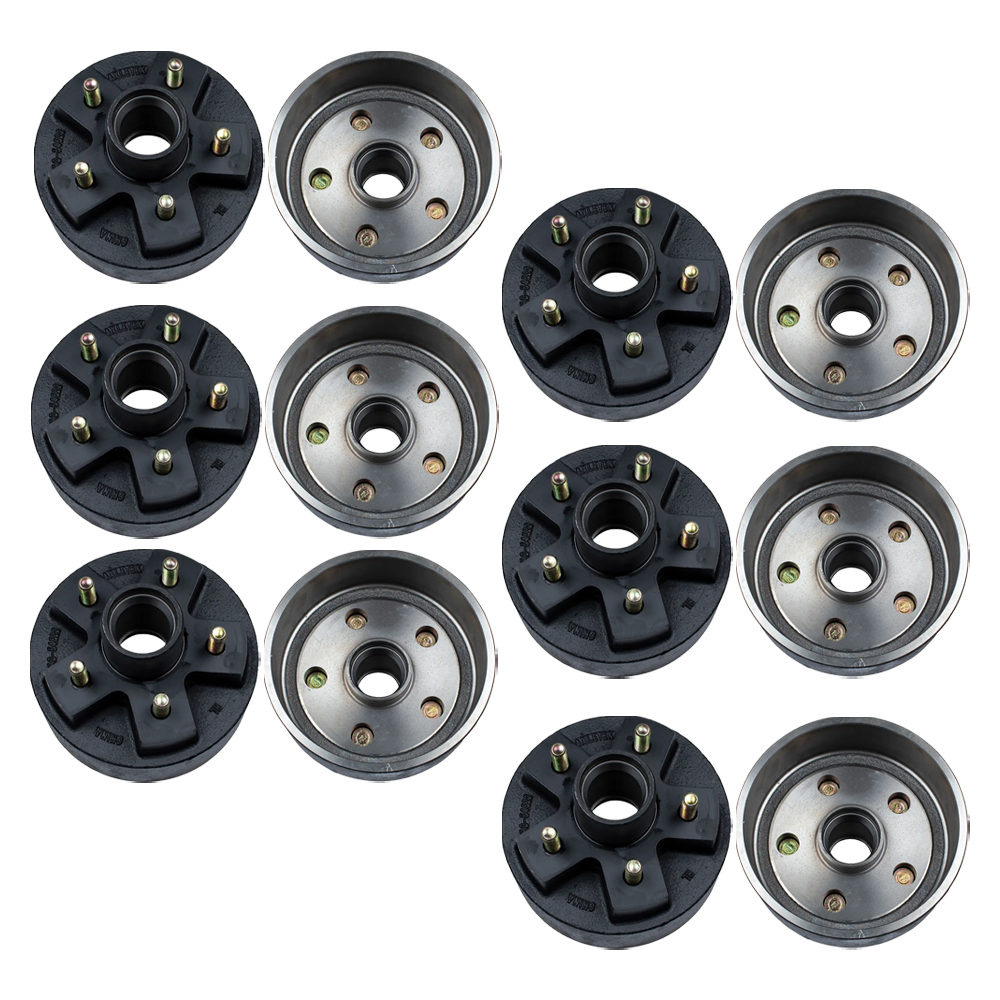

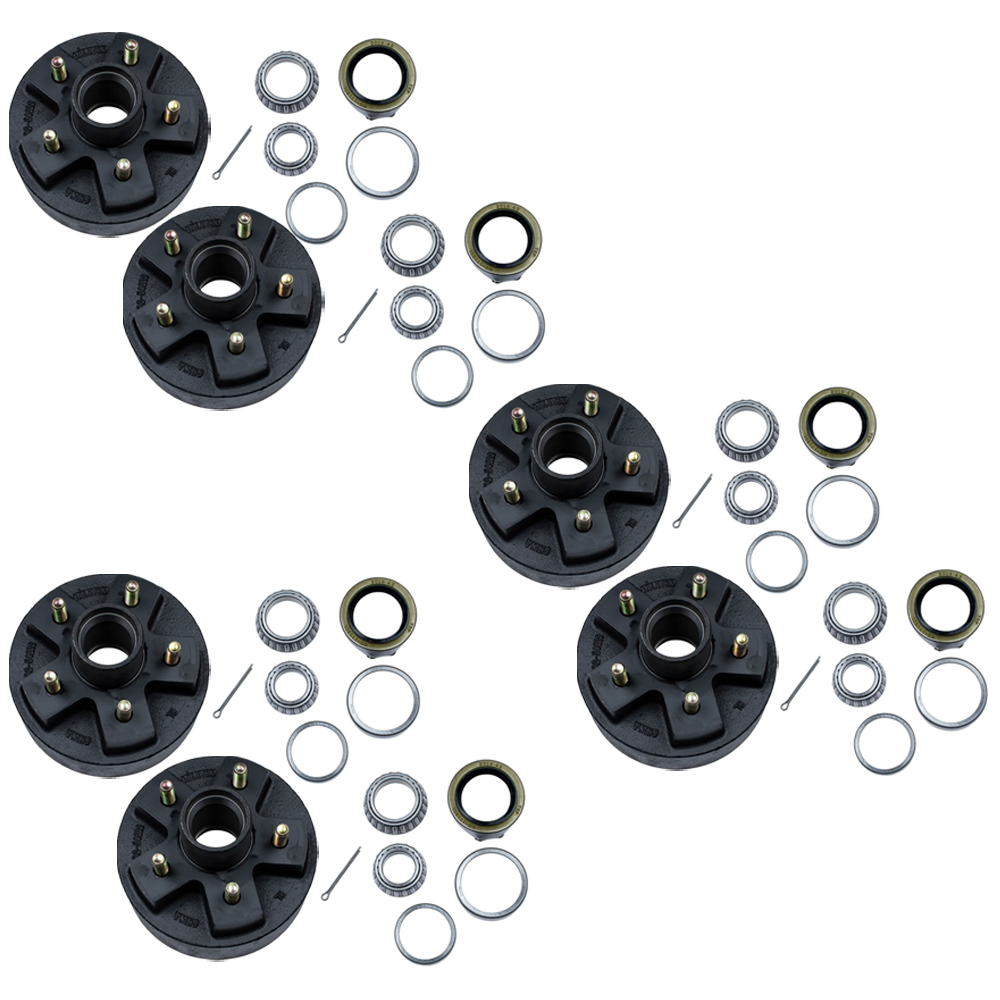

- QTY (6): 7" Brake Hub, 5 on 4.5"; 1/2" Stud - 2,200 lbs. (with Bearing Cone Kit)
- Lippert® genuine replacement part (#134206)
- Axle rating: 2,200 lbs.
- Wheel size compatibility: 8" to 12"
- Bolt pattern: 5 on 4.5"
- Stud size: 1/2"

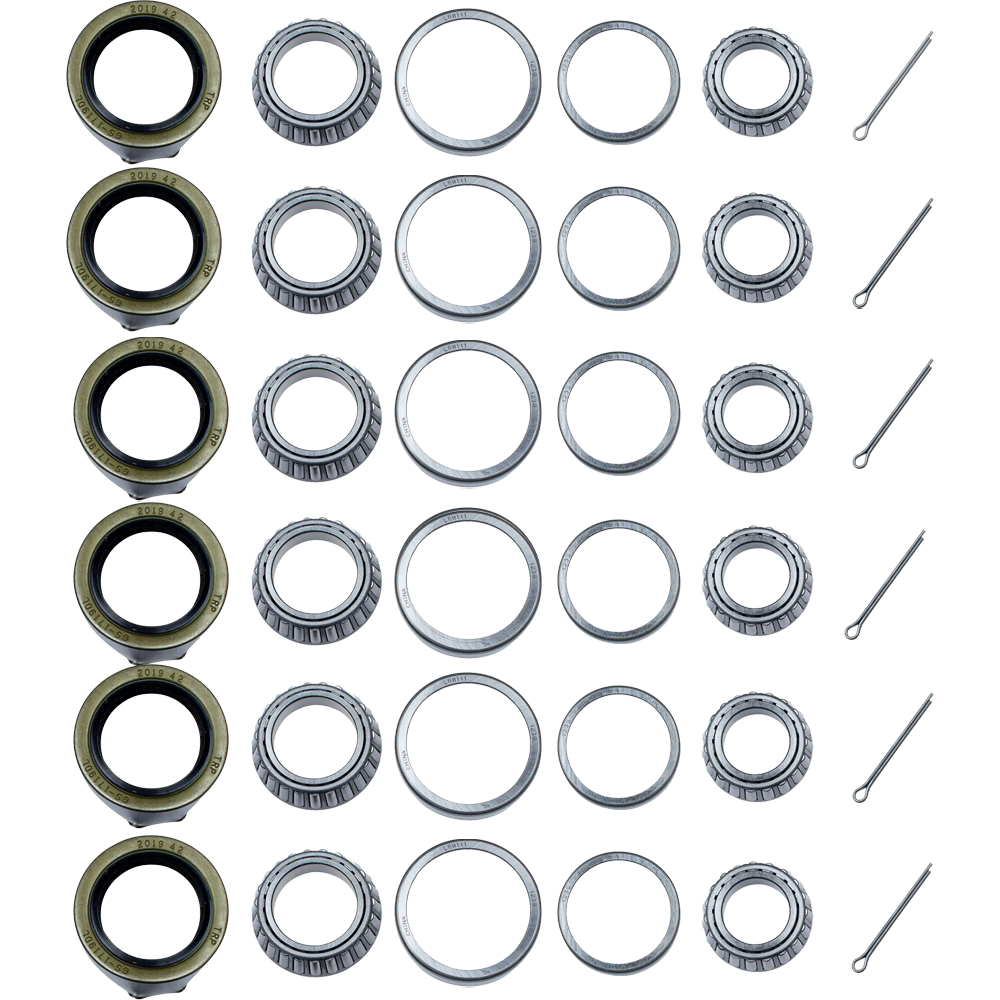

- Includes (6) bearing kits total — each hub has its own kit:
- 1 Inner Bearing Cone
- 1 Outer Bearing Cone
- 1 Inner Bearing Cup
- 1 Outer Bearing Cup
- 1 Cotter Pin
- 1 Double Lip Grease Seal
- 1-year warranty

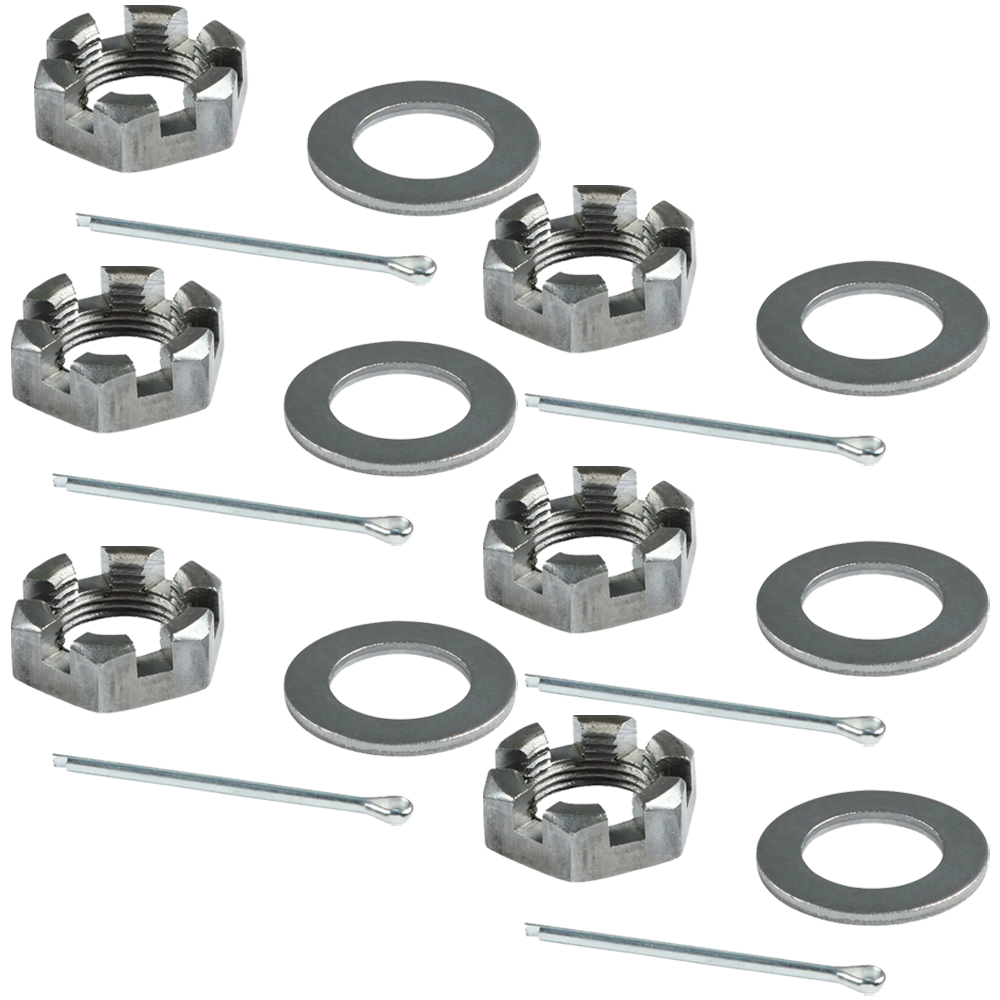

- QTY (6): 1" Round Spindle Nut Retainer Kit for 3,500-8,000-lb. Axle Hubs
- Complete spindle nut retainer kit
- (1) 6-slot castle spindle nut with 1"-14 threads
- (1) Round spindle washer with 1" ID, 1.68" OD
- (1) 1.75" cotter pin

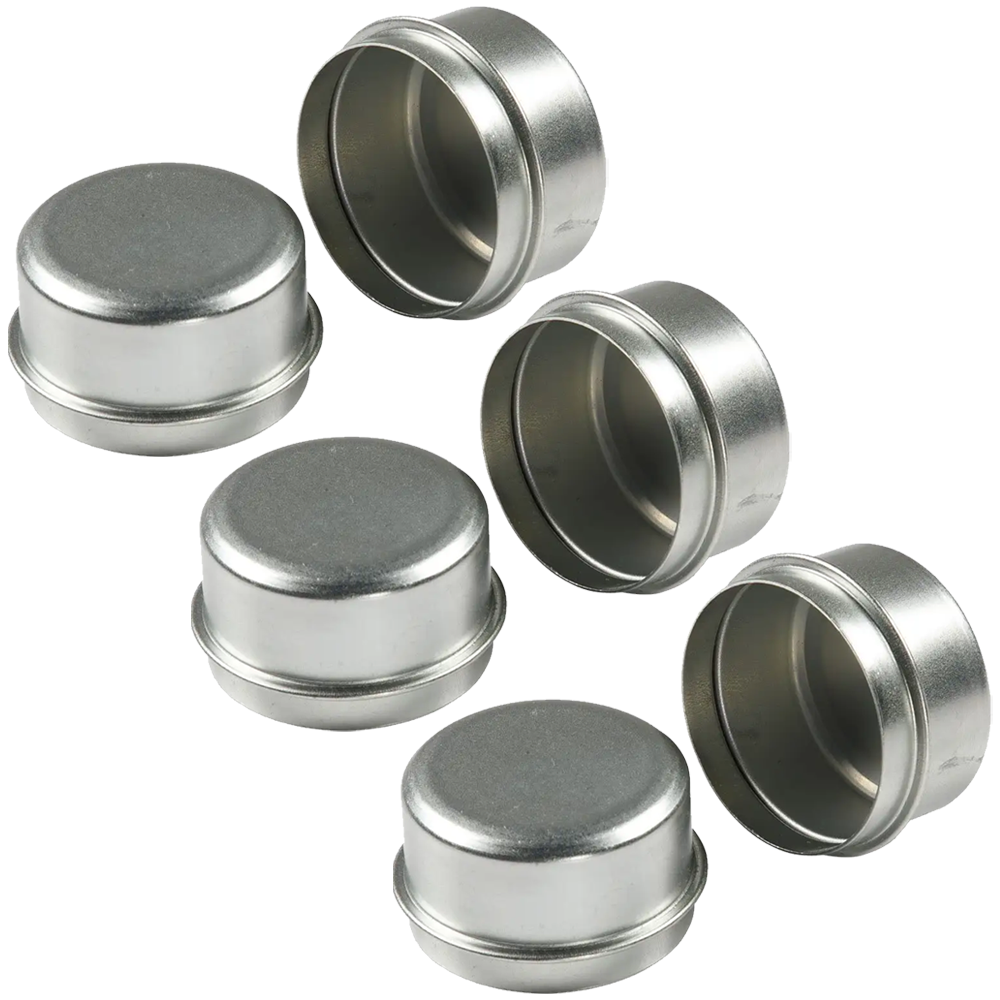

- QTY (3): Dust Cap - 2,000-3,500-lb. Axles (Pack of 2)
- Replacement dust caps (3 packs total = 6 caps)
- For 2,000-3,500-lb. axle capacities
- 1.988" outer diameter
- 1-1/4" tall

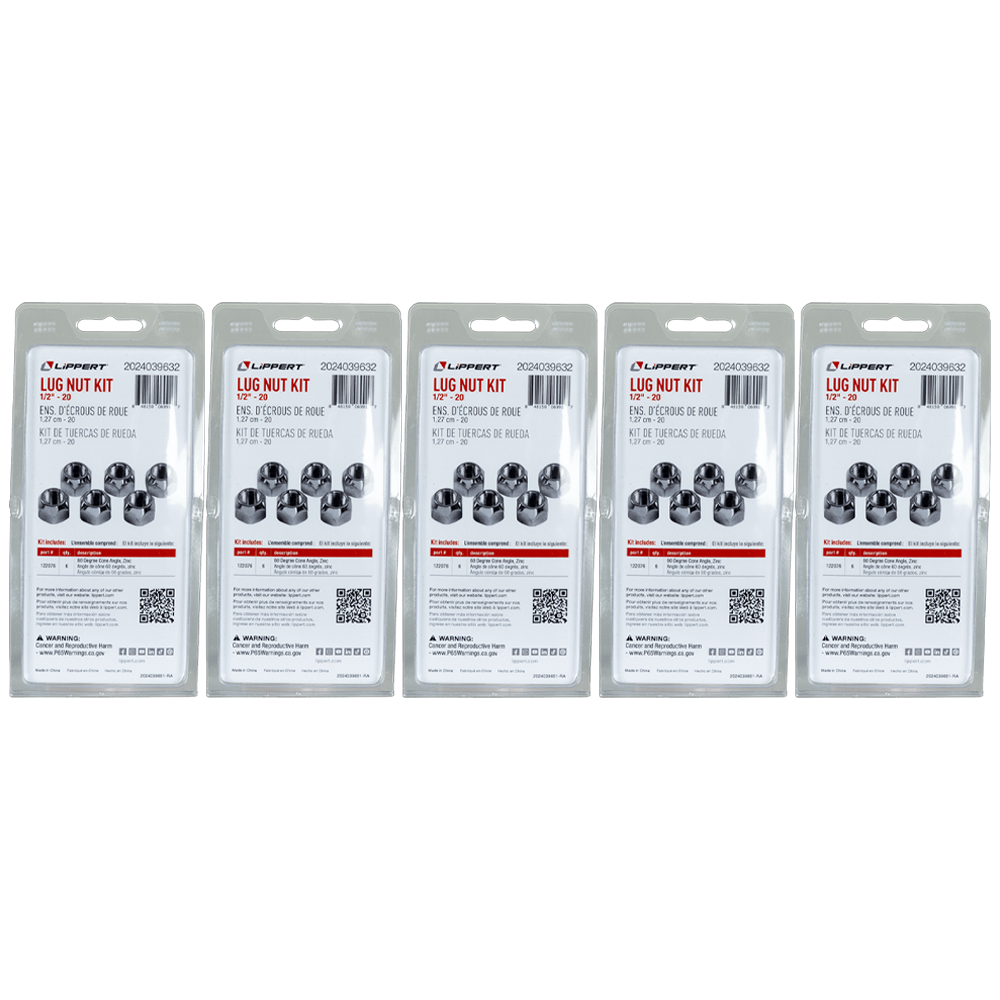

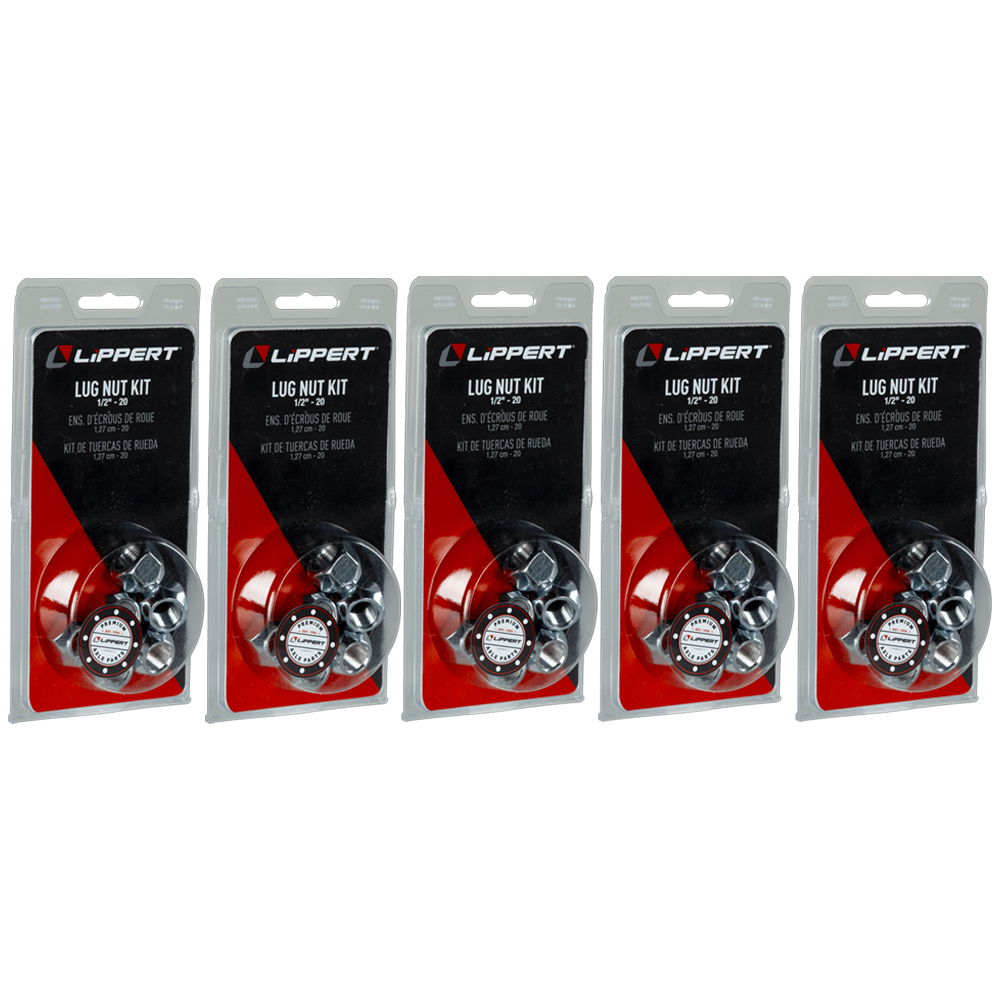

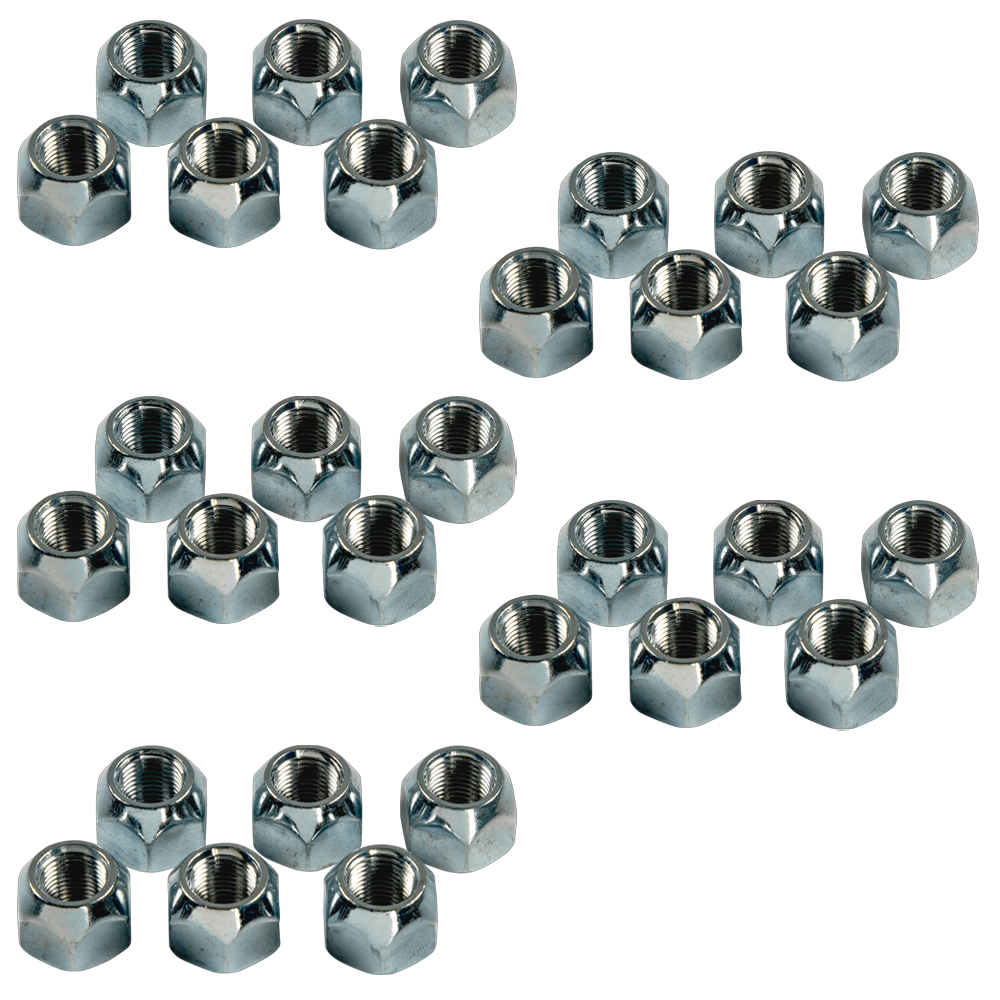

- QTY (5): Lippert 60° Cone Trailer Lug Nut - 1/2"-20
- Fits 1/2"-20 lug studs
- Common replacement for 2,200-lb. capacity Lippert wheel hubs
- 60-degree cone design
- Each set is a 6-pack (5 packs total = 30 lug nuts)
- Ships in a retail clam shell package
Always verify your existing trailer components and follow a consistent maintenance schedule. Check brake assemblies, hubs, and hardware every 3,000 miles to ensure optimum safety and performance on the road.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Axle Rating | 2,200-lb. per axle |
| Brake Drum Dimensions | 7" x 1.25" |
| Brake Mounting Pattern | 4-bolt |
| Hub Bolt Pattern | 5 on 4.5" |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 1/2" |
| Type of Adjustment | Manual |
| Brake Location | Left & Right (Triple Axle) |
| Wheel Size Compatibility | 8" to 12" |
$722 99 $1,169.70 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,169.70 $722 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP88HBA
- Includes: Left Electric Brake Assembly (x3), Right Electric Brake Assembly (x3), 7" Brake Hub (x6), Spindle Nut Retainer Kit (x5), Dust Cap (x3), 60° Cone Trailer Lug Nut (x5)
