Lippert Triple Axle Suspension Kit – 1.75" Tube, 35" Spacing, 3,500 lb (24-7/8" Unloaded) Leaf Springs, Long Equalizer, Hangers & Hardware – Dexter/Alko/Rockwell Compatible
Model: LP203ASKLippert Triple Axle Suspension Kit – 1.75" Tube, 35" Spacing, 3,500 lb Leaf Springs (24-7/8" Unloaded), Long Equalizer, Hangers & Hardware
Upgrade your trailer’s suspension system with this all-in-one Lippert triple axle kit. Built for 3,500 lb leaf springs that measure 24-7/8" unloaded, this bundle includes long equalizers, 1.75" axle tube mounting hardware, and front/center/rear hangers to streamline installation. Whether you rely on Dexter, Alko, Lippert, Rockwell, or Quality Axles, this kit delivers exceptional performance and durability.

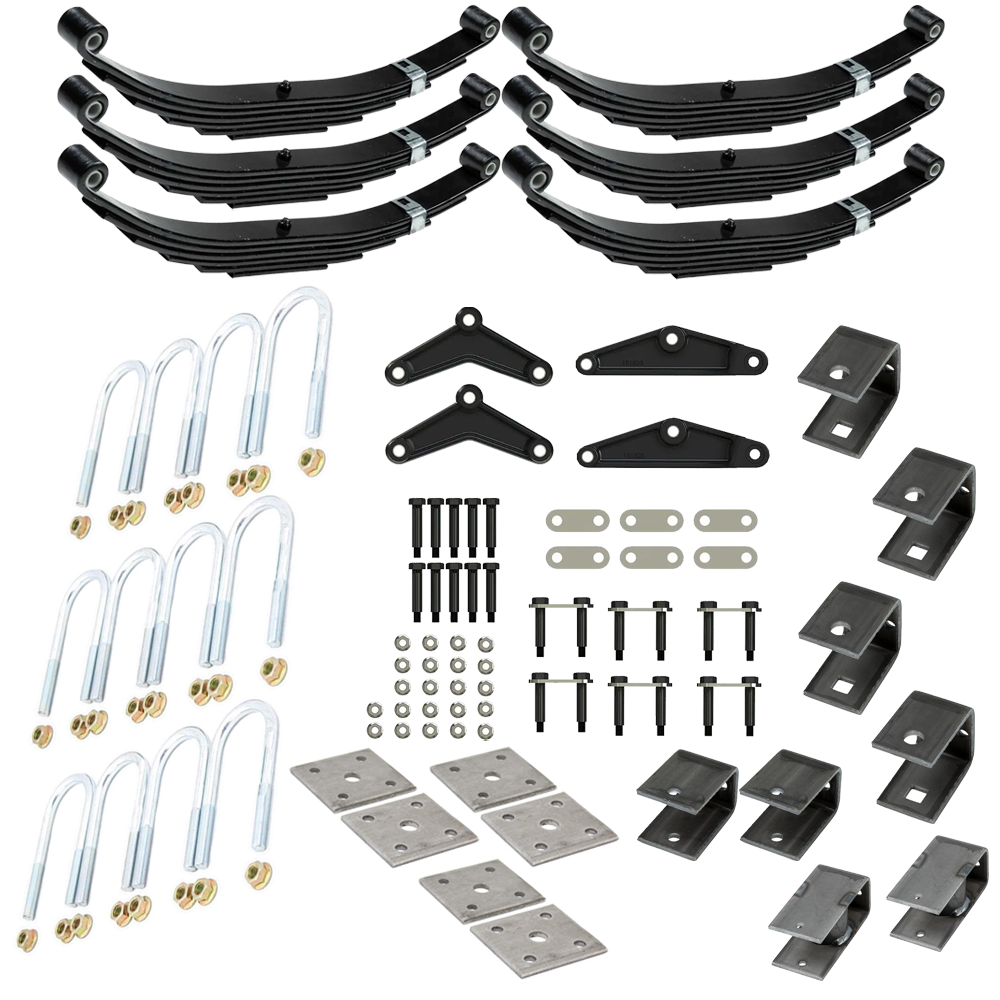

Bundle Contents:
- QTY (6): Replacement Leaf Spring – 26", 3,500 lbs.
- Replacement leaf spring for RV trailer (unloaded length: 24-7/8", loaded length: 26")
- 3,500 lb capacity, 6 leaves, 1-3/4" spring width
- Please reference your original equipment before purchasing
- Dexter Compatible Part Number: 072-027-00
- QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
- Replacement triple axle AP kit for Lippert and competitor axles
- Includes shackle links, standard bolts, mounting hardware, and long equalizers
- Direct replacement Lippert component installs like original
- QTY (3): Axle Mounting Kit – 1.75" Tube
- Direct replacement mounting kit for 1.75" axle tubes
- U-bolt design for secure fit
- Check original hardware before purchasing
- Dexter Compatible Part Number: K71-391-00
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000 lb Rating
- Welded to chassis for axle and component mounting
- Length: 4-5/16", Width: 2-3/16"
- Hole size: 9/16", Distance to hole: 3-9/16" on-center
- Axle capacity: 2,200-8,000 lbs.
- Dexter Compatible Part Number: 028-001-00
- QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000 lb Rating
- Welded to chassis for axle and component mounting
- Length: 4-1/2", Width: 3-1/8"
- Hole size: 7/8", Distance to hole: 3-5/16"
- Axle capacity: 2,200-8,000 lbs.
- Dexter Compatible Part Number: 029-001-00
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000 lb Rating
- Welded to chassis for axle and component mounting
- Length: 6", Width: 2-1/4"
- Hole size: 5/16", Distance to hole: 4"
- Axle capacity: 2,200-8,000 lbs.
- Dexter Compatible Part Number: 030-028-00
Always confirm your trailer’s original specifications before installation. Regularly inspect and maintain your suspension system for safe operation.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple Axle Suspension Kit |
| Axle Rating | 3,500 lbs |
| Leaf Spring Capacity | 3,500 lbs Each |
| Number of Leaves per Spring | 6 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 24-7/8" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3-1/4" |
| Arch Height Loaded | 1-3/4" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 1.75" |
| Equalizer Type | Long Equalizer |
| Axle Configuration | Triple Axle |
$814 99 $1,086.10 25% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,086.10 $814 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP203ASK
- Includes: Double-Eye Leaf Spring (x6), Suspension Kit, Axle Mounting Kit (x3), Front Axle Hanger (x2), Center Axle Hanger (x4), Rear Axle Hanger (x2)
