Lippert Triple Axle Suspension Kit (1,750 lb Leaf Springs – 25‑1/2" Unloaded), 3" Axle Tube, 33" Axle Spacing, Standard Equalizer, Includes Hangers & Hardware – Dexter, Alko, Lippert, Rockwell, Quality Axles Compatible
Model: LP171ASKLippert Triple Axle Suspension Kit – 3" Axle Tube – 33" Axle Spacing – 1,750 lb Leaf Springs (25-1/2" Unloaded) – Standard Equalizer – Hangers & Hardware
This complete triple axle suspension bundle from Lippert is designed for reliability and smoother towing performance. With six 1,750 lb leaf springs (25-1/2" unloaded, 26" loaded) and all the necessary hangers, hardware, and standard equalizers, this kit ensures you’re set for a top-quality installation. Perfect for Dexter, Alko, Lippert, Rockwell, and other quality axle systems.
Bundle Contents:
- QTY (6): Lippert Replacement Leaf Spring – 26" Loaded Length, 1,750 lbs.
- Replacement leaf spring for RV trailer
- 4 leaves, 1-3/4" width
- Unloaded eye-to-eye length: 25-1/2"
- Loaded eye-to-eye length: 26"
- Arch height (unloaded): 3" • Arch height (loaded): 1-1/2"
- Spring eye diameter: 9/16"
- Dexter Compatible Part Number: 072-042-00

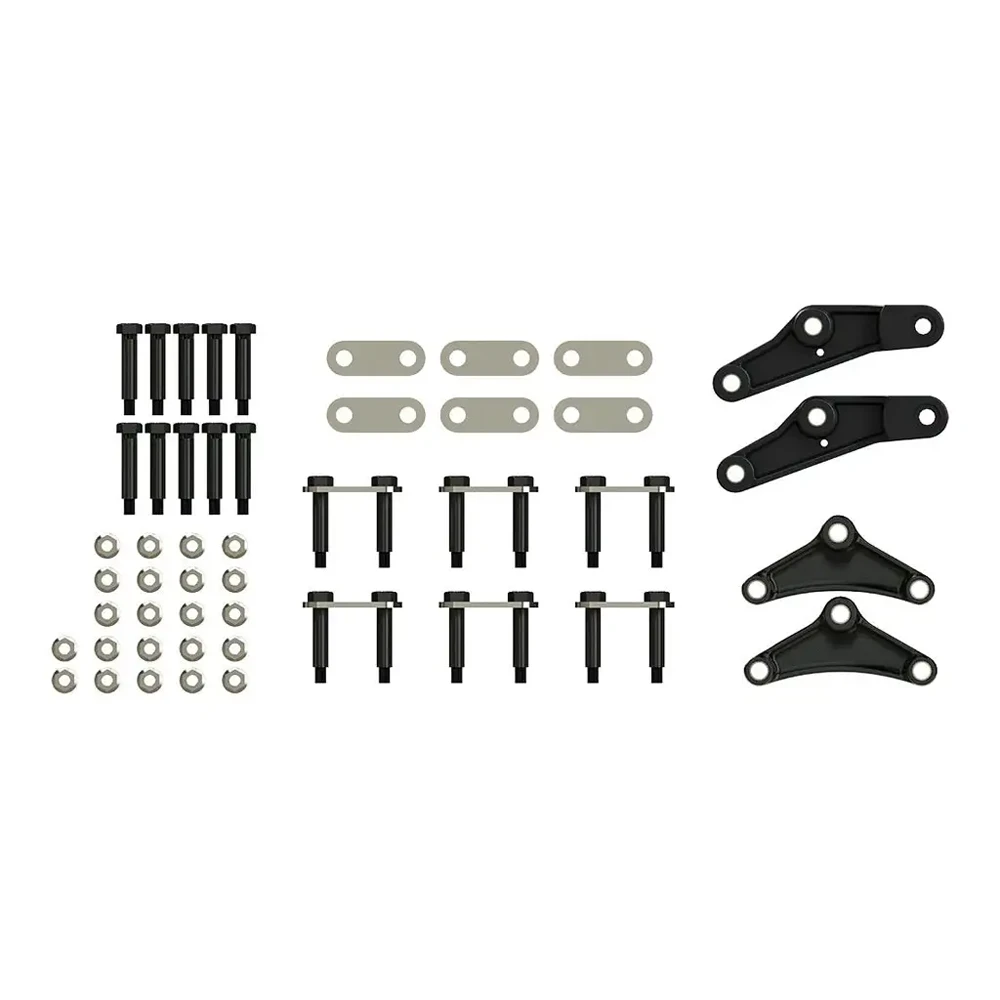

- QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
- Replacement triple axle AP kit
- Includes shackle links, mounting hardware, and standard equalizers
- Dexter Compatible Part Number: A/P-335-00
- QTY (3): Lippert Axle Mounting Kit – 3" Tube
- Replacement axle mounting kit for 3" axle tubes
- U-bolt design
- Please consult your original hardware before purchasing
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
- Welded to chassis to allow mounting of axles and axle components
- Length: 4-5/16" • Width: 2-3/16"
- Distance to hole: 3-9/16" on-center • Hole size: 9/16"
- Dexter Compatible Part Number: 028-001-00
- QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
- Axle capacity range: 2,200–8,000 lbs.
- Length: 4-1/2" • Width: 3-1/8"
- Distance to hole: 3-5/16" • Hole size: 7/8"
- Dexter Compatible Part Number: 029-001-00
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
- Axle capacity range: 2,200–8,000 lbs.
- Length: 6" • Width: 2-1/4"
- Distance to hole: 4" • Hole size: 5/16"
- Dexter Compatible Part Number: 030-028-00
Always verify compatibility with your trailer’s original equipment, follow routine maintenance practices, and adhere to manufacturer guidelines to keep your trailer operating at its best.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple Axle Suspension Kit |
| Axle Rating | 2,200–8,000 lbs. |
| Leaf Spring Capacity | 1,750 lbs. each |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 25-1/2" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3" |
| Arch Height Loaded | 1-1/2" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 3" |
| Equalizer Type | Standard |
| Axle Configuration | Triple Axle |
$711 99 $850.15 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$850.15 $711 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $177.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP171ASK
- Includes: Double-Eye Leaf Spring (x6), Suspension Kit, Axle Mounting Kit (x3), Front Axle Hanger (x2), Center Axle Hanger (x4), Rear Axle Hanger (x2)
