Lippert Triple Axle Suspension Kit – 2.375" Axle Tube – 33" Axle Spacing – 23-1/8" (1,250 lb) Leaf Springs w/ Standard Equalizer, Hangers & Hardware – Dexter, Alko, Rockwell Compatible
Model: LP139ASKLippert Triple Axle Suspension Kit – 2.375" Tube, 33" Spacing, 1,250 lb Leaf Springs (23-1/8" Unloaded) w/ Standard Equalizer & Hangers
Upgrade or replace your trailer’s suspension with this complete Lippert triple axle kit. Built for 2.375" axle tubes on 33" centers, these 1,250 lb (each) leaf springs feature an unloaded eye-to-eye length of 23-1/8". Ideal for Lippert, Dexter, Alko, Rockwell, and other quality axles, this kit includes standard equalizers, all necessary hangers, and hardware for a reliable, road-ready setup.

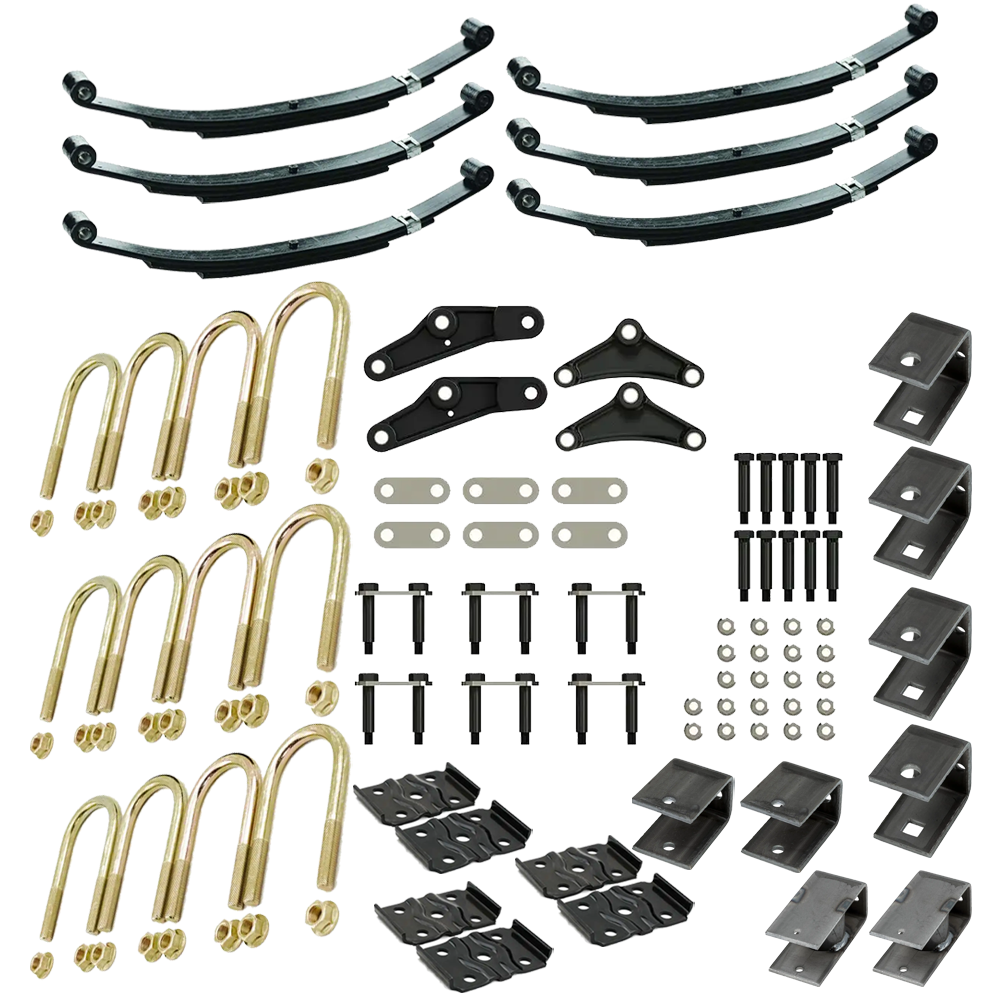

Bundle Contents:

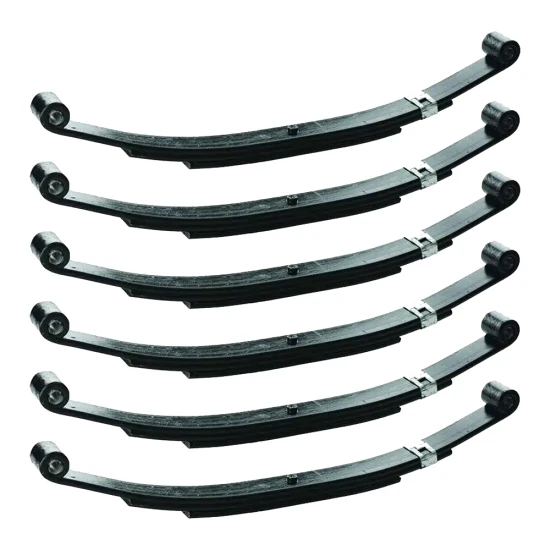

- QTY (6): 1,250 lb Leaf Springs – 23-1/8" Unloaded Length
- Capacity: 1,250 lbs. each
- 3-leaf design, 1-3/4" wide

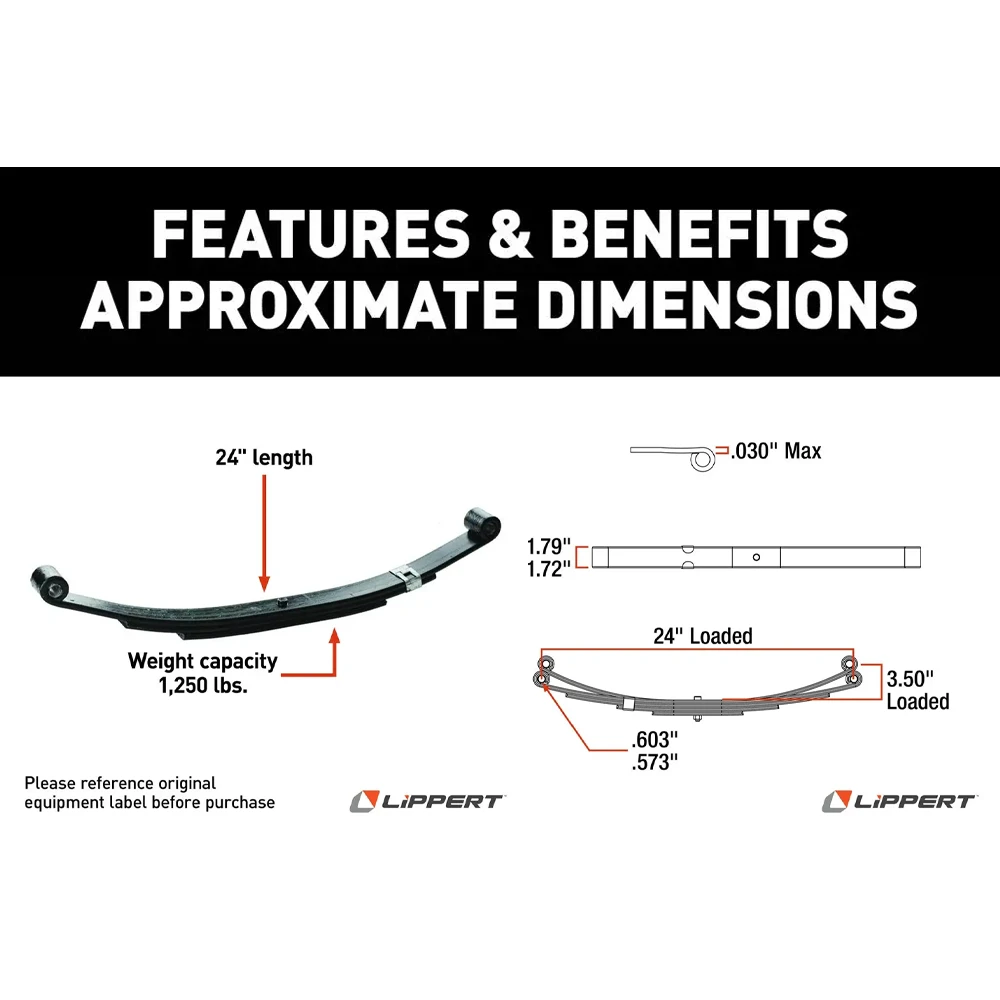

- 23-1/8" eye-to-eye (unloaded), 24" (loaded)
- Arch Height: 3-1/2" (unloaded), 2-1/2" (loaded)
- Spring Eye Diameter: 9/16"
- QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
- Connects leaf springs and axles
- Standard equalizer for balanced load distribution
- Includes shackle links, mounting hardware, and bolts
- QTY (3): Lippert Axle Mounting Kit – Fits 2.375" Tube
- U-bolt design for secure clamping
- Exact-match component for easy, OEM-like installation
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16"
- Distance to hole: 3-9/16" on-center
- Hole size: 9/16"
- Welded to chassis for mounting axles and components
- Supports 2,200–8,000 lb axles
- QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8"
- Distance to hole: 3-5/16"
- Hole size: 7/8"
- Supports 2,200–8,000 lb axles
- Universal design compatible with competitor axles
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4"
- Distance to hole: 4"
- Hole size: 5/16"
- Supports 2,200–8,000 lb axles
- Welded to chassis for proper axle alignment
For best results, confirm compatibility with your trailer’s original specifications. Regularly inspect and maintain your suspension to ensure safe travels and long-lasting performance.
| Specifications: | |
|---|---|
| Kit Type | Triple Axle Suspension Kit |
| Axle Rating | 2,200–8,000 lb (per axle) |
| Leaf Spring Capacity | 1,250 lbs. each |
| Number of Leaves per Spring | 3 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 23-1/8" |
| Loaded Eye-to-Eye Length | 24" |
| Arch Height Unloaded | 3-1/2" |
| Arch Height Loaded | 2-1/2" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 2.375" |
| Equalizer Type | Standard |
| Axle Configuration | Triple |
$546 99 $637.15 14% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$637.15 $546 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP139ASK
- Includes: Double-Eye Leaf Spring (x6), Suspension Kit, Axle Mounting Kit (x3), Front Axle Hanger (x2), Center Axle Hanger (x4), Rear Axle Hanger (x2)
