Lippert Triple Axle Suspension Kit – 2.375" Axle Tube, 35" Spacing, 2,600 lb Leaf Springs (25‑1/4" Unloaded), Long Equalizers, Hangers & Hardware – Dexter/Alko/Rockwell Compatible
Model: LP190ASKLippert Triple Axle Suspension Kit – Complete Replacement for Dexter, Alko, and Rockwell
Give your triple axle trailer a complete suspension refresh with this Lippert bundle, designed for 2.375" axle tubes, 35" axle spacing, and 2,600 lb-rated springs (25-1/4" unloaded length). This kit comes with front, center, and rear hangers, long equalizers, and all necessary mounting hardware to restore proper ride height, alignment, and durability.
Bundle Contents:
- QTY (6): Replacement Leaf Spring for RV Trailer Suspension System – 2,600 lbs.
- Capacity: 2,600 lbs. each, 4 leaves, 1-3/4" width
- 25-1/4" unloaded eye-to-eye length, 26" loaded length
- Arch height unloaded: 3-1/8", loaded: 1-3/4"
- Spring eye diameter: 9/16"
- Restores and maintains optimal suspension performance
- Dexter Compatible Part Number: 072-026-00

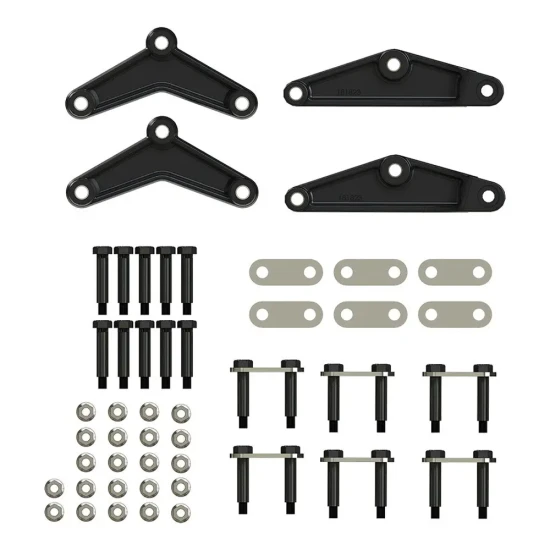

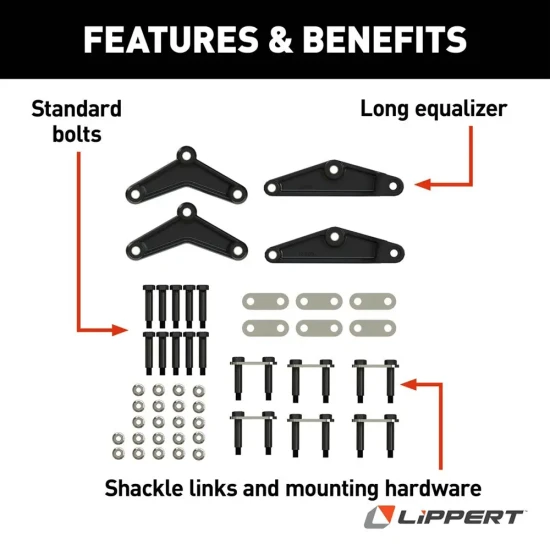

- QTY (1): Triple Axle AP Kit with Long Equalizer and Standard Bolts
- Direct replacement triple axle AP kit
- Includes shackle links, standard bolts, and long equalizers
- Helps distribute load evenly and smooth out the ride
- Installs just like your original equipment
- QTY (3): Lippert Axle Mounting Kit – 2.375" Tube
- Exact-match replacement for 2.375" axle tubes
- U-bolt style design for secure suspension mounting
- Maintains correct axle alignment
- Installs easily as a direct replacement
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
- Length: 4-5/16", Width: 2-3/16"
- Hole size: 9/16", Distance to hole: 3-9/16" on-center
- Welds to chassis for front-axle mounting
- Dexter Compatible Part Number: 028-001-00
- QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
- Length: 4-1/2", Width: 3-1/8"
- Hole size: 7/8", Distance to hole: 3-5/16"
- Stabilizes the center axle in triple-axle configurations
- Dexter Compatible Part Number: 029-001-00
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
- Length: 6", Width: 2-1/4"
- Hole size: 5/16", Distance to hole: 4"
- Welds to chassis for rear-axle mounting
- Dexter Compatible Part Number: 030-028-00
Always verify your axle tube diameter, spring length, and hardware requirements before purchasing. Regular inspections and proper maintenance of suspension components help ensure smooth, safe towing.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple Axle Suspension & Hanger Kit |
| Axle Rating | 2,200-8,000 lbs. (Per Hanger Rating) |
| Leaf Spring Capacity | 2,600 lbs. Each |
| Number of Leaves per Spring | 4 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 25-1/4" |
| Loaded Eye-to-Eye Length | 26" |
| Arch Height Unloaded | 3-1/8" |
| Arch Height Loaded | 1-3/4" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 2.375" |
| Equalizer Type | Long Equalizers with Standard Bolts |
| Axle Configuration | Triple Axle |
$819 99 $1,044.10 21% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,044.10 $819 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $204.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP190ASK
- Includes: Double-Eye Leaf Spring (x6), Suspension Kit, Axle Mounting Kit (x3), Front Axle Hanger (x2), Center Axle Hanger (x4), Rear Axle Hanger (x2)
