Lippert Triple Axle Suspension Kit – 3" Axle Tube, 33" Axle Spacing, 1,250 lb (23-1/8" Unloaded) Leaf Springs, Standard Equalizer, Hangers & Hardware for Dexter, Alko, Rockwell, Quality Axles
Model: LP141ASKLippert Triple Axle Suspension Kit – 3" Axle Tube, 33" Axle Spacing, 1,250 lb (23-1/8" Unloaded) Leaf Springs, Standard Equalizer, Hangers & Hardware

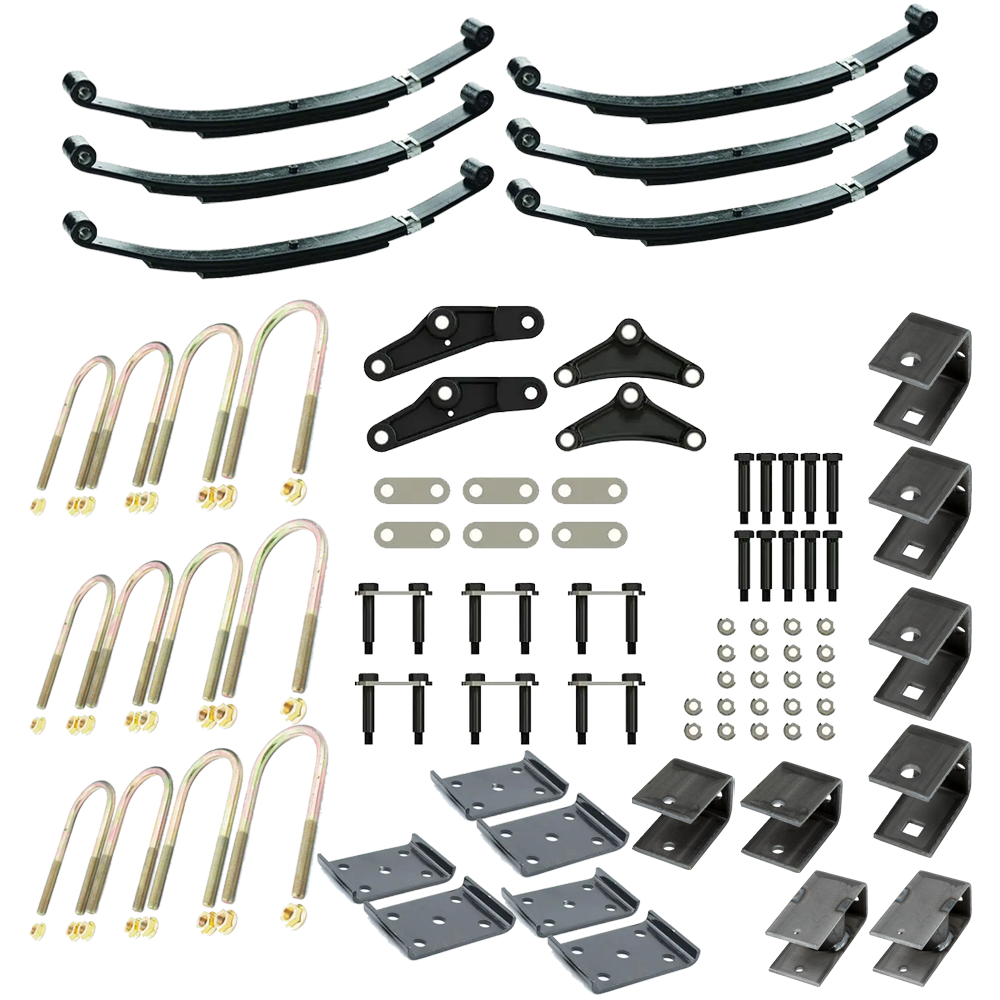

Upgrade your triple axle trailer with this complete Lippert suspension kit, designed to work with Dexter, Alko, Rockwell, and other quality axles. Featuring six high-capacity leaf springs (1,250 lb each) that measure 23-1/8" unloaded eye-to-eye, this kit also includes three axle mounting kits, one triple axle AP kit with standard equalizer, plus front, center, and rear hangers. Everything you need to revitalize your trailer’s suspension and enjoy smoother, more reliable towing is right here.
Bundle Contents:
- QTY (6): 24" Leaf Spring Loaded Length – 1,250 lbs.
- Capacity: 1,250 lbs. each
- Width: 1-3/4"
- Unloaded eye-to-eye length: 23-1/8"
- Loaded length: 24"
- QTY (1): Triple Axle AP Kit with Standard Equalizer and Standard Bolts
- Replacement triple axle AP kit
- Standard equalizers and bolts
- Includes shackle links and mounting hardware
- QTY (3): Lippert Axle Mounting Kit – 3" Tube
- Replacement axle mounting kit
- U-bolt design for 3" axle tubes
- Installs like your original equipment
- QTY (2): Front Trailer Axle Hanger – 4-5/16" x 2-3/16", 2,200-8,000-lb. Axle Rating
- Welded to chassis for mounting axles and components
- Length: 4-5/16", Width: 2-3/16", Hole size: 9/16"
- Distance to hole: 3-9/16" on-center
- Axle capacity: 2,200 lbs.
- QTY (4): Center Trailer Axle Hanger – 4-1/2" x 3-1/8", 2,200-8,000-lb. Axle Rating
- Location: Center
- Length: 4-1/2", Width: 3-1/8", Hole size: 7/8"
- Distance to hole: 3-5/16"
- Axle capacity: 2,200 – 8,000 lbs.
- QTY (2): Rear Trailer Axle Hanger – 6" x 2-1/4", 2,200-8,000-lb. Axle Rating
- Location: Rear
- Length: 6", Width: 2-1/4", Hole size: 5/16"
- Distance to hole: 4"
- Axle capacity: 2,200 – 8,000 lbs.
Always verify fitment with your trailer’s original equipment manufacturer and perform routine checks to ensure safe towing. Proper maintenance of your suspension system will keep your trailer operating smoothly and reliably.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple Axle Suspension Kit |
| Axle Rating | 2,200 – 8,000 lbs. |
| Leaf Spring Capacity | 1,250 lbs. each |
| Number of Leaves per Spring | 3 |
| Leaf Spring Width | 1-3/4" |
| Unloaded Eye-to-Eye Length | 23-1/8" |
| Loaded Eye-to-Eye Length | 24" |
| Arch Height Unloaded | 3-1/2" |
| Arch Height Loaded | 2-1/2" |
| Spring Eye Diameter | 9/16" |
| Axle Tube Diameter | 3" |
| Equalizer Type | Standard |
| Axle Configuration | Triple |
$637 99 $754.15 15% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$754.15 $637 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: LIPPERT
- Model: LP141ASK
- Includes: Double-Eye Leaf Spring (x6), Suspension Kit, Axle Mounting Kit (x3), Front Axle Hanger (x2), Center Axle Hanger (x4), Rear Axle Hanger (x2)
