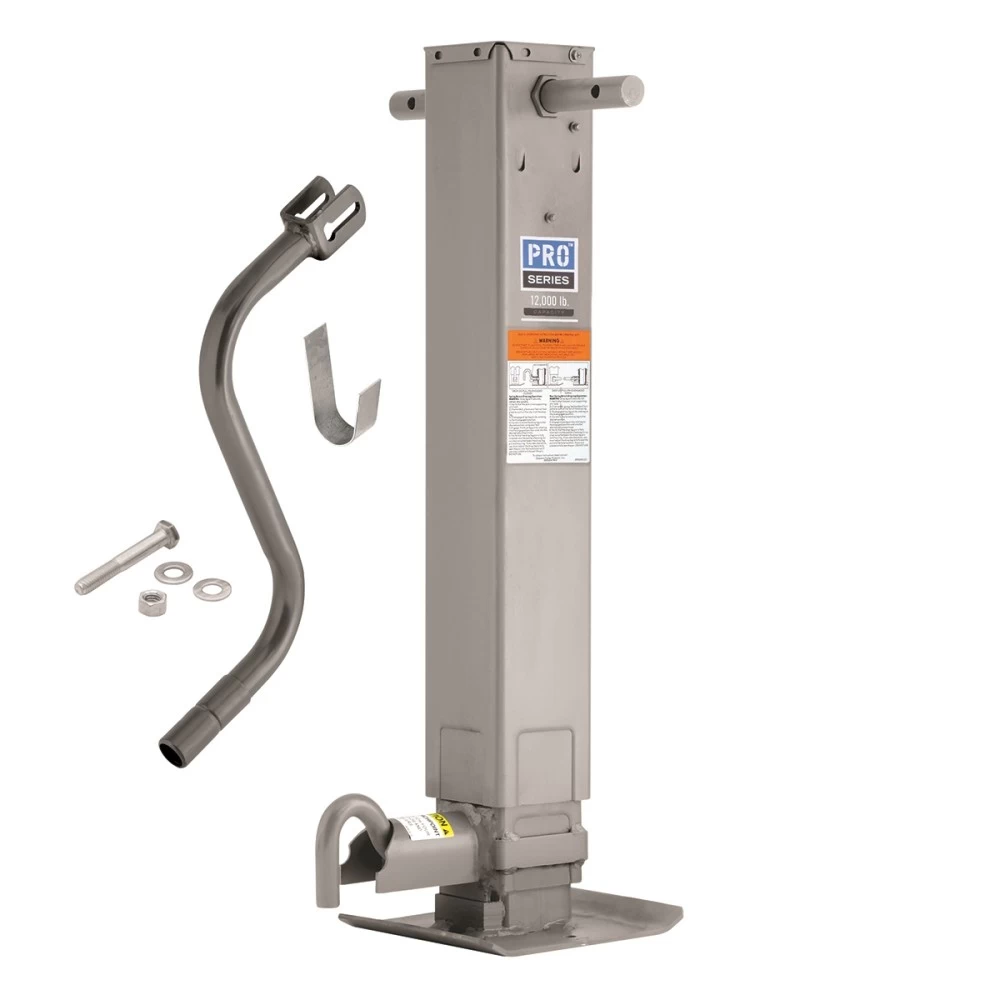

Pro Series 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Front w/ Crank
Model: 1400950376Strong, durable, and sturdy, the Pro Series 12,000 lbs. support capacity square jacks can be used on agricultural, construction, heavy-duty utility, and horse/livestock trailers. All Pro Series 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
Specifications:
-
Support Capacity: 12,000 lbs.
-
Lift Capacity: 10,000 lbs.
-
Retracted Bracket Height: 28.25"
-
Extended Bracket Height: 54.25"
-
Travel/Lift: 12.5"
-
This Jack is intended to be welded on directly onto your application
-
Spring Return Drop Leg w/ integrated footplate
-
Drop Leg offers 13.50" of additional adjustment
-
Drop Leg pull pin is on the front of the Jack, away from the handle
-
Crank included
-
4" Tubing width
Two of these Jacks can be used in tandem applications.
$191 37 $250.00 23% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$250.00 $191 37
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: 1400950376
- UPC: 783192027498
- Includes: 12000 lbs Square Jack
Specification | |
Jack Style | Direct Weld HD |
Finish | Black |
Static Capacity | 12000 |
Lift Capacity | 10000 |
Lift Style | Sidewind |
Travel | 26" |
Retracted | 28.25" |
Extended | 54.25" |
Clearance | Varies |
Tubing Width | 4" |
Leg | Drop Leg |
Swivel | No |
Foot | Footplate |
Jack Shape | Square |
Description Facts | Spring return drop leg, 26" travel with drop leg, pin to front, crank Included. Finish is black painted outer tube, inner tube, and drop leg. |
Spring Return | Yes |
Ask a Question about Pro Series 12,000 lbs. Square Trailer Jack 26" Lift Drop Leg Spring Return Pin on Front w/ Crank
Be the first to ask a question.
Description
Strong, durable, and sturdy, the Pro Series 12,000 lbs. support capacity square jacks can be used on agricultural, construction, heavy-duty utility, and horse/livestock trailers. All Pro Series 4" square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.
Specifications:
-
Support Capacity: 12,000 lbs.
-
Lift Capacity: 10,000 lbs.
-
Retracted Bracket Height: 28.25"
-
Extended Bracket Height: 54.25"
-
Travel/Lift: 12.5"
-
This Jack is intended to be welded on directly onto your application
-
Spring Return Drop Leg w/ integrated footplate
-
Drop Leg offers 13.50" of additional adjustment
-
Drop Leg pull pin is on the front of the Jack, away from the handle
-
Crank included
-
4" Tubing width
Two of these Jacks can be used in tandem applications.
