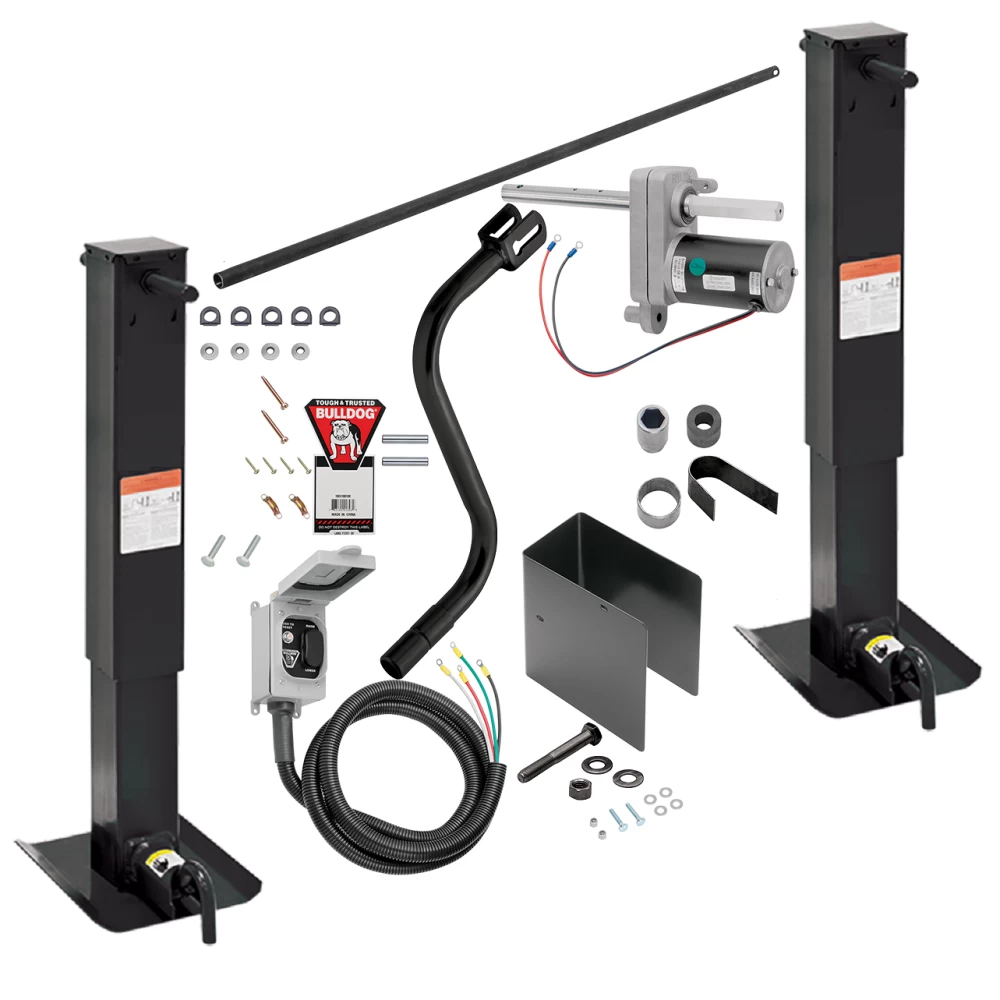

Pro Series 24K Electric Landing Gear Set Dual Single Speed Trailer Jacks Non Spring Return Drop Legs Side Plunger Pins w/ 2 Manual Override Cranks, Bulldog Electric Motor Powered-Drive Kit, Cross Shaft Tube w/ Slotted Ends and Hardware
Model: 1401010376X2 1824200100 CS730300Tandem 24K Dual Pro Series Trailer Jacks Landing Gear with Crosshaft and Bulldog Electric Motor
Revolutionize your trailering with the Pro Series Trailer Jacks - 1401010376, coupled with a crossdrive crosshaft CS730300 and enhanced by the Bulldog electric motor kit 1824200100. Ideal for various trailer types, this setup provides convenience and superior lifting capabilities.
Pro Series Trailer Jacks - 1401010376 (Quantity 2):
The Pro Series Trailer Jack - 1401010376 features sturdy steel construction and a sleek black coating. With a 20,000 lbs lifting capacity and 24,000 lbs static support capacity, these jacks are ready for challenging tasks.
Key Features:
- Robust Steel Construction
- Tandem control via crosshaft, unified with an electric motor for easy operation
- Manual Override Crank for power outage situations
- Weather-Resistant Black Finish
- Adjustable Drop Legs with Non-Spring Return for precise positioning
- Curbside Facing Plunger Pin for convenience (adjustment required for roadside-facing orientation)
- Grease Zerk Fittings for straightforward maintenance
- Direct-Weld Design ensuring secure installation
- Included Sidewind Crank and Footplate
Springless Drop Legs Ease:
Lift the pin and the drop leg lowers smoothly, requiring no manual force.
Landing Gear Technical Specifications:
- Bracket Height: 28-1/4" (Retracted), 54-1/4" (Extended)
- Total Lift: 26"
- Travel: 12-1/2"
- Drop Leg: 13-1/2"
- Manual Lift Capacity: 20,000 lbs
- Electric Lift Capacity: 15,000 lbs
- Static Support Capacity: 24,000 lbs
- 1-year warranty on Jack, 5-year on electric motor
Bulldog Electric Motor Powered-Drive Kit - 1824200100:
The Bulldog Electric Motor Kit is engineered for seamless integration with the Pro Series Jacks, offering a 7,500 lbs electric lift capacity per jack and maintenance-free operation.
Motor Features:
- Faster, Easier Lifting
- Single-Speed Jacks Compatibility
- Suitable for a wide range of trailers
- Compact, Quiet, Efficient
- Weatherproof for lasting use
- Manual Operation as backup
Crosshaft Specifications:
The Trailer Jack Cross Shaft Tube (72-3/4" long) with Slotted Ends and Hardware allows for tandem operation. Length is customizable for specific needs.
Choose the Pro Series Trailer Jacks 1401010376 with the electric motor kit 1824200100 for unmatched reliability and easy lifting. With a 5-year warranty and ASABE S485 compliance, these jacks offer strength and durability. Contact us at 877-869-6690 to upgrade your landing gear and enhance your trailering experience without manual effort.
