Pro Series Round 2,000 lbs. A-Frame Trailer Jack Sidewind 14" Lift w/ External Gearbox

Pro Series Round 2,000 lbs. A-Frame Trailer Jack Sidewind 14" Lift w/ External Gearbox

Pro Series Round 2,000 lbs. A-Frame Trailer Jack Sidewind 14" Lift w/ External Gearbox
Pro Series Round 2,000 lbs. A-Frame Trailer Jack Sidewind 14" Lift w/ External Gearbox
Home Trailer Parts Trailer Jacks A-Frame Style Trailers
0 reviews - Write a review

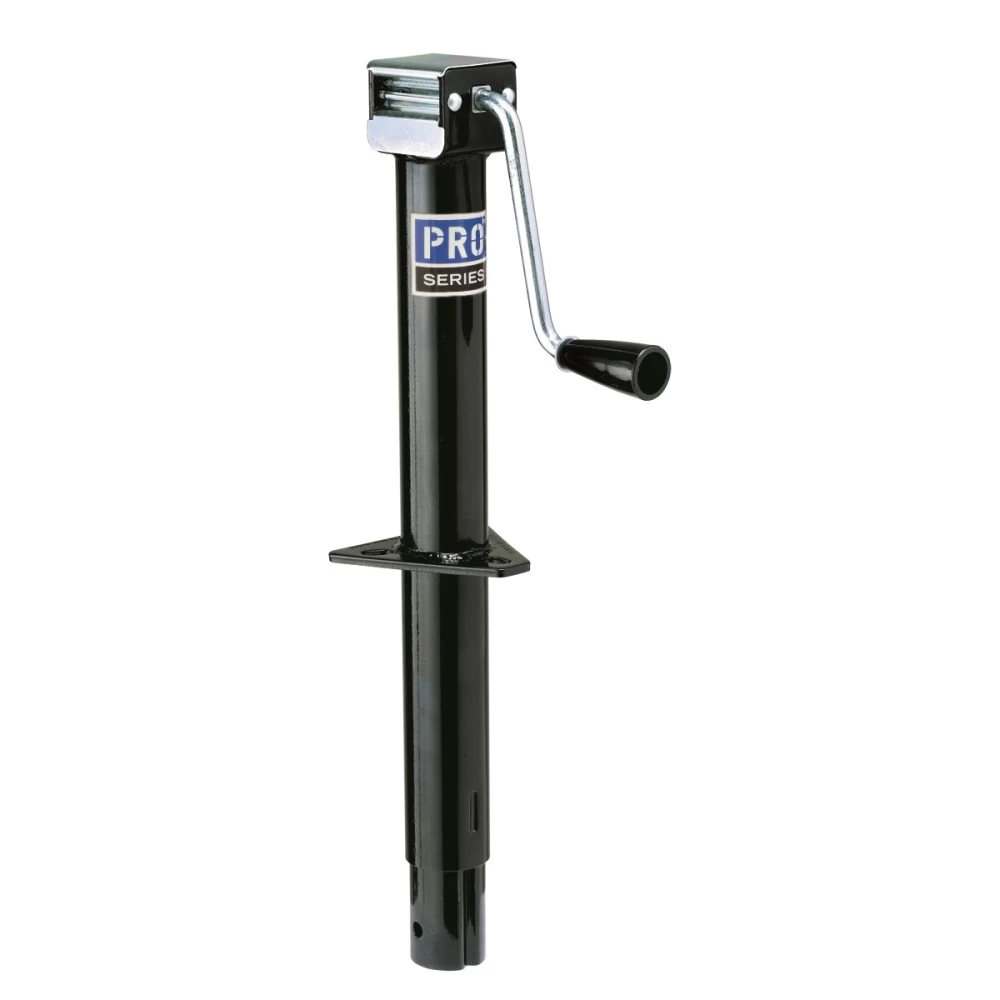

Pro Series Round 2,000 lbs. A-Frame Trailer Jack Sidewind 14" Lift w/ External Gearbox
$43.03
  • Stock: In Stock
  • Brand: Pro Series
  • Model: RV20000303
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 2,000 lbs.

  • Retracted Bracket Height: 9.00" from bracket to bottom

  • Extended Bracket Height: 23.00"

  • Travel/Lift: 14"

  • Clearance: 13.00" from bracket to top

  • Works with any standard A-Frame mount

  • Inner tube diameter: 2"

  • Outer tube diameter: 2-1/4"

  • Wheel or base sold separately

Specification
Jack Style A-Frame
Finish Black
Static Capacity 2000
Lift Capacity 2000
Lift Style Sidewind
Travel 14"
Retracted 9.00"
Extended 23.00"
Clearance 13.00"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel No
Foot Foot or Wheel Option
Jack Shape Round
Description Facts Front Facing Handle
