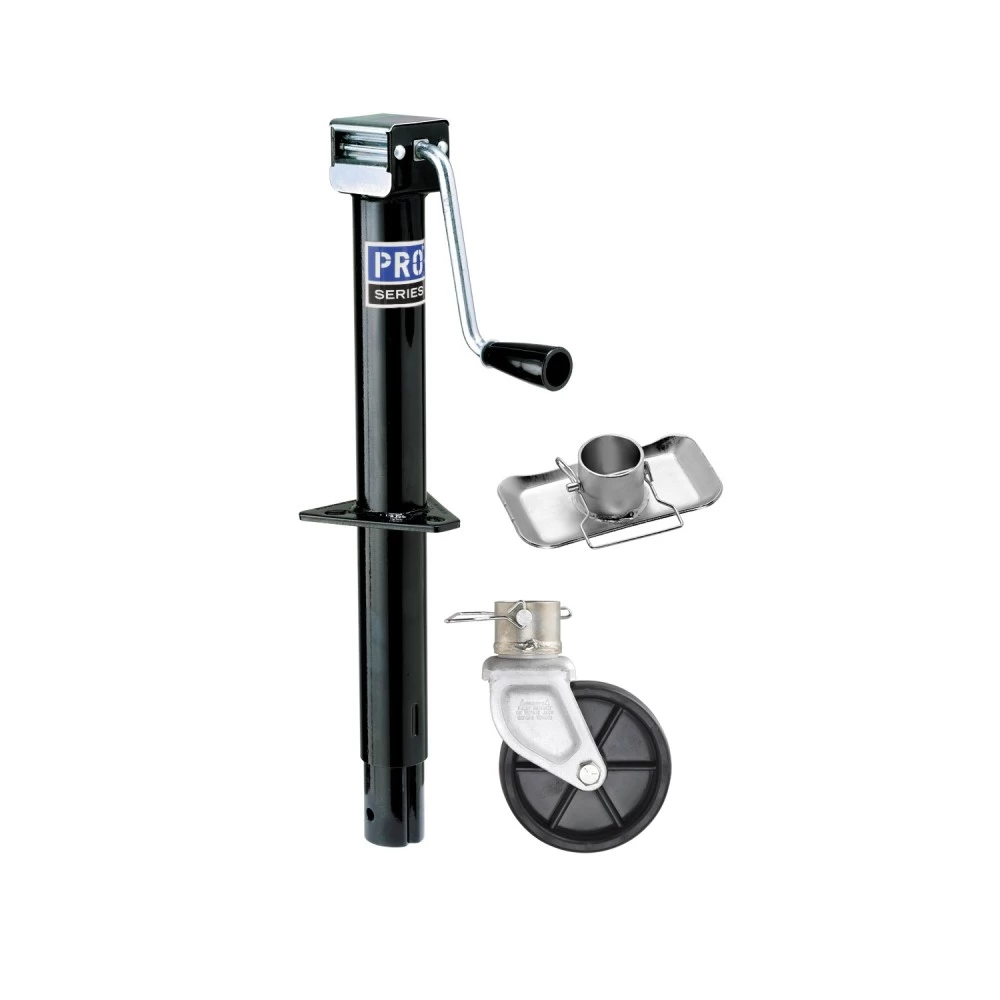

Pro Series Round 2,000 lbs. A-Frame Trailer Jack Sidewind 14" Lift w/ External Gearbox, 2" Footplate & 6" Poly Caster Wheel Combo

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

• Smooth, comfortable, ergonomic design

• Dependable vertical and side load capacity

• Proven reliability for long term use at rated loads

• Precision fitted parts for extra stability

• Black painted outer and inner tube

• Limited 1-year warranty

Specifications:

• Lift Capacity: 2,000 lbs.

• Retracted Bracket Height: 9.00" from bracket to bottom

• Extended Bracket Height: 23.00"

• Travel/Lift: 14"

• Clearance: 13.00" from bracket to top

• Works with any standard A-Frame mount

• Inner tube diameter: 2"

• Outer tube diameter: 2-1/4"

Footplate & Wheel Included

• Footplate Height: 2 1/10"
• Footplate Capacity: 5,000 lbs
• Footplate Finish: Zinc
• Wheel Height: 6"
• Wheel Materal: Poly
