Product Details
- Brand: Pro Series
- Model: EA20000303 1400750340
- Includes: 2K A-Frame Jack + Caster Wheel
Description
Get Expert Help

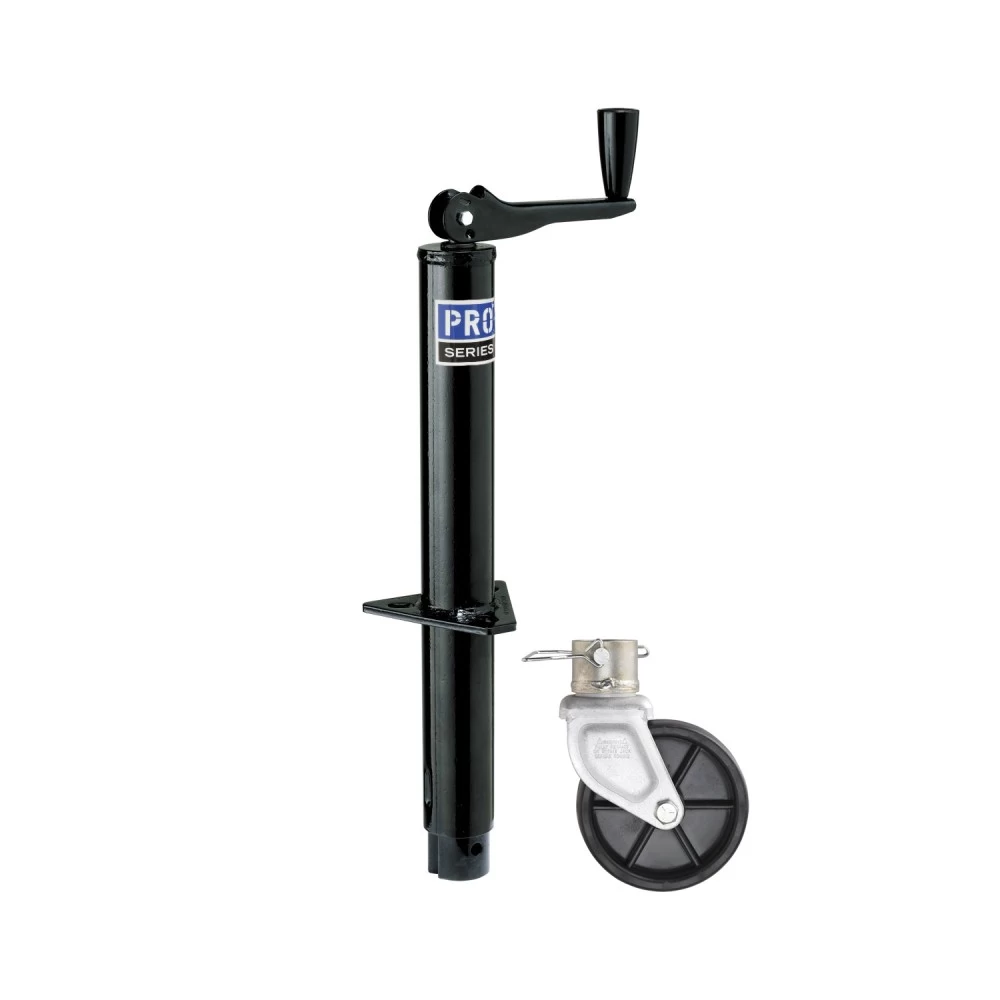

Pro Series Round 2,000 lbs. A-Frame Trailer Jack Topwind 14" Lift w/ 6" Poly Caster Wheel Install Notes
Installation Instructions for Tongue Jacks
Part Numbers:
- Not specified in the provided text.
Tools Required:
- Torque wrench (set to 25 ft-lbs)
Step-by-Step Instructions:
General Installation Guidelines:
- Confirm no interference from the tow vehicle, tongue, ground, or any other mounted accessories while stationary or in motion.
- Verify clearance for handle swing and swivel positions both before and after installation.
Bolt-On Rack Jack Installation:
- Place the gear housing on the tongue and insert the supplied bolts into the appropriate holes.
- Position the mounting bracket below the tongue with the flat surface against it.
- Secure using locknuts and torque to 25 ft-lbs.
Snap Ring/Bolt-Thru Installation:
- Snap Ring Models: Place the jack bracket over the mount and fully seat the snap ring in its groove.
- Bolt-Thru Models: Insert the jack bracket into the recessed opening, align the bushing, and tighten the locknut until minimal movement remains.
A-Plate Mounting Instructions:
- Use an AWS-certified welder for all welding.
- Align the jack and coupler, then weld using a 3/16" fillet weld.
- Secure the A-plate to the coupler with 3/8-16 Grade 5 bolts torqued to 15–20 ft-lbs.
- Weld the recommended support plate to the trailer frame using a 3/16" fillet weld.
Direct Mount Instructions:
- Place the jack at the desired location.
- Weld 1" in two locations on each side using a 3/16" fillet weld.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Remove the drop foot or caster before towing.
- Avoid exceeding the rated capacity marked on the product.
- Minimize side forces to prevent jack failure.
- Replace any worn or damaged parts before use.
Maintenance:
- Lubricate internal gears and bushings annually with automotive grease.
- Apply lightweight oil to handle units and moving parts.
- For marine use, flush the jack with fresh water and reapply lubricants.
Additional Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Coverage: The product includes a limited warranty covering defects in materials and workmanship.
- Exclusions: The warranty does not cover normal wear, misuse, overloading, or improper installation.
- For complete warranty details, download the full installation PDF.
