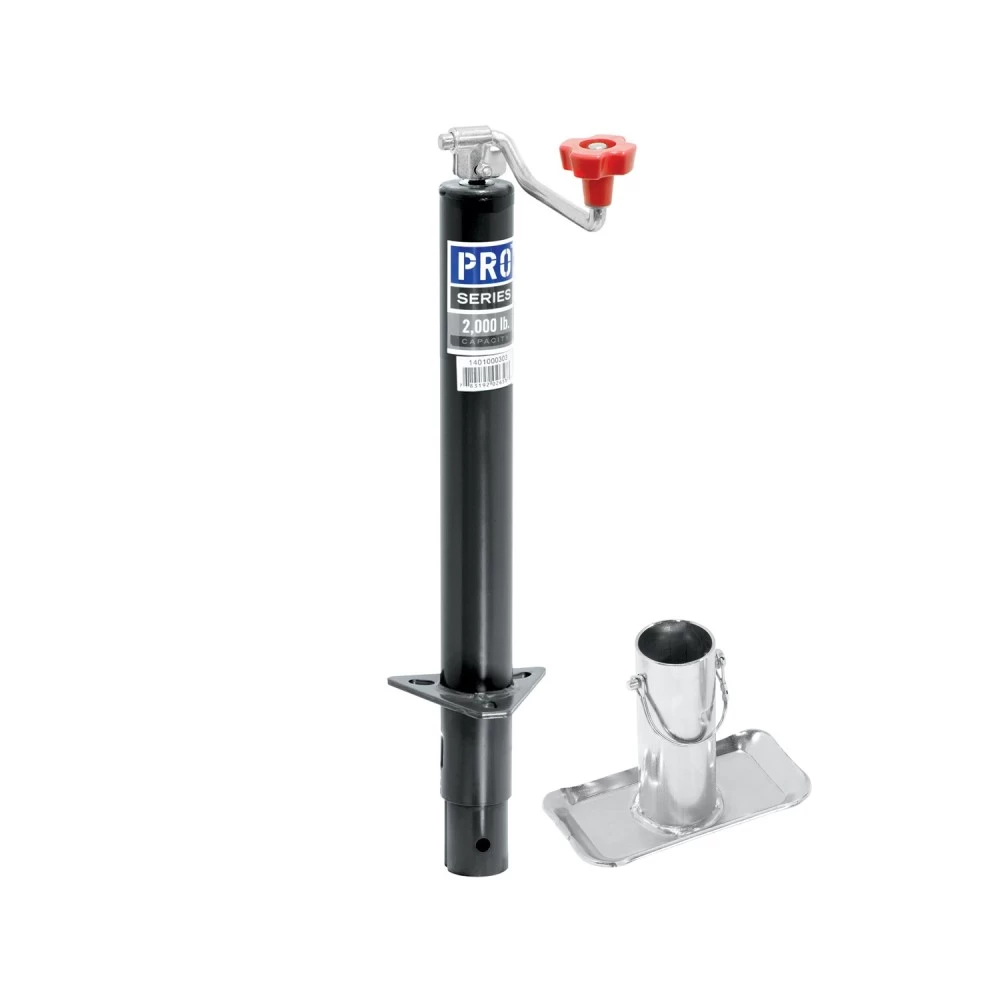

Pro Series Round 2,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 6" Extended Footplate

Pro Series Round 2,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 6" Extended Footplate
Pro Series Round 2,000 lbs. A-Frame Trailer Jack Topwind 15" Lift w/ 6" Extended Footplate
$72.41
  • Stock: In Stock
  • Brand: Pro Series
  • Model: 1401000303 18098

Applies to this product only

PRO SERIES round jacks are used by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. PRO SERIES jacks have been demonstrated to be reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Black painted outer and inner tube

  • Limited 1-year warranty



Specifications:

  • Lift Capacity: 2,000 lbs.

  • Retracted Bracket Height: 5.50" from bracket to bottom

  • Extended Bracket Height: 20.50"

  • Travel/Lift: 15"

  • Clearance: 16.00" from bracket to top

  • Works with any standard A-Frame mount

  • Inner tube diameter: 2"

  • Outer tube diameter: 2-1/4"

  • 6" Extended Footplate Included

Specification
Jack Style A-Frame
Finish Black
Static Capacity 2000
Lift Capacity 2000
Lift Style Topwind
Travel 15"
Retracted 5.50"
Extended 20.50"
Clearance 16.00"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel No
Foot Footplate
Jack Shape Round
